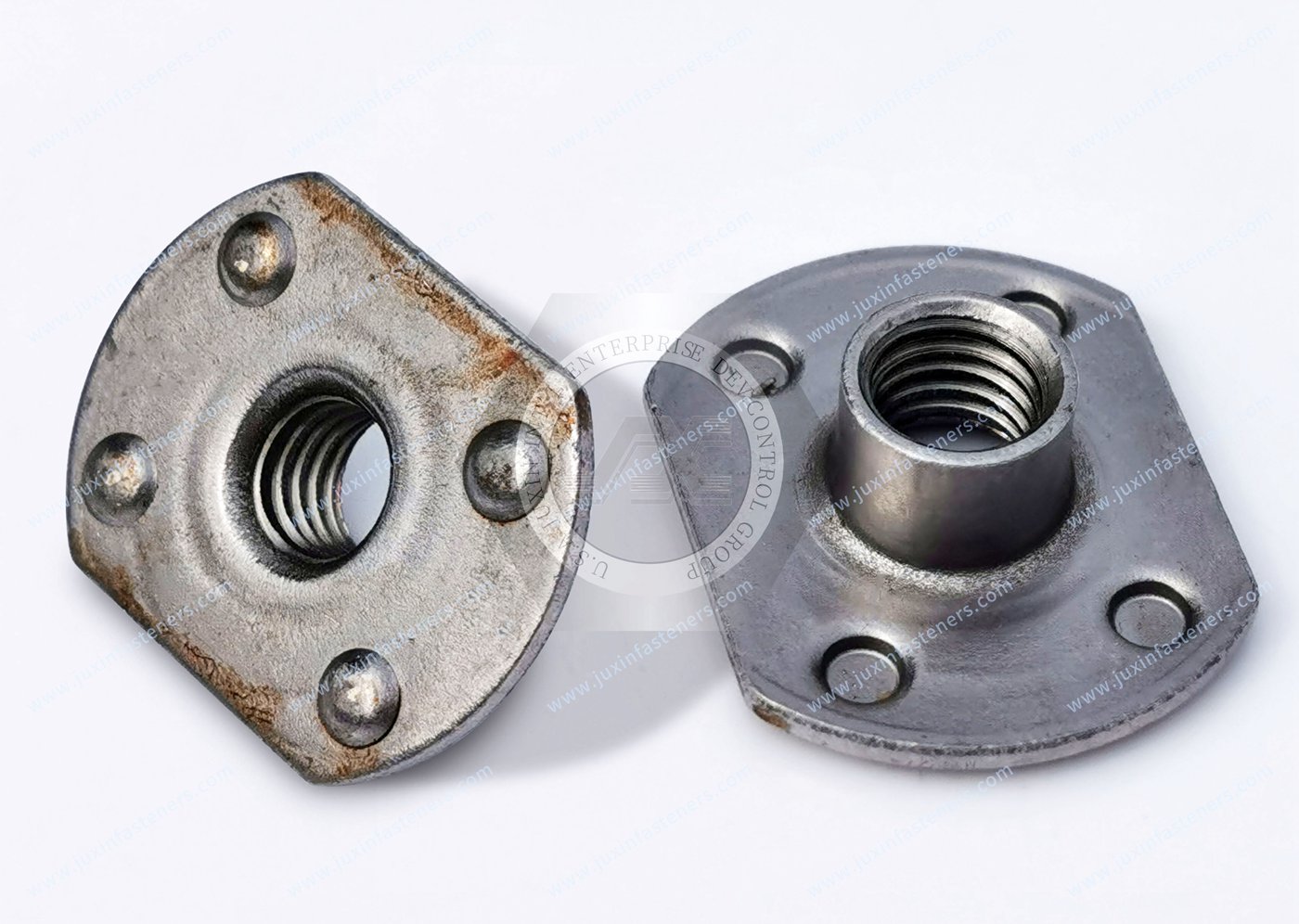

Name: Metric Steel Narrow-Base Weld Nuts(T-Style Weld Nuts)
Material: Carbon steel, Stainless steel
T-shaped welding nut material: Plain, blackened, and galvanized are generally ordinary carbon steel nuts, and T-shaped welding nuts generally have performance grades. Stainless steel A2-70.
Insert one tooth of the stop washer into the notch of the nut. T-shaped welded nuts generally have 4 notches, and the notches are reserved for the washer to prevent the nut from loosening after a period of time. The usual practice is to tighten the nut so that the nut cannot be loosened. Nut wrenching groove T-type weld nut stop washer has teeth inside and outside, holes or grooves should be made on the external thread matched with the T-type weld nut to accommodate the inner teeth of the washer, and the T-type weld nut will be tightened in place.
1. T-shaped welding nuts, including a cylinder with a T-shaped head, the inner hole of the cylinder is processed with internal threads, and the characteristic is that: the outer end surface of the T-shaped head is provided with a plurality of spherical point protrusions.
2. The T-shaped weld nut according to claim 1, is characterized in that: the height of the spherical point protrusion is 1.5-2mm.
3. The T-shaped welding nut according to claim 1, is characterized in that: the spherical point protrusion is formed by stamping the inner end surface of the T-shaped head. The T-shaped welding nut includes a cylinder with a T-shaped head. The inner hole of the cylindrical body is processed with internal threads. It is characterized in that: the outer end surface of the T-shaped head is provided with a plurality of spherical point protrusions. The height of the spherical dot bumps is 1.5-2mm. For the T-shaped welding nut provided by the utility model, the outer end surface of the T-shaped head is reasonably provided with a plurality of spherical point protrusions. When the T-shaped welding nut is close to the automobile door steel plate before pressure welding, only the spherical point of the T-shaped welding nut protrusion is in contact with the steel plate of the car door so that after pressure welding, the quality and strength of the welding can be ensured. T-shaped welding nuts are fasteners with internal threads and are used in conjunction with screw rods. It has a wide range of uses, high strength, high-temperature resistance, and is not easy to deform. It is often used in some products, especially automobiles and other products.
Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 147-148Page See more product details.
