Square Weld Nut (GB13680/Q371 Welded Square Nut (Type A)

Home - Products - Weld Nuts - Square Weld Nut (GB13680/Q371 Welded Square Nut (Type A)
6468436703cc0

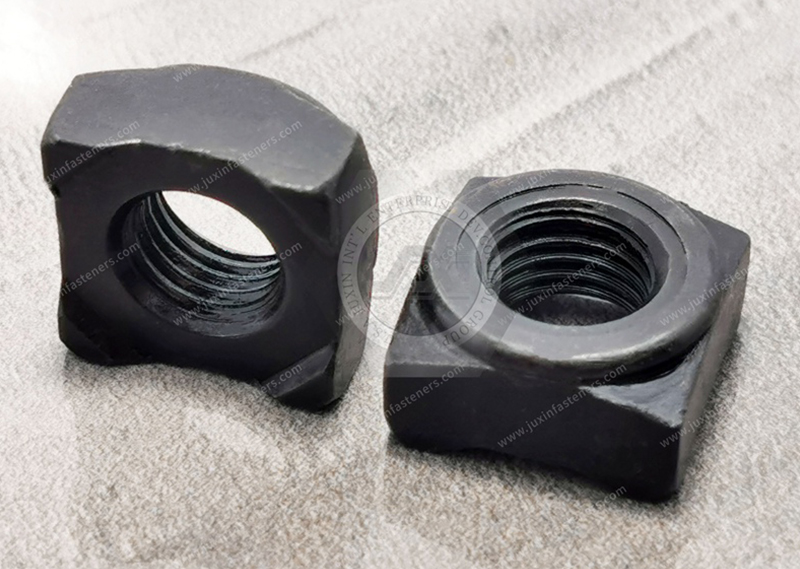

Square Weld Nut (GB13680/Q371 Welded Square Nut (Type A)

Square Projection Weld Nut

Sq Proj Weld Nuts

Square projection weld nuts are equipped with four large, uniform weld projections that ensure exceptionally strong, reliable welds. The four projections help you achieve a strong, reliable weld with proper seating. They are available in piloted or unpiloted configurations, in a variety of dimensions and thread sizes, and have long been a favorite of farm equipment and automotive manufacturers.

Material: ML08AL

Standard: GB /T 13680, Q 371, Q 371B, DIN 928

Inquire Now Next Products

Product Specification

Product name: GB13680/Q371 welded square nut（Type A )

Specifications: M5 M6 M8 M10 M12 M14 M16 7/16 fine tooth standard thread in stock

Surface: natural color anti-rust

Material: ML08AL

Levels: 6, 8, 10 class

Square weld nuts have more weld points than hex weld nuts for a stronger hold. Weld them on flat uncoated steel surfaces. All have a collar pilot that assists alignment and prevents welding spatter from getting into threads. Nuts that meet ASME B1.1 comply with specifications for dimensional standards.

At Juxin Fasteners, our square weld nuts are available in numerous materials and thread sizes (inch and metric). Our weld nuts provide an extremely strong hold that remains permanently attached to the component, once installed.

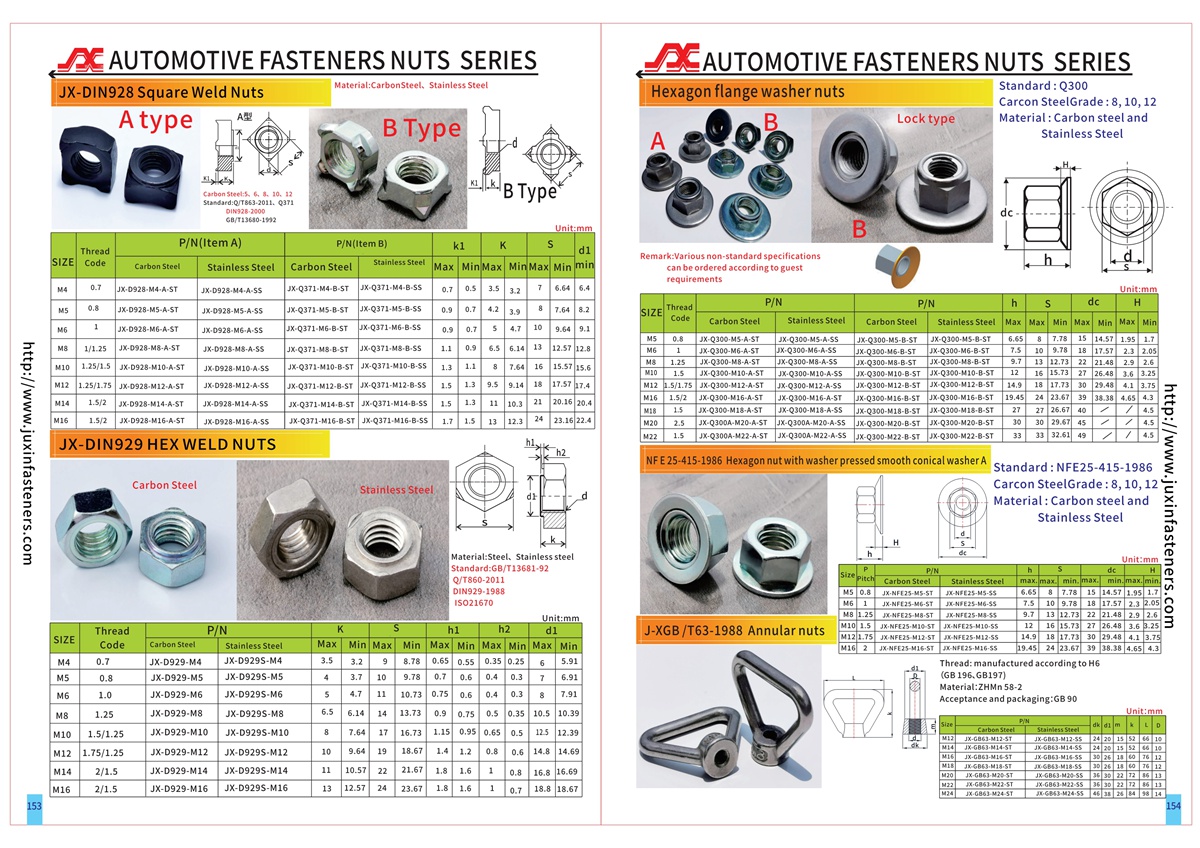

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 153-154 Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

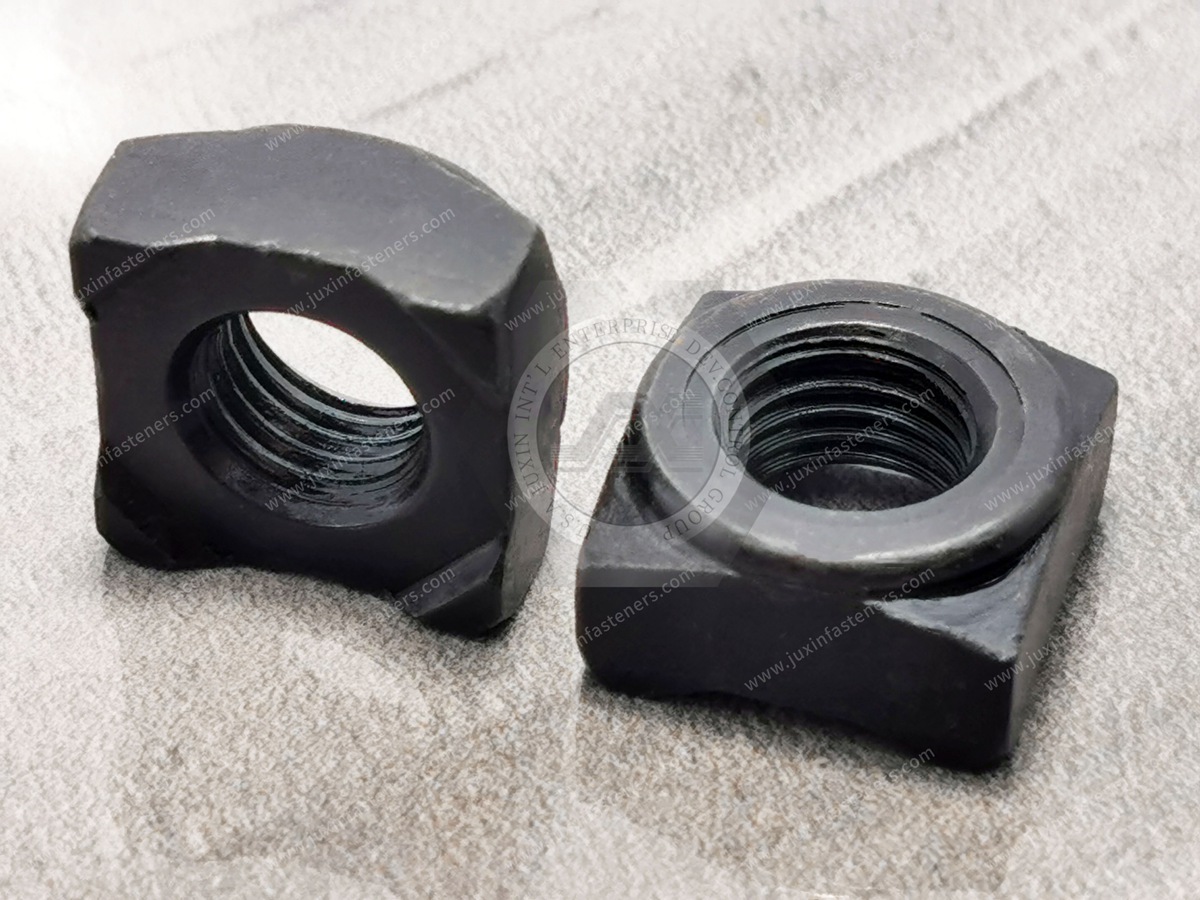

Square Weld Nut (GB13680/Q371 Welded Square Nut (Type A)


Square Weld Nut (GB13680/Q371 Welded Square Nut (Type A)
