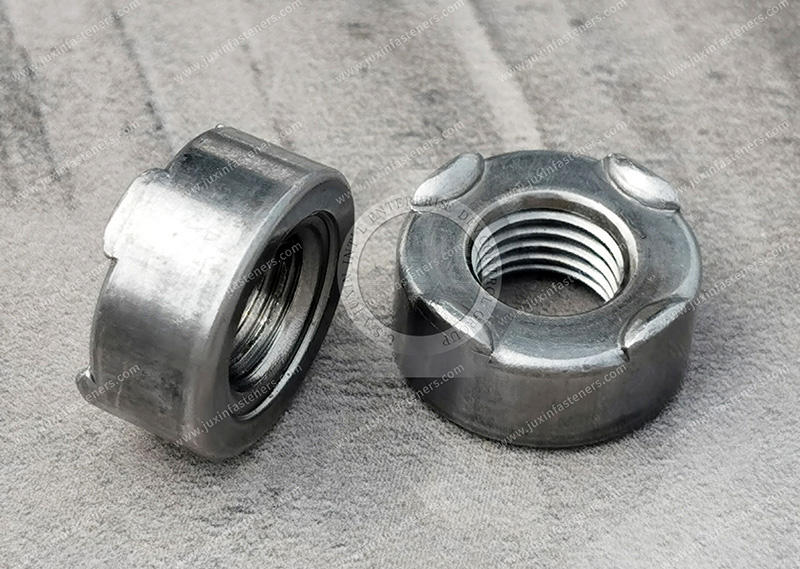

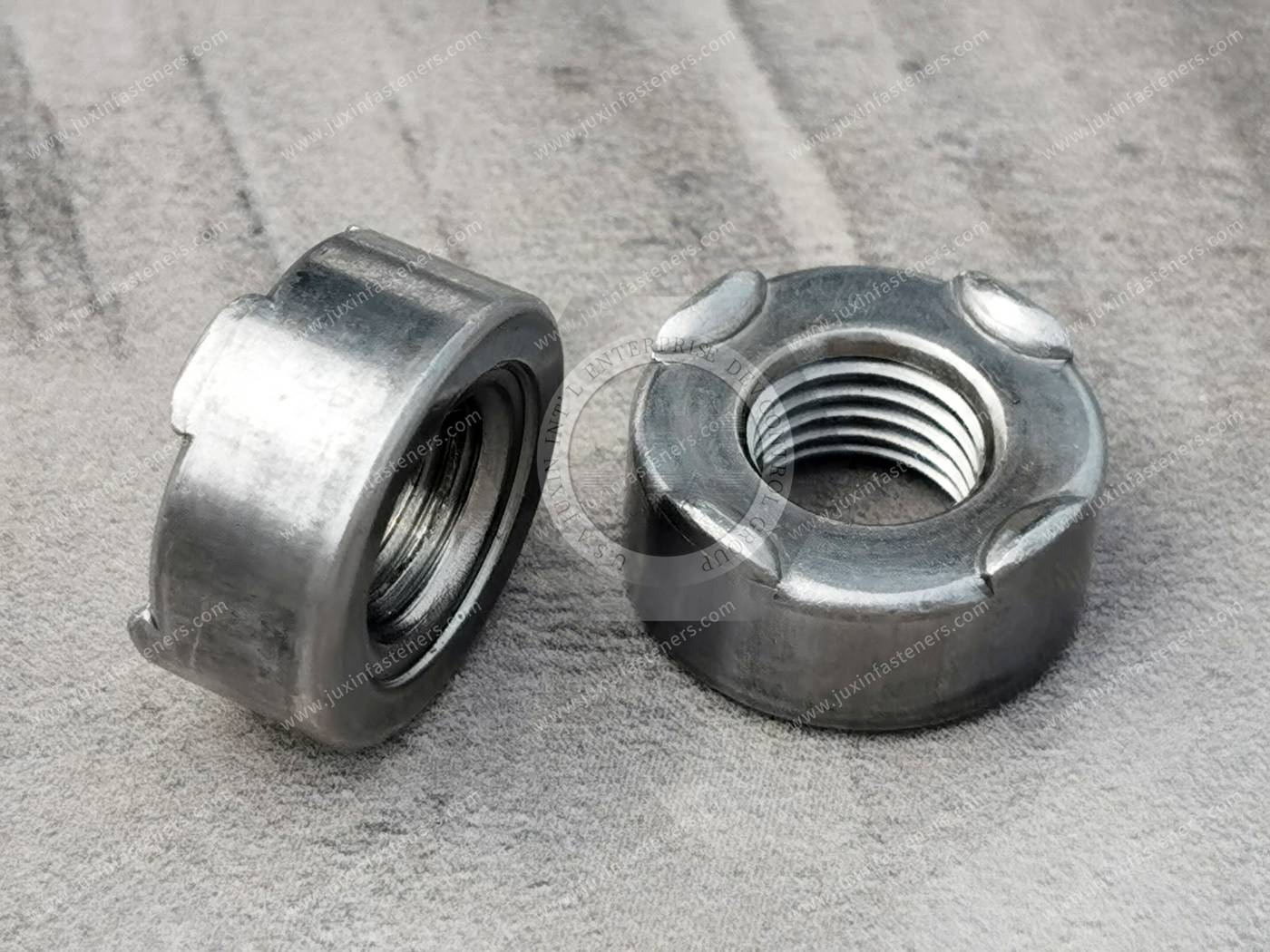

Name: Round-Base Weld Nuts with Projections
Material: Carbon steel
Size: #8-32, 10-32, 1/4-20", 5/16-18, 3/8-16, 1/2-13, M4, M5, M6, M8, M10, M12.
Projections on the base concentrate the weld and provide room for heat to dissipate. Weld them to flat uncoated steel surfaces for a strong permanent hold. The round base acts as a flange to distribute the load. A long barrel ensures secure thread engagement.
Typical properties of the weld nut:
Material
Carbon steel or 303 series stainless steel.
Finish
The carbon steel weld nut has a light oil coating (with an optional copper flash). The 303 series stainless steel weld nut is finished per the ASTM A380 passivation standard.
Thread
Class 2B, MIL-S-7742; (6H ISP Metric). Available thread sizes: inches; #4-40 through #420.
Metric
M3 x 0.5 through M6 x 1.0.
Application notes:
Weld nuts provide strong load-bearing threads in sheet metal that is too thin to tap. They incorporate three-point projections to facilitate quick and easy welding. The weld nut’s alignment collar orients the nut and works as a barrier to prevent weld-splatter from entering the thread area. These weld nuts will self-align onto any standard hole size and are dimensionally identical to applicable industry standards.
The choice of the type of industrial fastener to incorporate into your design will be a significant milestone in your design process. The mechanical integrity of your finished product will largely depend on selecting a fastener that is best suited for that product. Juxin Fasteners will collaborate with you to ensure that there is no guesswork in the selection process.
Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 147-148Page See more product details.
