Hexagon-Head Studs JX-NFHS

Home - Products - Self-Clinching Fasteners for Sheet Metal - Studs for Sheet Metal - Hexagon-Head Studs JX-NFHS
681dda2a9baa4

Hexagon-Head Studs JX-NFHS

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Inquire Now Next Products

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 35-36Page See more product details.


The basic element of the self-clinching studs is they provide a strong reusable thread in thin panels. With easy installation, these self-clinchingfasteners can be clinched into thin metal panels with a very low cost of installation. Ideal for a wide range of application uses,self-clinching studs can withstand heavy loads and high torque levels.J-X Fastener’s inventory of self-clinching studs isavailable in a variety ofstyles and materials to solve most design applications.Self-clinching studs are installed by placing them in properly sized holes in the sheets and squeezing into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove – creating a flushhead assembly and securely locking the stud into the sheet with high torque-out and pushout resistances.NFH (flush-head) studs are available in aluminum, steel, or stainless steel. They are also available unthreaded on special order.Thread size M3 to M6.


Hexagon-head in designated minimum sheet thickness or greater.


Type JX-NFH is recommended for use in steel or aluminum sheets HRB (Rockwell “B” scale) 80 or less and HB (Hardness Brinell) 150 or less.

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

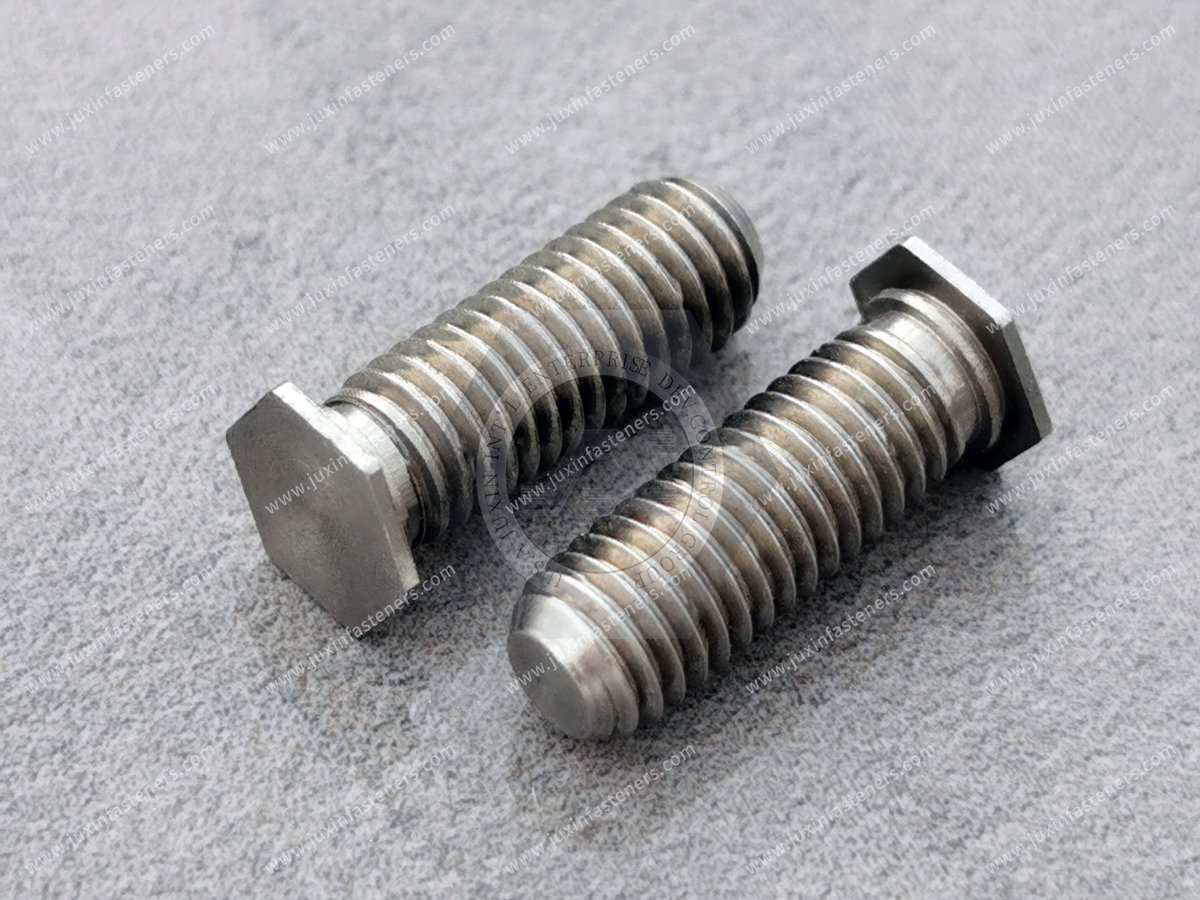

Hexagon-Head Studs JX-NFHS


Hexagon-Head Studs JX-NFHS
