Concealed Head Studs – Types JX-CFHA, JX-CFHC, JX-CHA, JX-CHC

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

The fastener head is locked securely in a blind, milled hole and can handle substantial loads. The concealed-head feature allows the side of the sheet opposite the installation to remain smooth.

Sheet preparation only requires a milled blind hole to the recommended minimum depth. Center-cutting end mills for hole preparation are available from Juxin Fasteners. Installing the concealed-head studs and standoffs is simple using a hollow anvil and solid punch. Place the fastener's head in the hole and insert using any standard press. Displaced sheet metal flows smoothly around the head into the undercut.


Inquire Now Next Products

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 33-34Page See more product details.


Installed into a blind milled hole where surface opposite stud must remain unmarried, Thread sizes #4 to #10 and M8 to M5.These studs ensure permanent mounting in metal sheets as thin as .062 in. The fastener head is locked securely in a blind, milled hole and is able to handle substantial loads. The concealed-head feature allows the side of the sheet opposite installation to remain smooth. Sheet preparation only requires a milled blind hole to the recommended minimum depth. Center-cutting end mills for hole preparation are available from Juxin. Installation of the concealed-head studs and standoffs is simple by using a hollow anvil and solid punch. Place the head of the fastener in the hole and insert using any standard press.

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

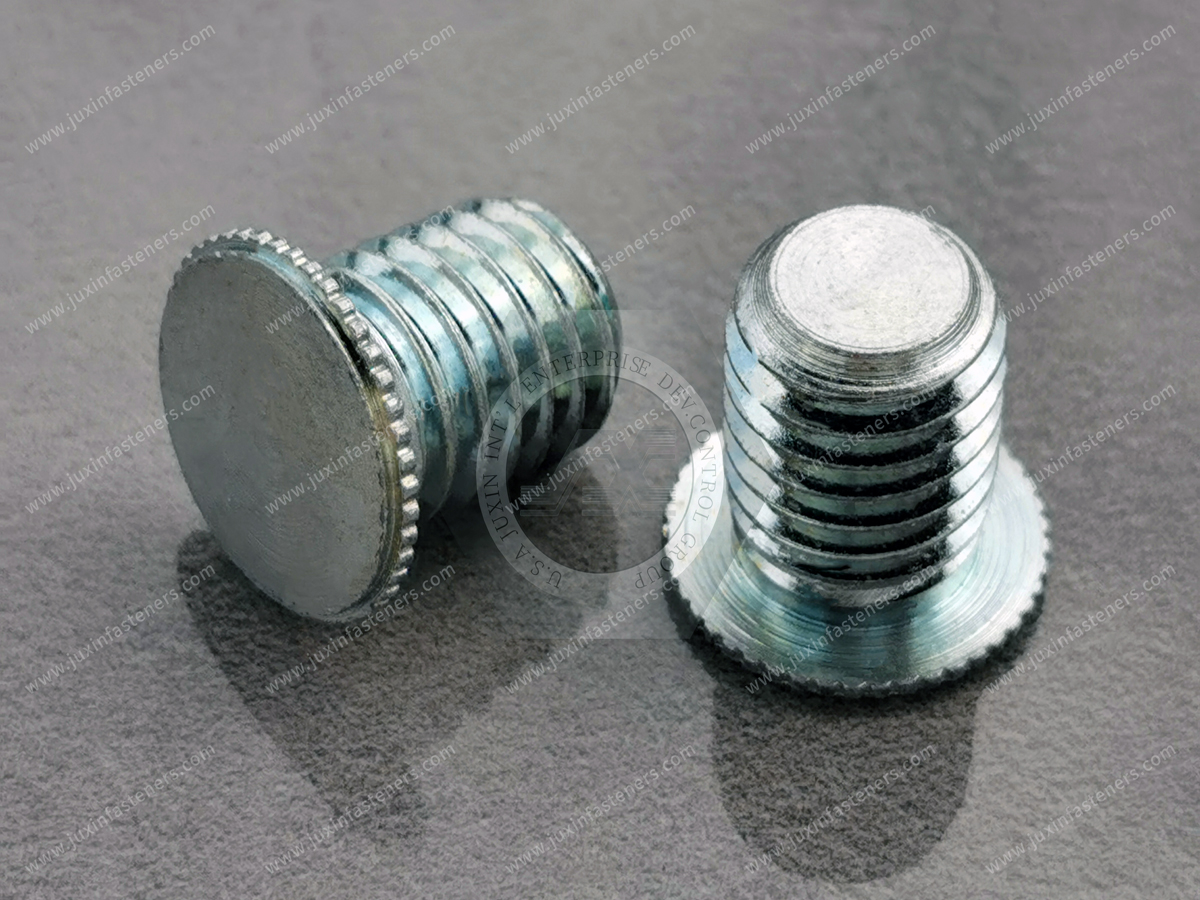

Concealed Head Studs – Types JX-CFHA, JX-CFHC, JX-CHA, JX-CHC
