Thin Head Open end Half hexagon inside and outside body blind rivet nuts --Open end

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - Steel Blind Rivet Nuts - Thin Head Open end Half hexagon inside and outside body blind rivet nuts --Open end
675c5255b4aff

Thin Head Open end Half hexagon inside and outside body blind rivet nuts --Open end

Name: Thin Head Open Part Hexagonal Body Blind Rivet Nuts—Open End

Size: M4、M5、M6、M8、M10

Material: Steel

Surface treatment: ROHS Blue Zinc

Grip Range: 0.5-3.5mm

 M8 steel, thin sheet head, part hexagon body rivet nuts/rivnuts/nutserts. She finished in CR3 clear plating (RoHS compliant).

Hole size requirement: 10.6mm A/F (+0.1, -0.0)

Grip range (material thickness): 0.9mm ~ 3.3mm

Flange thickness: 0.5mm

Flange diameter: 11.5mm A/F

Length (under head): 15.5mm


Inquire Now Next Products

Product Specification

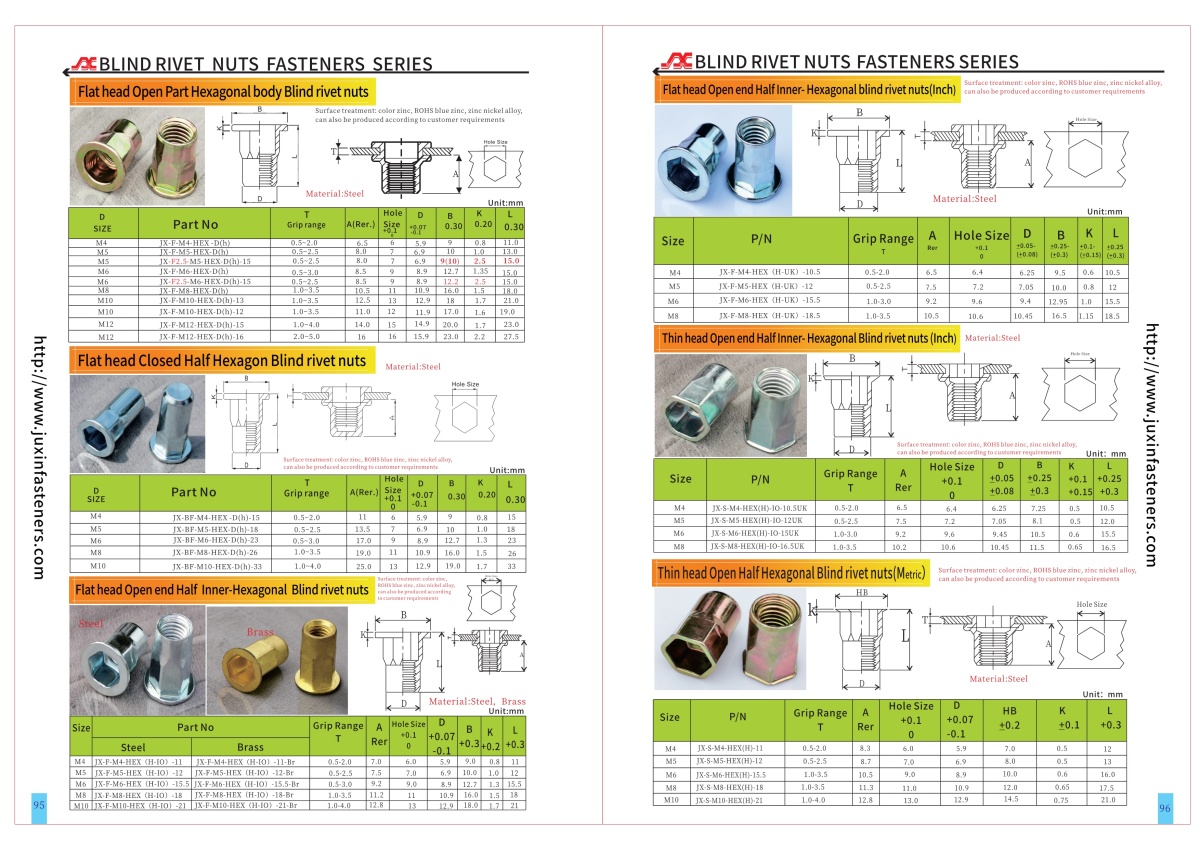

Size Can also be According to the Customer's requirement. and please check the detailed specification sheet PDF, CAD, See more product details, PDF 95-96 Page.

ProductPackaging

The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request

ProductPictures

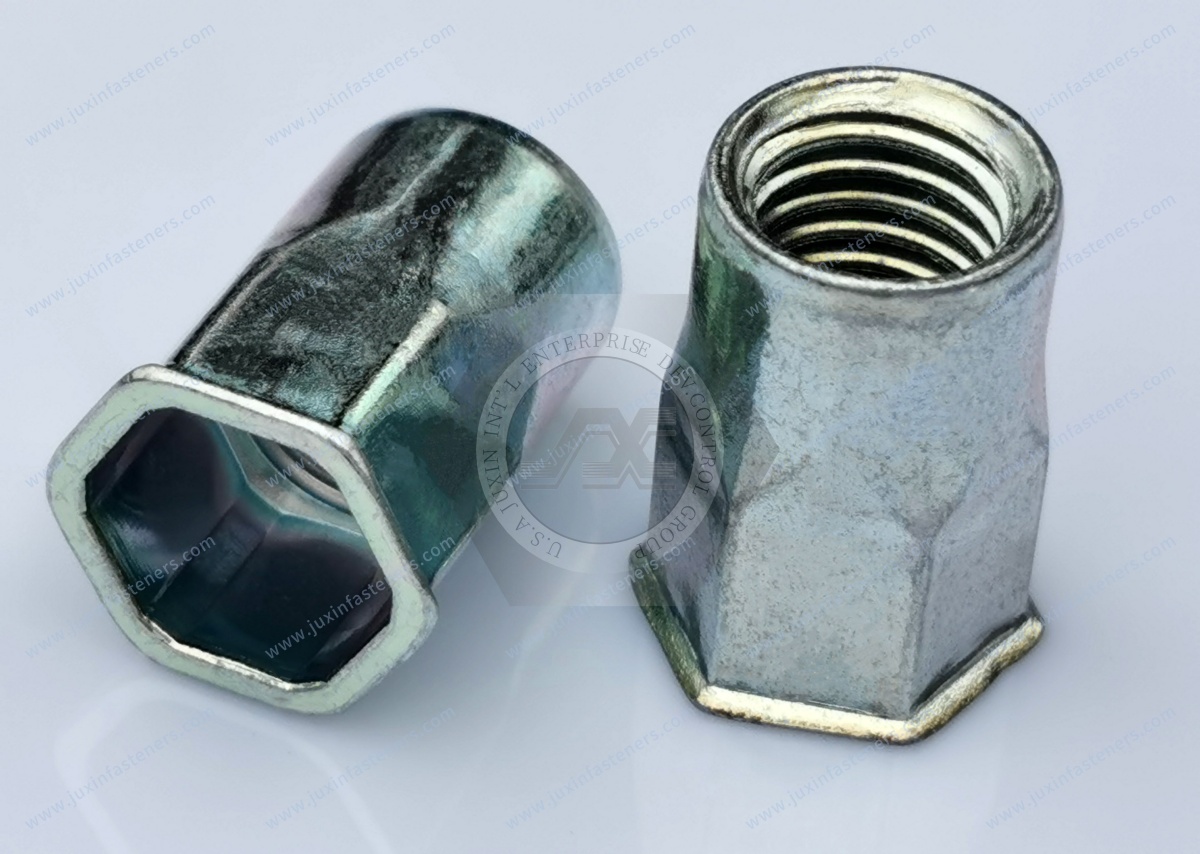

Thin Head Open end Half hexagon inside and outside body blind rivet nuts --Open end


Thin Head Open end Half hexagon inside and outside body blind rivet nuts --Open end
