The high-strength hexagonal threaded insert provides a clamp force comparable to weld and clinch nuts in high-torque applications.
The hexagonal shape and large flange give the High Strength Hexagon blind rivet nuts exceptional torque-to-turn strength in thin sheet materials while safeguarding against overtightening, which can lead to thread stripping and the need for expensive rework. If excessive torque is applied, the screw shank fails before the insert as protection from overtightening.
Installed and retrofitted with standard hand tools and multi-head and auto-feed robotic systems, the high-strength hexagonal blind rivet nuts are used in assembly materials such as tubular steel, hydroformed parts, magnesium castings, and aluminum extrusions.
Fast Facts:
Exceptional torque capability.
High-speed assembly.
Provides high-strength threads in thin materials starting at 0.5mm.
It increased thread strength.
Safeguard design avoids overtightening problems such as thread stripping.
Assembly applications include tubular steel, hydroformed parts, magnesium castings, and aluminum extrusions.
Specifications:
Sizes: M5,M6, M8, M10 and M12
Head forms: Large flange
Shape: Hexagon
Material: Steel Zinc plated to and clear passivated to achieve 240 hours of resistance to red corrosion (ASTM B117). Hexavalent Chromium-free. For assistance with hexagonal hole production, see our tool. The tool allows customers to benefit from the non-rotational properties of hexagonal inserts compared with round inserts. This is achieved by drilling a round hole, inserting the tool, and forming a hex hole.

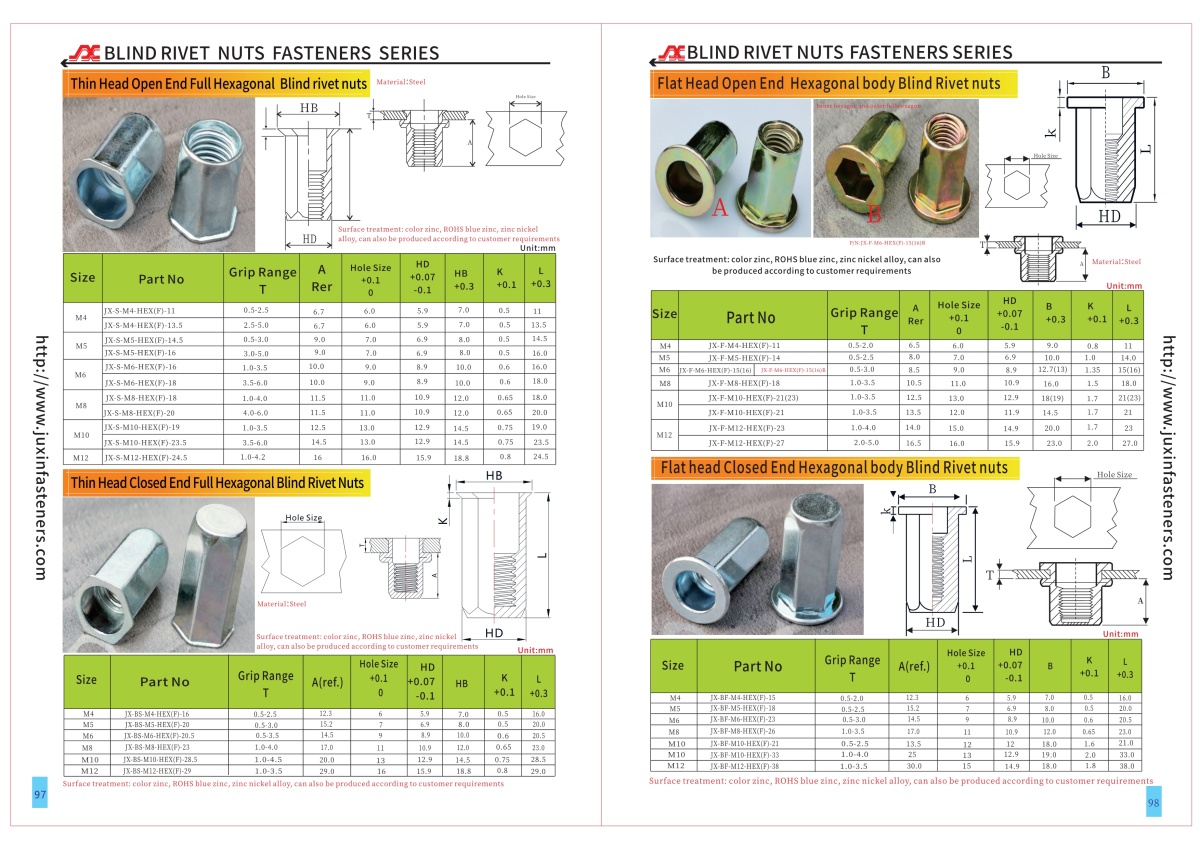

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 97-98 Page
