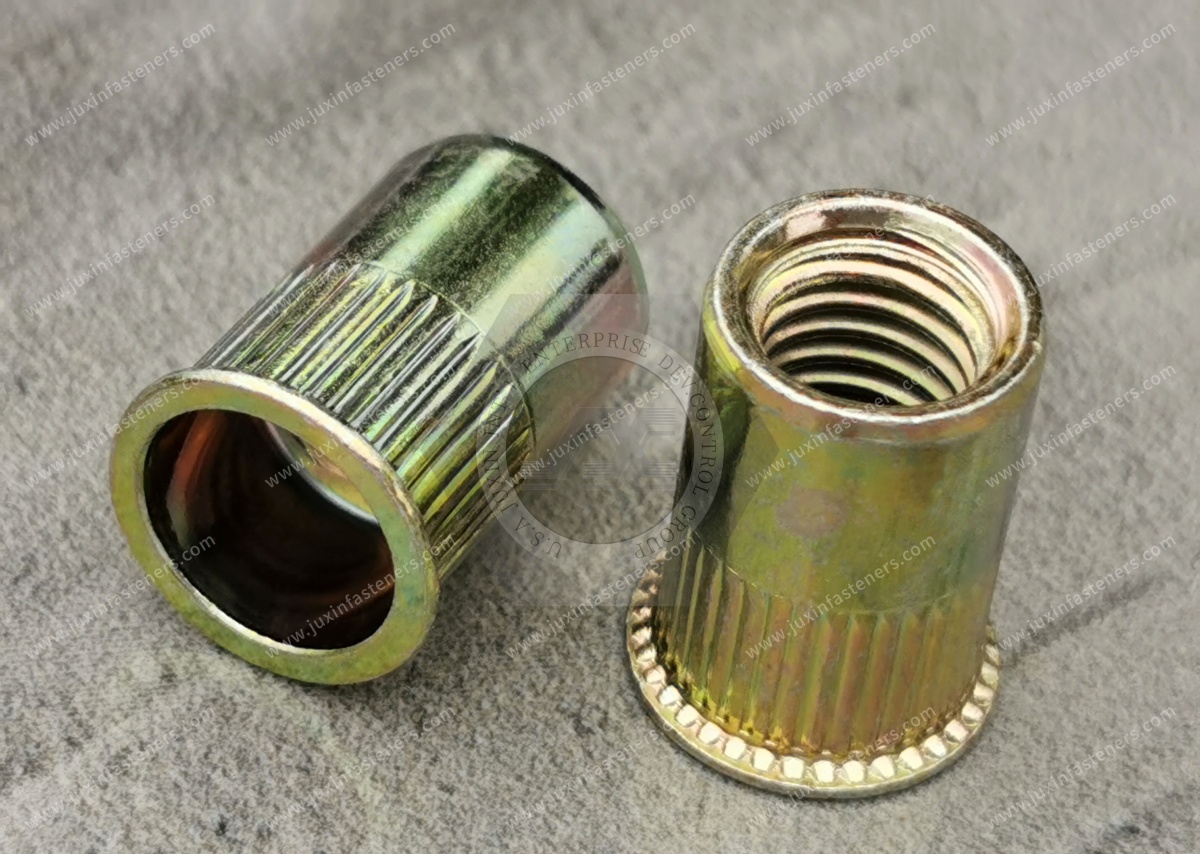

The blind rivet nuts threaded insert provides load-bearing threads in sheet materials as thin as 0.25mm (0.01").
The splined body of the Juxin fasteners improves torque-to-turn resistance in softer materials by up to 50% compared to plain-body ins. It improves electrical continuity in sheet metal fixings.
Jufasteners' frs' precision design allows for installation in pre-coated or post-painted applications without damaging the surface. Various platings are available to increase corrosion resistance.
Developed for blind assembly, Juxin fasteners can be used with hand tools, pneumatic tools, and fully automated machines to suit various assembly methods.
Fast Facts:
It can be used in fragile sheet materials from 0.25mm (0.01").
Blind hole, one-sided installation capability.
The double-diameter body and lead-in chamfer provide easy insertion into the hole.
Provide a female thread-in application.
Clamps two or more sheets of material together within the grip range.
The low-profile version allows the near-flush fit to the application.
The large-flange version provides a more excellent load-bearing surface. Reinforces hole to prevent push-out.
The large-flange version can be used as a spacer and supplied with an underhead seal.
For hard metric hole sizes.
Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.
Specifications:
Thread Sizes: M3-M12
Material: Steel, stainless steel
Head forms: Low profile and large flange
Body: With or without splines
Hole Size: Metric

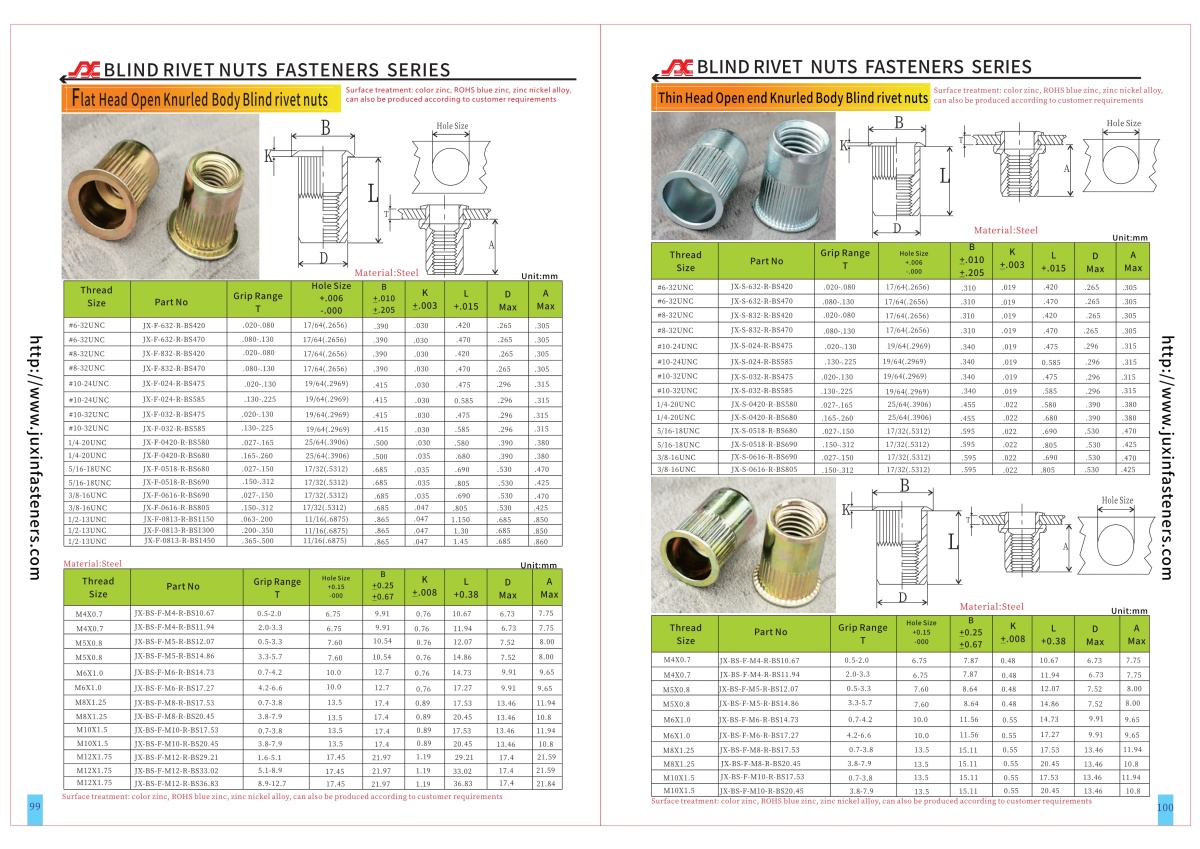

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 99-100 Page
