Thru-Hole Threaded Standoffs for Installation into Stainless Steel - Type JX-SOO, JX-SOOS

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.


Self-clinching standoffs provide a solution when design engineers need to space panels and components in their metal enclosures. They are used to stack parts or keep components a defined distance from the panel in which they are installed. Juxin Fastener’s clinch standoffs are available in a blind or through thread to meet application requirements. Use a standoff where the design calls for the standoff to be installed through the exterior of the enclosure. Use a through-thread (also called a thru-hole) clinch standoff to create a flush outer appearance.


Inquire Now Next Products

Product Specification

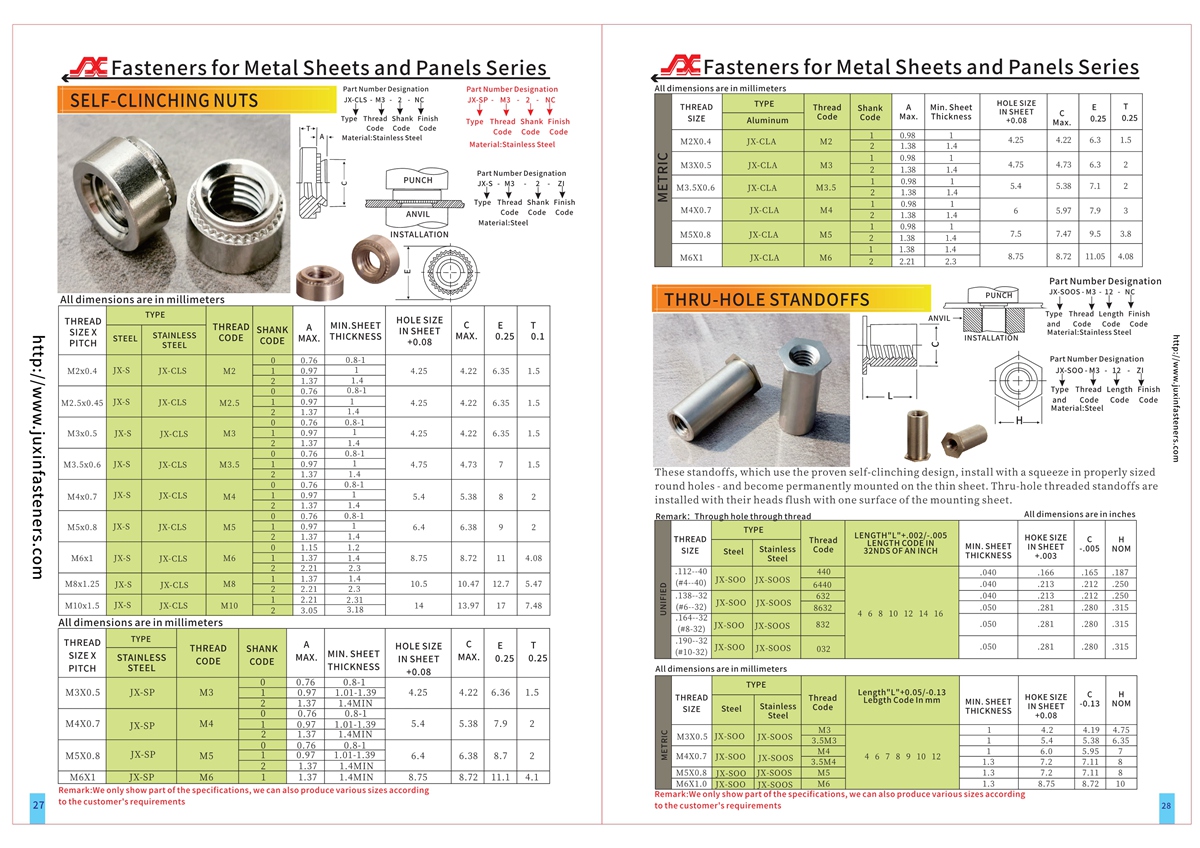

Size can also be according to the customer's requirement. Please check the detailed specification sheet details: PDF, CAD, 27- 28 Pages. See more product details.


These self-clinching standoffs have thru-hole threads, Thread sizes #4 to #10, and M3 to M6. Also available unthread on particular order. These standoffs, which use the proven self-clinching design, are installed with a squeeze in properly sized round holes - and become permanently mounted on the thin sheet. Thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.

Self-clinching standoffs provide a solution when design engineers need to space panels and components in their metal enclosures. They are used to stack parts or keep components a defined distance from the panel in which they are installed. Juxin Fastener's clinch standoffs are available in a blind or through thread to meet application requirements. Use a standoff where the design calls for the standoff to be installed through the exterior of the enclosure. Use a through-thread (also called a thru-hole) clinch standoff to create a flush outer appearance.

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

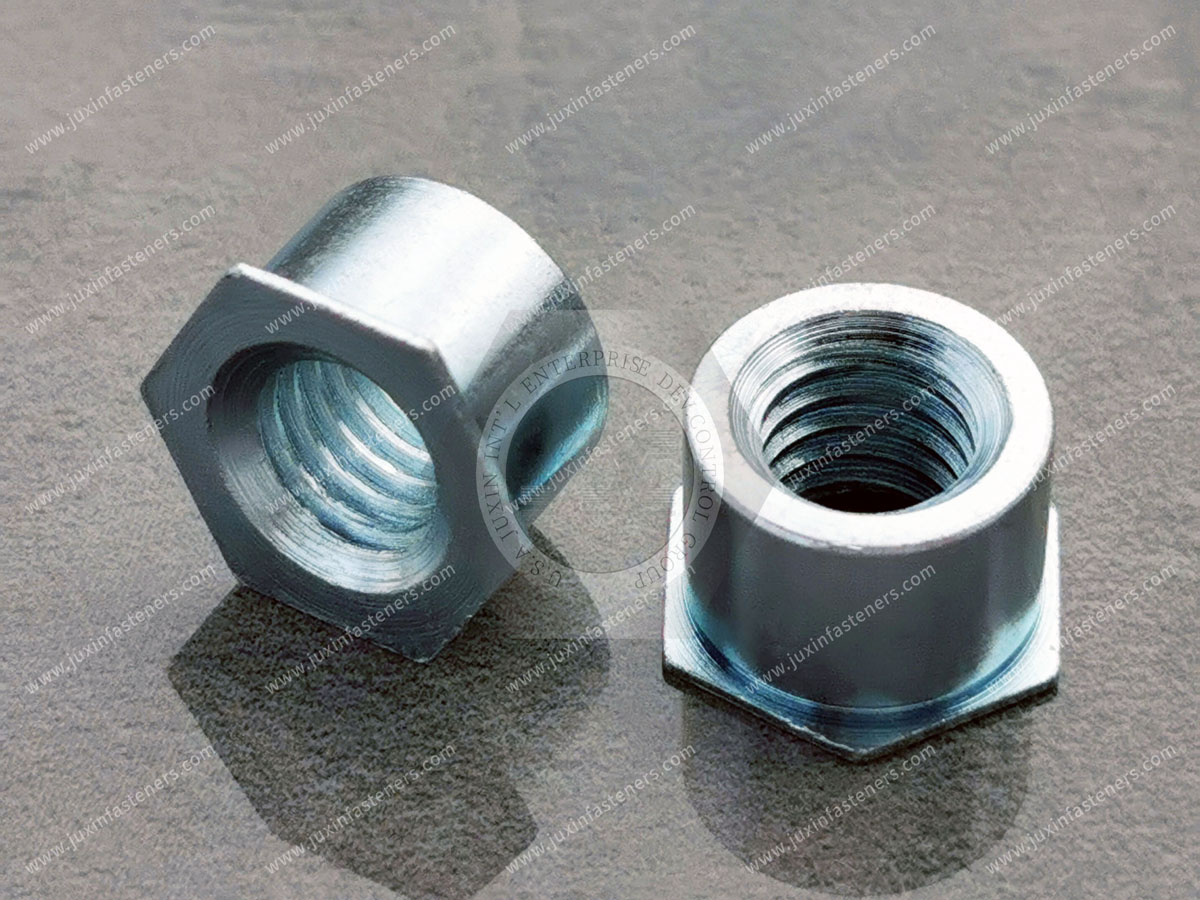

Thru-Hole Threaded Standoffs for Installation into Stainless Steel - Type JX-SOO, JX-SOOS


Thru-Hole Threaded Standoffs for Installation into Stainless Steel - Type JX-SOO, JX-SOOS

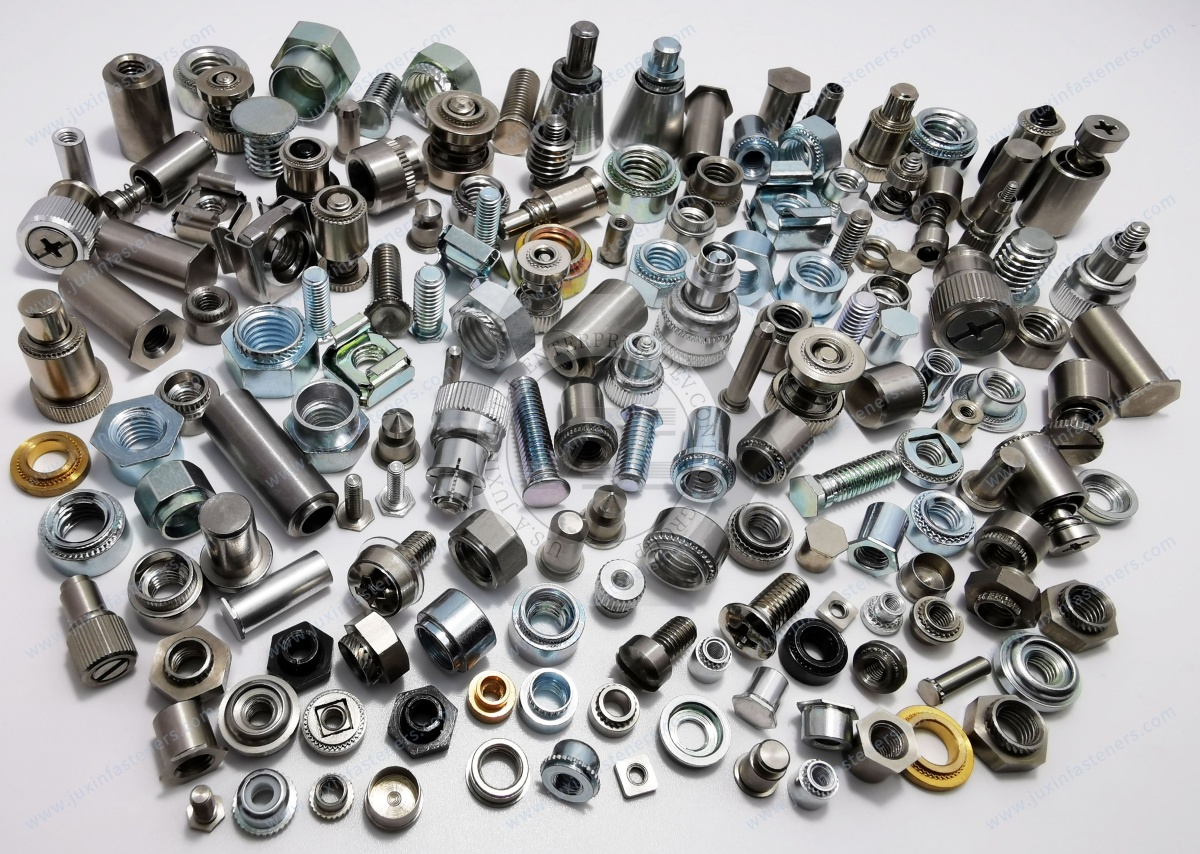

Thru-Hole Threaded Standoffs for Installation into Stainless Steel - Type JX-SOO, JX-SOOS
