Parallel Pins,Of Unhardened Steel And Austenitic Stainless Steel

Home - Products - Security Fasteners - Parallel Pins,Of Unhardened Steel And Austenitic Stainless Steel
64dd8edf5aa3b

Parallel Pins,Of Unhardened Steel And Austenitic Stainless Steel

Material: steel, austenitic stainless steel

Hardness: Hardness 125~245 HV30, A1 (ISO 3506-1) Hardness 210~280 HV30

Standard: ISO 2338, ISO 8734, DIN 7, DIN 6325, DIN EN ISO 8734, DIN EN ISO 2338. ASME B 18.8.2 - 2020, Q 521, ASME B 18.8.2, EN 22338, ANSI/ASME B 18.8.5M

Inquire Now Next Products

Product Specification

Material: steel, austenitic stainless steel

Hardness: Hardness 125~245 HV30, A1 (ISO 3506-1) Hardness 210~280 HV30

Surface finish: Plain, i.e. pins to be supplied in natural finish treated with a protective lubricant, unless otherwise specified by agreement between customer and supplier. Preferred coatings are black oxide， phosphate coating, or zinc plating with chromate conversion coating ( see ISO 9717 and ISO 4042 ). Other coatings as agreed between customer and supplier. All tolerances shall apply prior to the application of a plating or coating.Surface roughness: Tolerance m6: Ra≤0.8 µm.

Tolerance h8: Ra≤1.6 µm.Plain, i.e. pins to be supplied in natural finish.


Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 3-4Page See more product details.

ProductPackaging

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8CM and pallet size: 215*100*90CM, or as your request.

ProductPictures

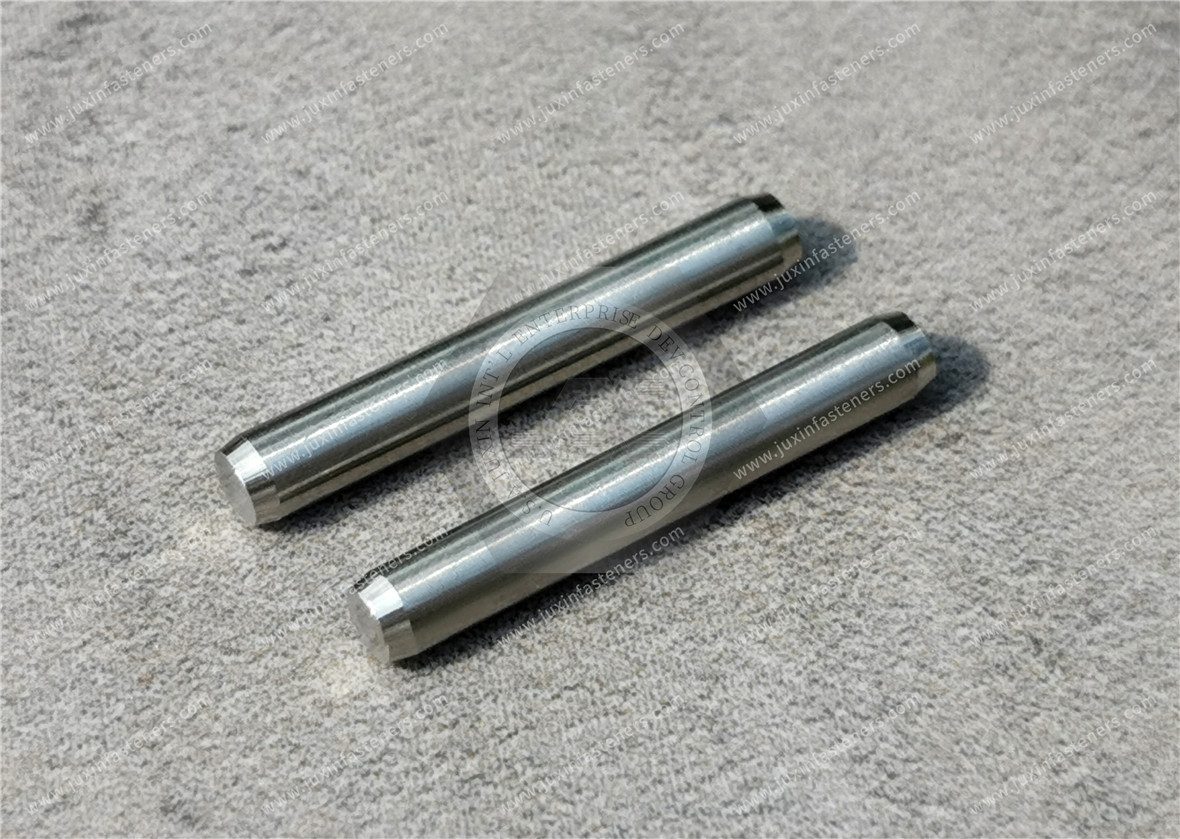

Parallel Pins,Of Unhardened Steel And Austenitic Stainless Steel

Parallel Pins,Of Unhardened Steel And Austenitic Stainless Steel
