Material: steel, austenitic stainless steel
Hardness: Hardness 125~245 HV30, A1 (ISO 3506-1) Hardness 210~280 HV30
Surface treatment: Plain, i.e. pins to be supplied in natural finish treated with a protective lubricant, unless otherwise specified by agreement between customer and supplier.
Preferred coatings are black oxide, phosphate coating, or zinc plating with chromate conversion coating (see ISO 9717 and ISO 4042). Plain, i.e. pins to be supplied in natural finish.
1. groove angle
2. The slot angle a shall be determined by the process according to the deformation of the material; for slot pins made of easy-cutting steel, a ≈ 70°.
3. Material:
a) Free-cutting steel, such as 9SMnPb28K according to DIN 1651.
b) Stainless steel X12CrMoS17, X12CrNiS18-8 (DIN 17440)
c) Aluminum alloy AlCuMgPb F37 (per DIN 1747-1); Copper alloy CuZn38Pb1.5 F41 (per DIN 17671-1)

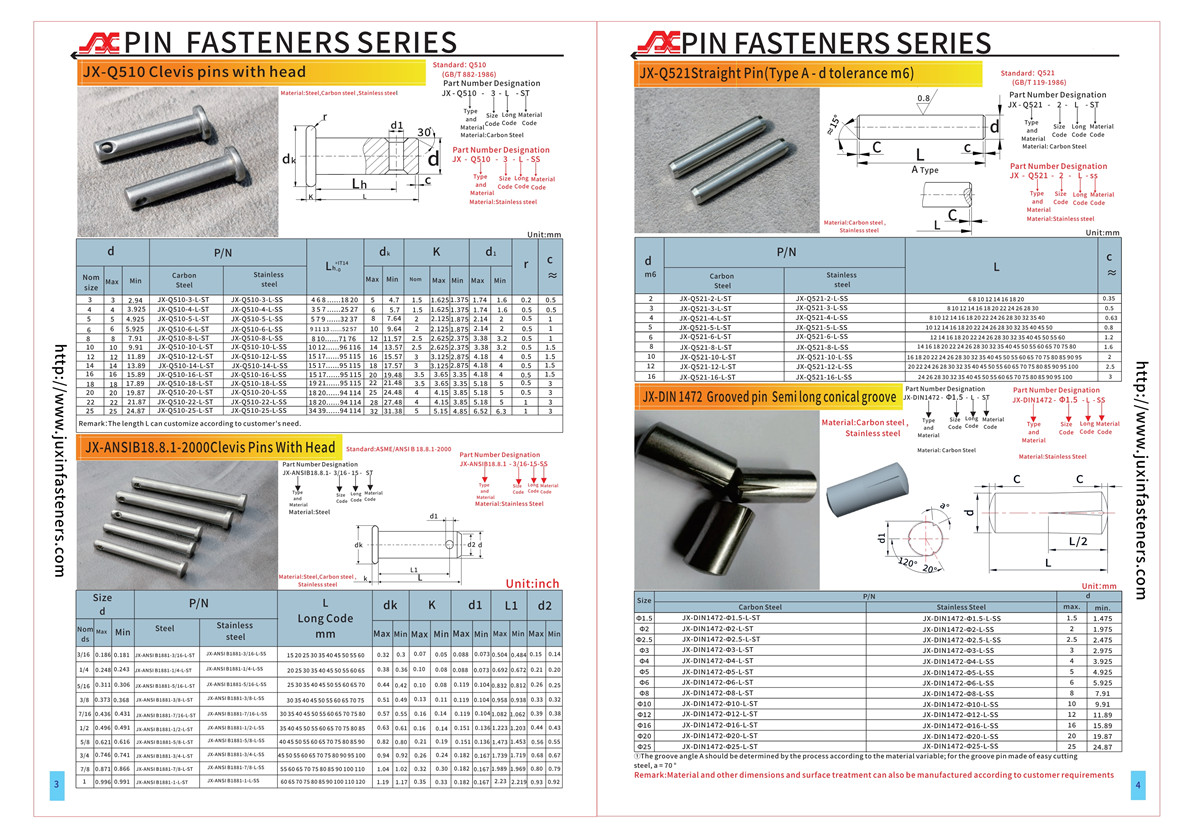

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 3-4Page See more product details.
