Clevis pins with head

Home - Products - Security Fasteners - Clevis pins with head
64dd8b88eebb1

Clevis pins with head

Material: 15, GB/T 699

Heat treatment: carburizing, depth 0.15mm~0.3mm, hardness: 58HRC~63HRC Hardness: 58HRC~63HRC

Standard: DIN 1444, ISO 2341, DIN EN 22341, ASME B 18.8.1 - 2014, Q 510, DIN 5526

Inquire Now Next Products

Product Specification

Material:15, GB/T 699

Heat treatment: carburizing, depth 0.15mm~0.3mm, hardness: 58HRC~63HRC Hardness: 58HRC~63HRC

Surface treatment: galvanized passivation, Fe/Zn8

Surface quality: the quality of parts should be uniform, no irregular or harmful defects are allowed; no burrs on any part of the pin. When use is allowed, 35 steel can be heat-treated to 28HRC~38HRC.The pin is a class of standardized fasteners, both static fixed connection, which can also be connected with the relative movement of the connected parts, mainly used for two parts of the articulation, constituting a hinge connection. The pin is usually locked with a cotter pin, reliable, and easy to disassemble.


Size Can also be According to the Customer's requirement for manufacturing， please check the detailed specification sheet details PDF, CAD, 3-4Page See more product details.

ProductPackaging

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8CM and pallet size: 215*100*90CM, or as your request.


ProductPictures

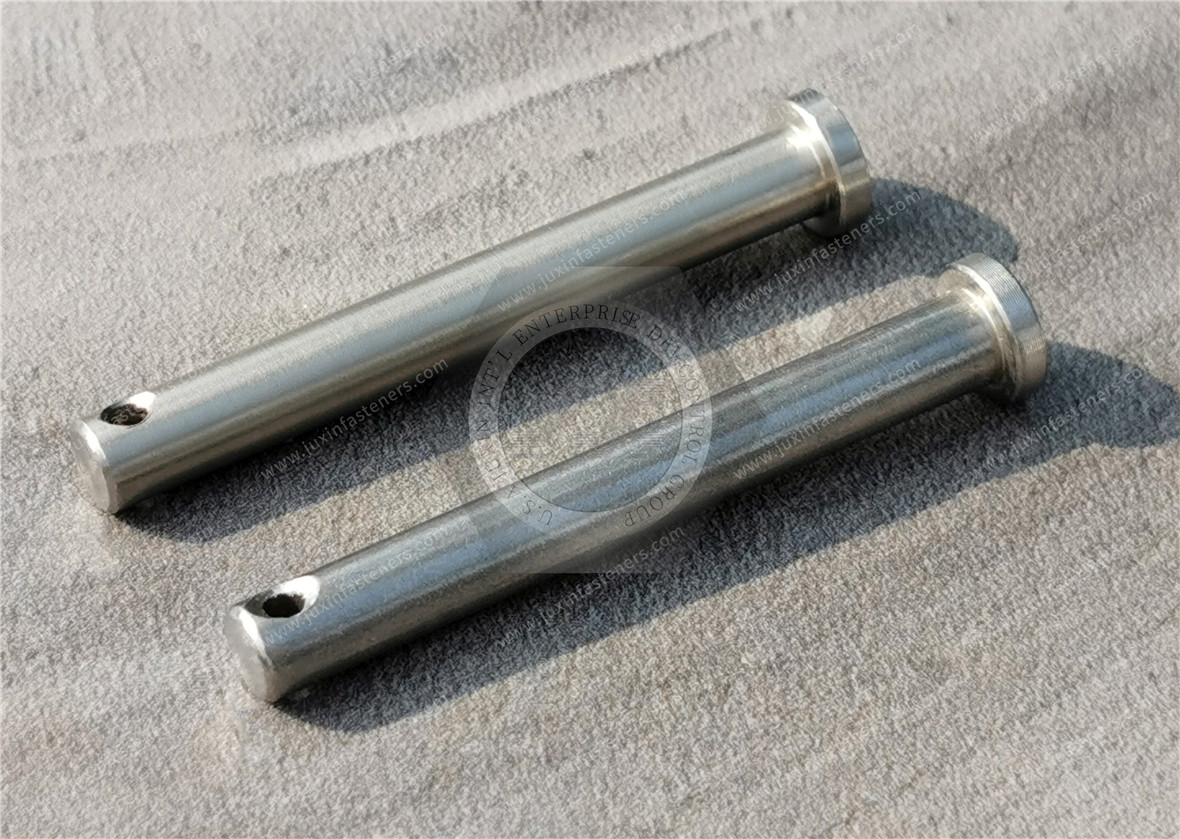

Clevis pins with head

Clevis pins with head
