Blind Captive Nuts

Name: Blind Captive Nuts

Size: M3、M4、M5、M6、M8、M10、M12, #4-40, #6-32, #8-32, #10-24, #10-32, '1/4-20

Material: Stainless SteelInserts&Brass Inserts

Surface treatment: White Nylon Cages

&Black Nylon Cages

Grip Range: 0.75mm

Blind captive nuts

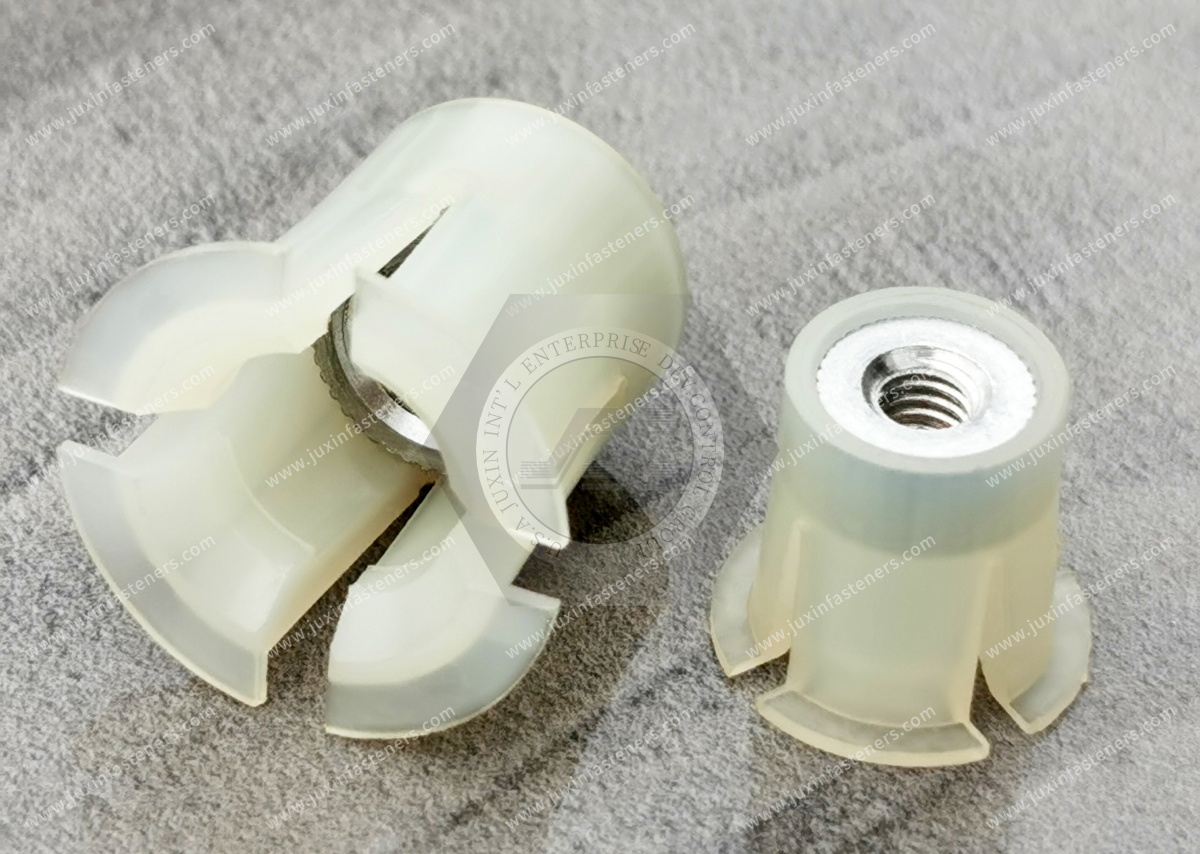

Blind captive nuts comprise a threaded brass nut encased in a white nylon cage. We supply the popular M5 & M6 sizes in packs of 500pcs.

Blind captive nuts provide an economical alternative to threaded rivets as they are easy to install and remove without special tooling. This feature makes them ideal for low-volume or on-site applications, but users benefit more significantly from the ease of assembly and in-place performance.

Features

No special installation tooling is needed

Covers all grip thicknesses

A spring-tension nylon cage holds the nut securely until the final assembly is made.

Protects brittle or painted surfaces as only the nylon cage comes into contact with the sheet or other metal

They are made from a corrosion-resistant material.


Inquire Now Next Products

Product Specification

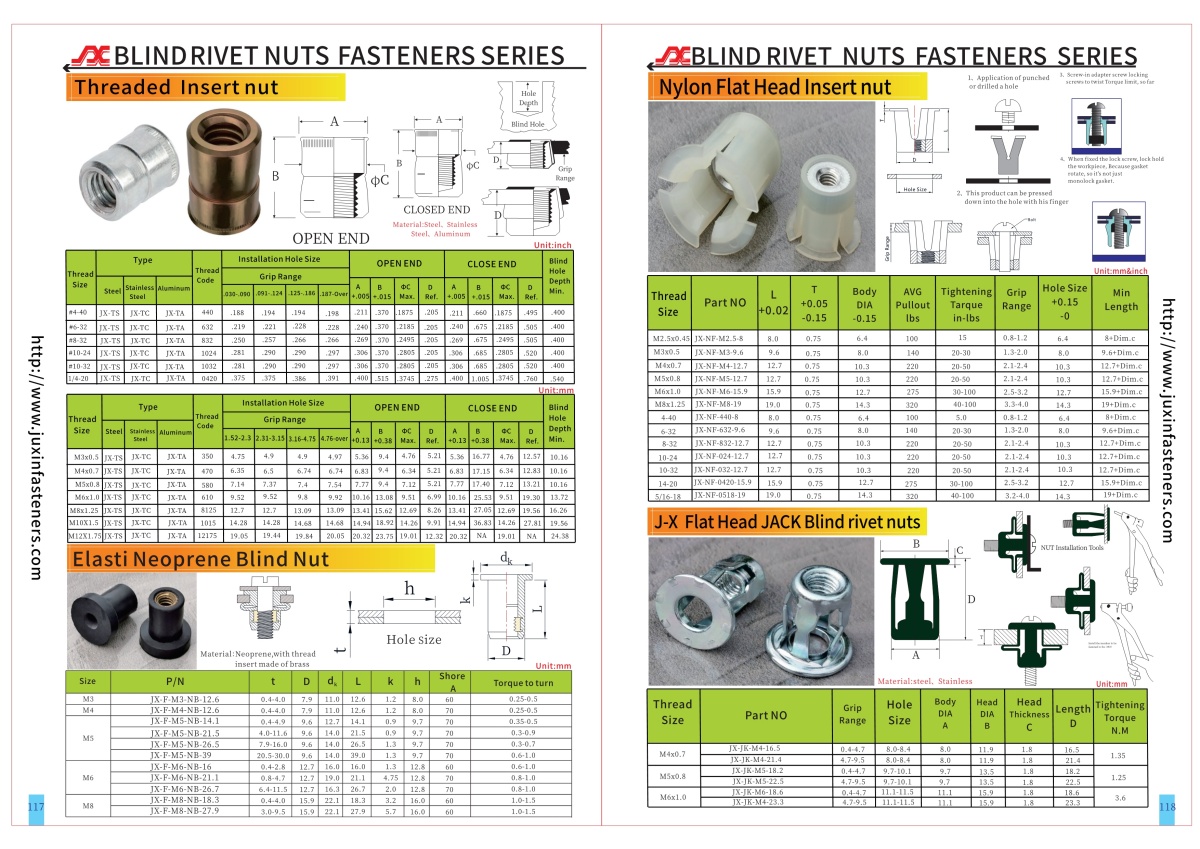

Size Can also be According to the Customer's requirement. and please check the detailed specification sheet PDF, CAD, See more product details, PDF Page 118

ProductPictures

Blind Captive Nuts

Blind Captive Nuts
