Name: Male Threaded Heat-Set Inserts for Plastic
Material: Brass
Size: 2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20",

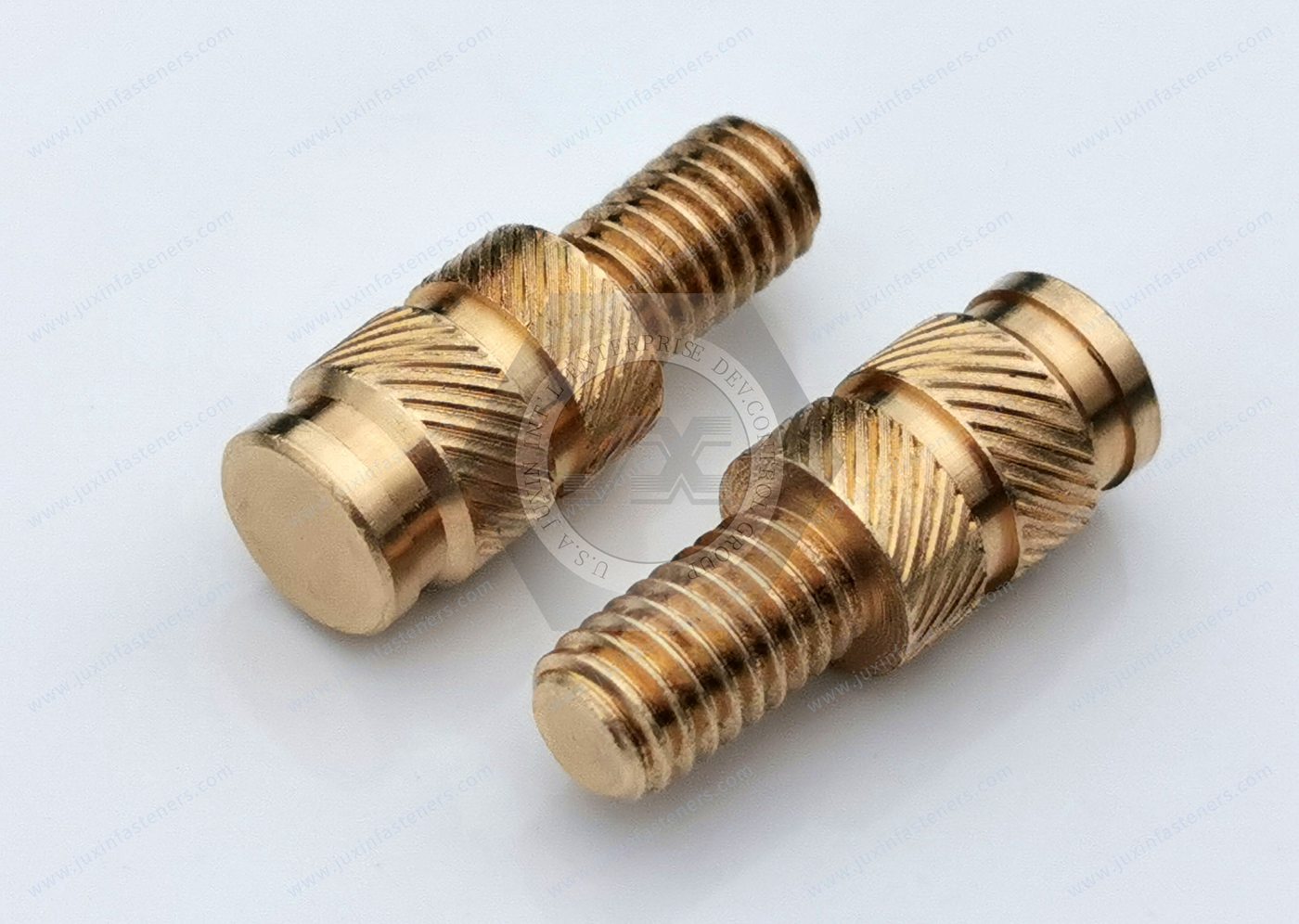

With the male threaded end on these inserts, mount components directly to plastic parts. The other end has two bands of diagonal knurls that face opposite directions to resist torque and pulling out. Heat the inserts on a hot plate, then press the knurled end into a square hole. The heat melts the surrounding plastic, and as it cools it hardens around the knurls. Compared to 3D printed or other plastic male threads that wear down when used over and over, these inserts are brass, which creates a stronger fastening base. Brass is also corrosion resistant, nonmagnetic, and can be used as an electrical contact.
1. Suited for thermoplastic components
2. Especially designed for ultrasonic installation
3. Screw-locked and low-stress anchoring
4. High pull-out values the n-Type insert can be installed from both sides. Advantages of automatic feed since no directional orientation is required.
The thread insert can be embedded using common ultrasonic welders. During welding, the plastic material plasticizes in the welding area due to the ultrasonic vibrations and flows into the undercuts of the thread insert. During cooling, a low-stress interference fit is achieved. Thermal installation or inductive insertion is preferable
Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 75-76Page
