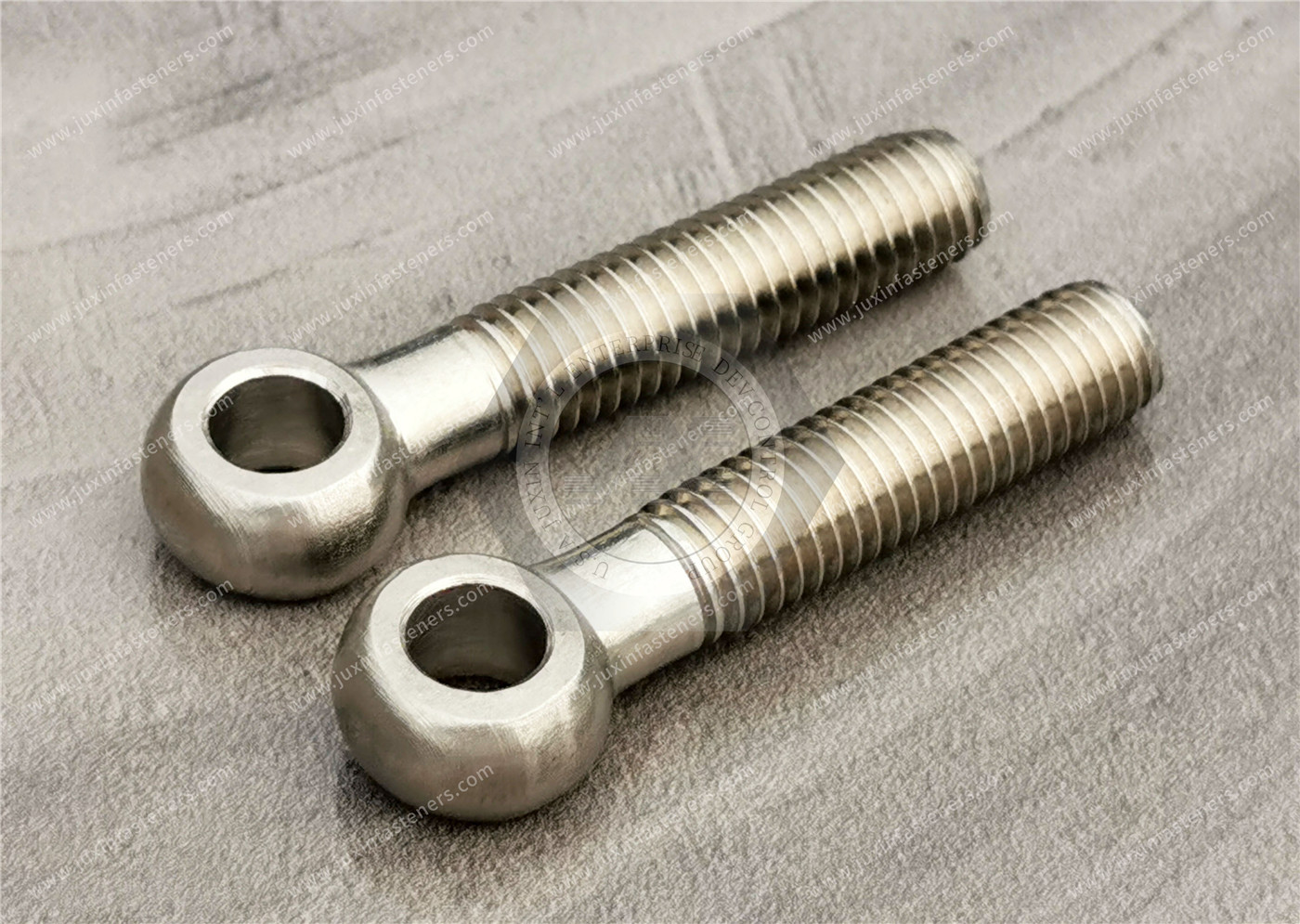

Name: Corrosion-Resistant Fully Threaded Rod End Bolts
Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316, High-Strength Steel
These rod end bolts are good for wet and corrosive environments—for maximum mounting flexibility, cut the fully threaded shaft to whatever length you need. Also known as swing bolts and eyebolts, rod end bolts have no moving parts. They're designed to make pivoting or hinge movements in applications that don't need to compensate for misalignment.
Brass rod end bolts resist corrosion in humid and wet environments, but not as well as stainless steel bolts. They're also not as strong. Often, brass bolts are chosen for their look, or to match other components, such as hinges.
303 and 304 stainless steel rod end bolts won't rust in humid, wet, and washdown environments. They're stronger than brass bolts and nearly as strong as steel. They will rust when exposed to salt water and chemicals, however. Black-oxide 303 stainless steel rod end bolts have a matte-black finish that adds some corrosion resistance but is mostly chosen for their looks.
17-4 PH stainless steel rod end bolts have the most tensile strength—a similar amount to high-strength alloy steel. They also won’t rust in humid, wet, and washdown environments. Even at high temperatures, they maintain their excellent strength and corrosion resistance, so they’re often used in automotive drive trains and heat exchangers. However, they’ll rust when exposed to salt water and chemicals.
316 stainless steel rod end bolts are our most corrosion-resistant, and they're nearly as strong as steel rod end bolts. Use them in areas with salt water, chlorine, and chemicals without worrying about rust.
ASTM rod end bolts meet a standard for the material.
DIN 444 rod end bolts meet an international standard for rod end dimensions.

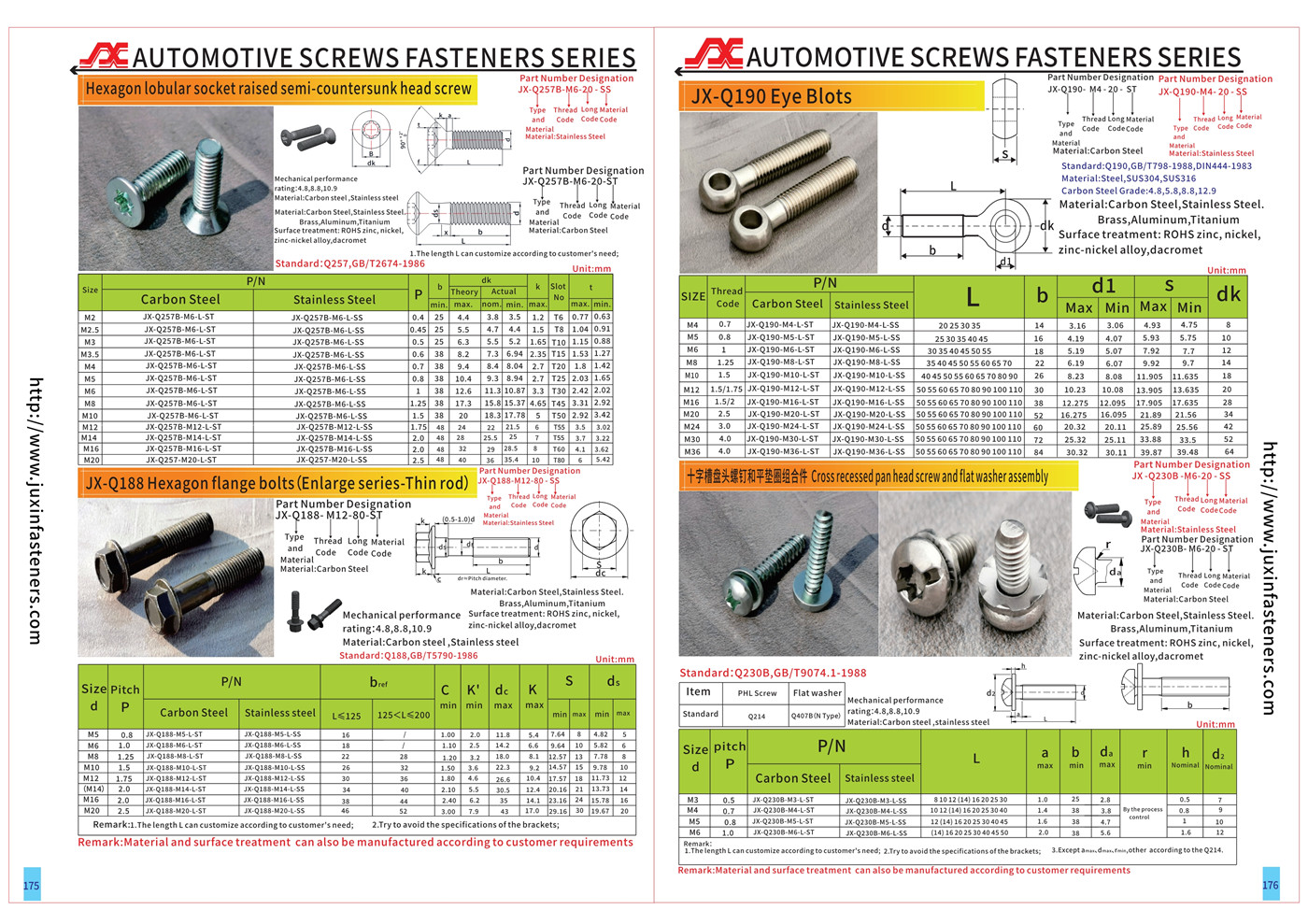

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 175-176 Page See more product details.
