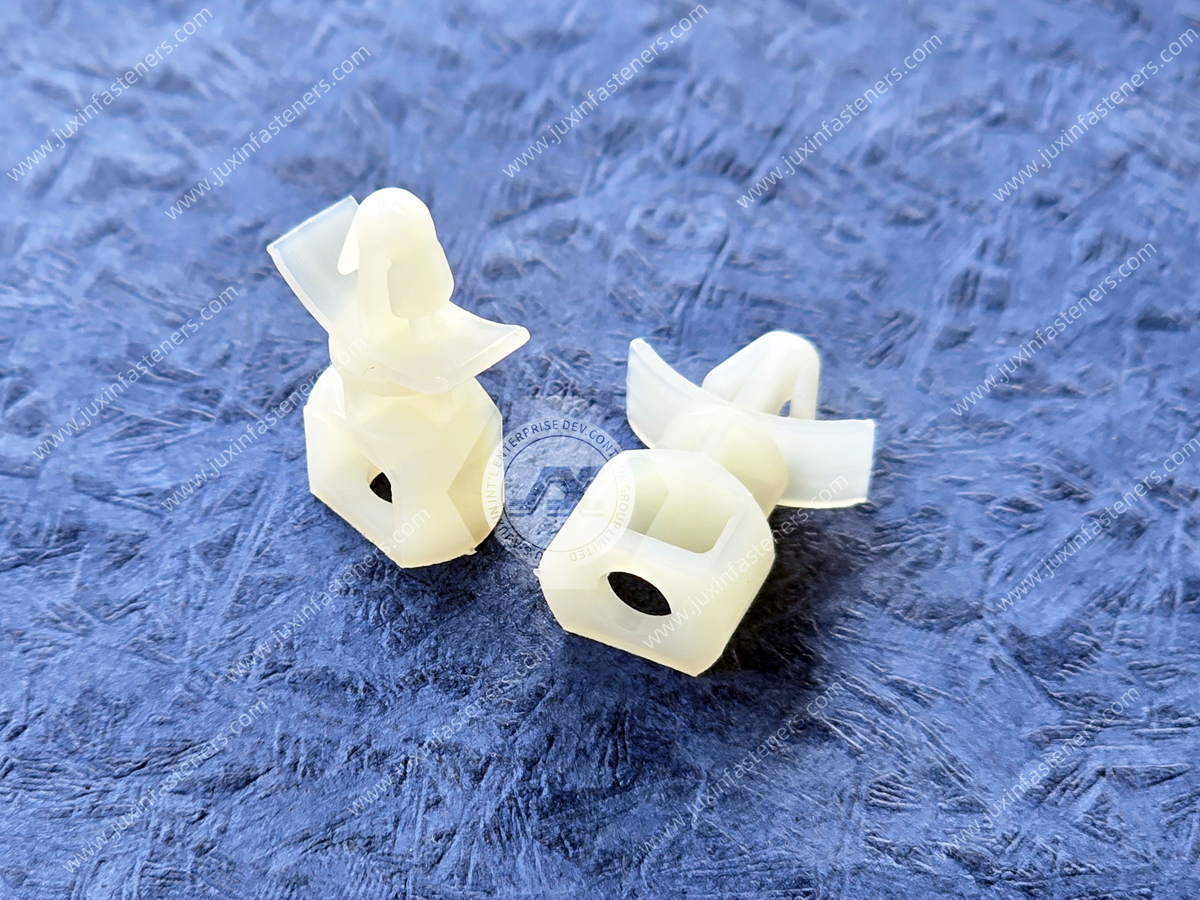

Snap Rivet Locking Circuit Board Support

Name: Snap Rivet Locking Circuit Board Support

Material: UL-approved NYLON66 (natural color), fire rating 94V-2,

sound insulation, not easy to age.

1. Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: 4.1-4.2mm

Panel Thickness: See Rivet Table

2. Top Hole: 4.75±0.08mm

Panel Thickness: 0.79-1.98mm

Bottom Hole: 4.1-4.2mm

Panel Thickness: See Rivet Table

Snap Rivet Locking Circuit Board Support - Spacer, Mounted to the chassis with snap rivets, Bayonet Nose, Snap Lock, and Arrowhead.

Spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.

Furthermore, we offer different hole diameters, lengths, and plate thicknesses.


Inquire Now Next Products

Product Specification

These metric push-in spacers are designed to support heavily loaded circuit boards. No through hole is required in the board, allowing easy access to the underside. They have a flanged base to keep them steady.

Our range of Push Spacers is available in different lengths from 3.20mm to 22.20mm; they are suitable for use with a hole diameter of 3.18mm or 4.75mm and a panel thickness of 0.79-1.98mm. They are easy to install with a push fitting and securely grip the PCB


ProductPictures

Snap Rivet Locking Circuit Board Support
