According to the bearing’s conditions, the combination of different metal substrates and embedded solid lubricants can ensure that the product can meet the special needs of various temperatures, loads, movement, and media conditions, and ensure stable and reliable work.
High-Load Oil-Embedded Sleeve Bearings. Increased iron content makes these bearings stronger and more resistant to shock loads than standard oil-embedded bearings; however, they operate at lower speeds. Startup friction causes them to release a thin layer of oil on the bearing’s surface. The color is silver because of the iron. These bearings are also magnetic due to their high iron content.
Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. If your application’s load and speed requirements are below the values listed, the bearing will work.

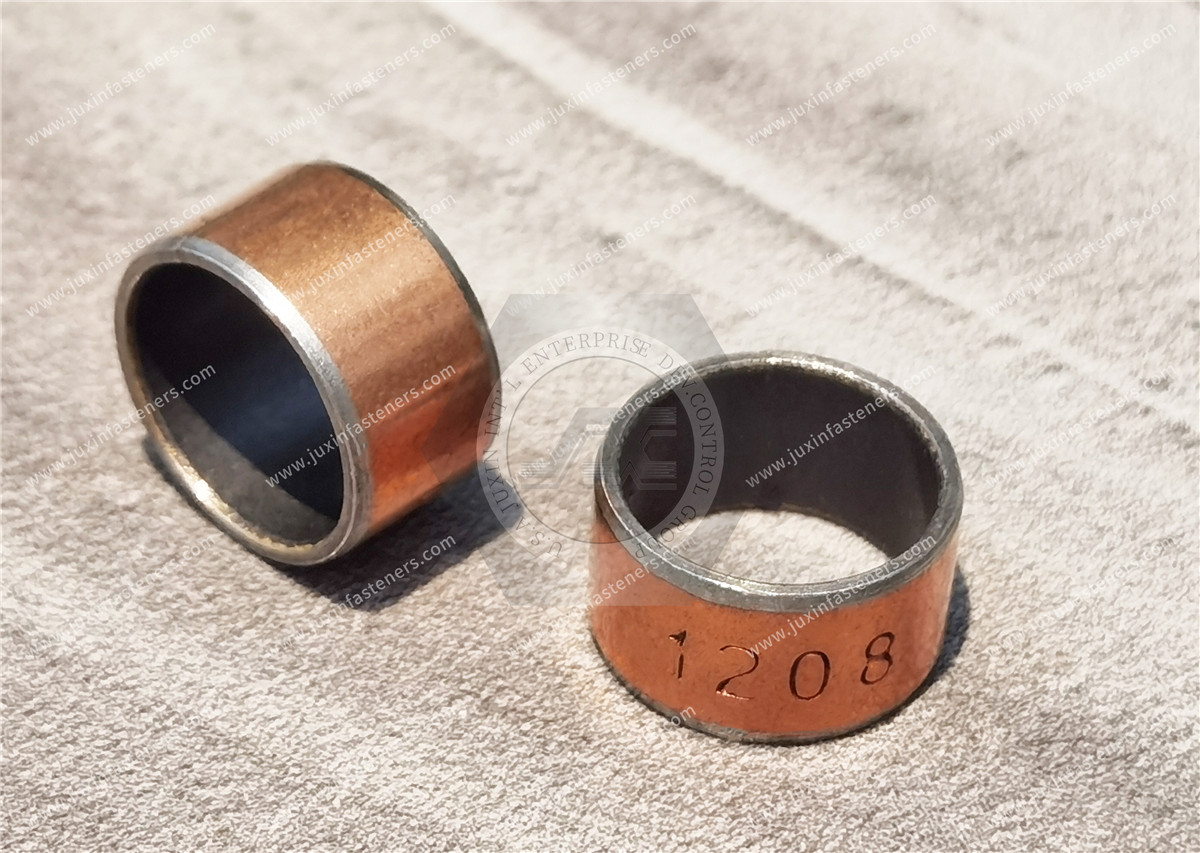

Tri-layer maintenance-free bushing Description, Self-Lubricating Multilayer Composite Bushing Supplier
tri-layer maintenance-free bushing has a base of lower carbon steel, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the interstice of this bronze layer after the rolling process is completed. PTFE sleeve bushing has good physical & mechanical properties and also has chemical properties. It is suitable for rotary, oscillating movement with the performance of self-lubricating. Anti-wear, lower friction, lower noise.
Superior friction performance under high load conditions.

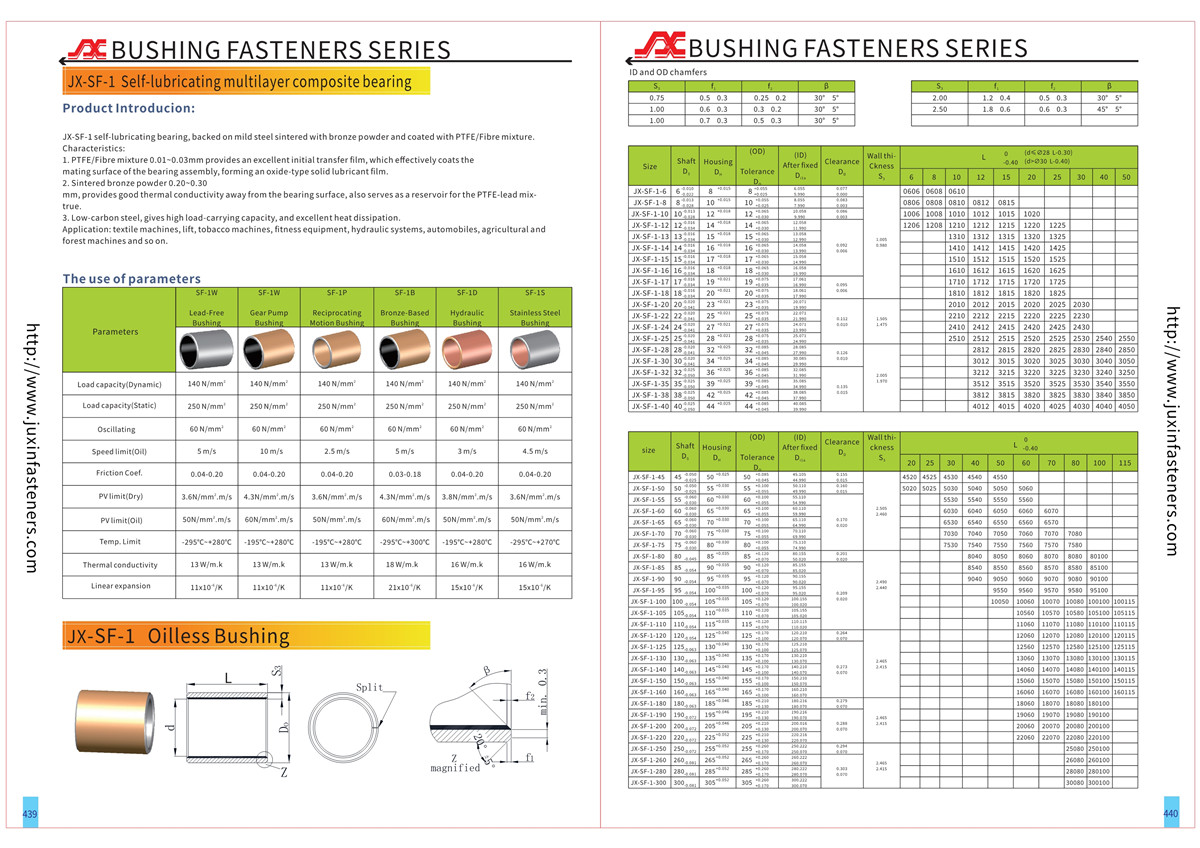

Size Can also be According to the Customer's requirement for manufacturing， please check the detailed specification sheet details PDF, CAD, 439-440Page See more product details.
