Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 55-56Page See more product details.

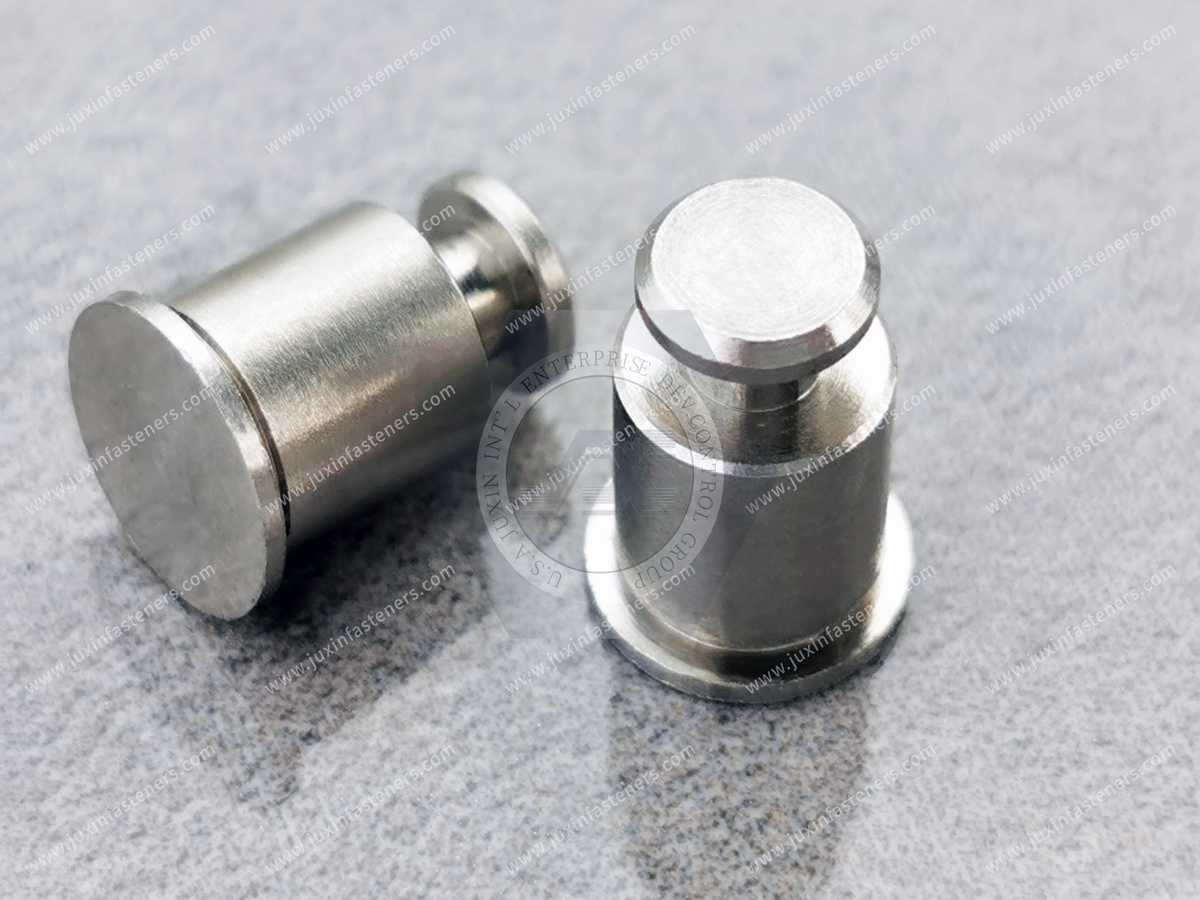

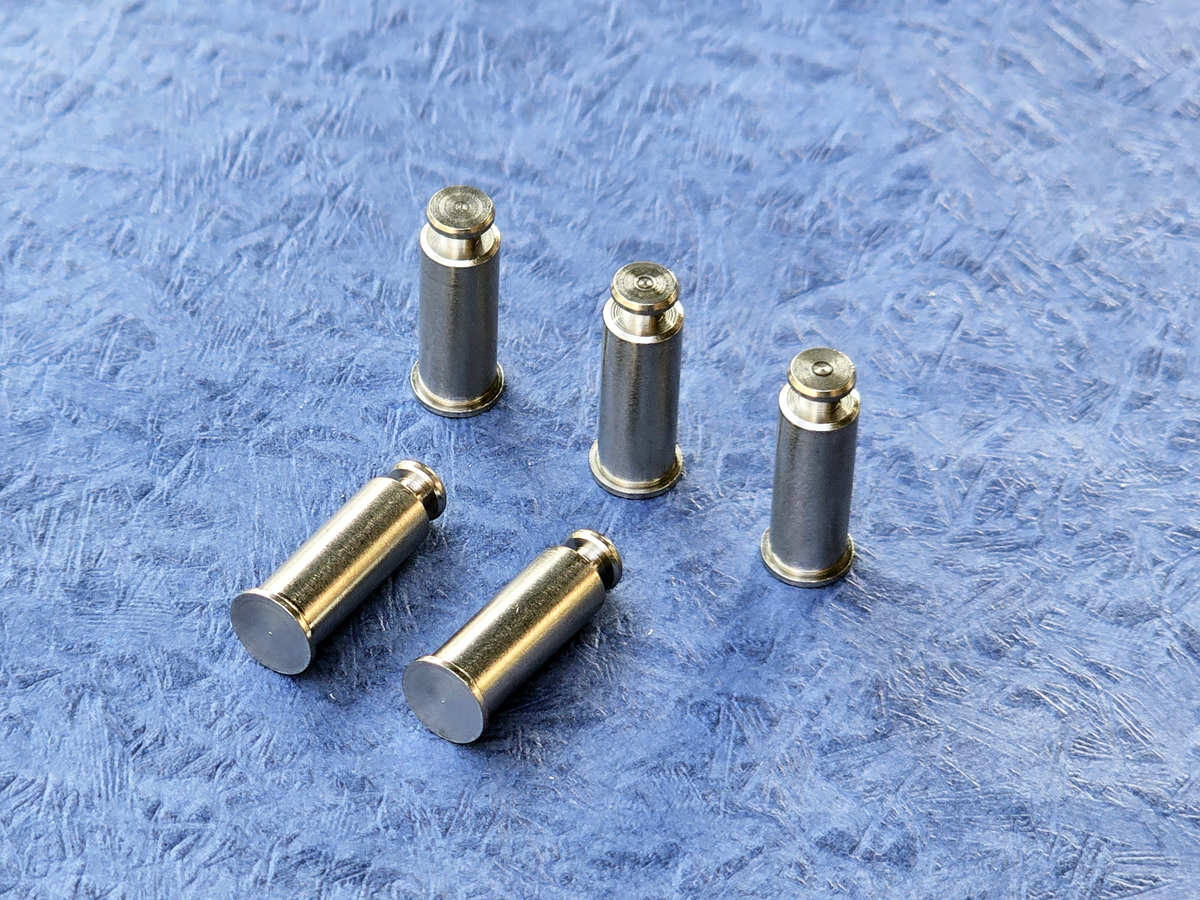

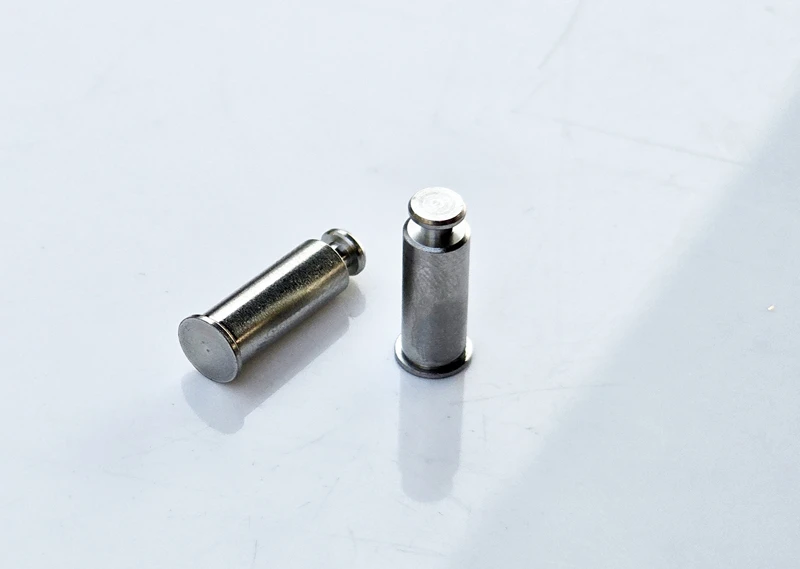

Designed so that a P.C. board or component can be quickly slipped into place and then removed sliding the board sideways and lifting it off.Standoffs are designed so that a PC board or panel can be quickly slipped into place and then removed from an assembly by simply sliding the board sideways and lifting it off. standoffs fasteners can save valuable time and dramatically reduce the amount of loose hardware required. Type JX-SKC can be used for spacing or hanging of replaceable components. Typically, several JX-SKC standoffs are used with one standard threaded standoff which accepts a screw to secure the board or component against any unwanted movement.
1. Type JX-SKC - Allows detachable spacing of two sheets
2. Clinch feature mounts fastener permanently into metal sheet.
3. Unique barrel design allows for quick attachment and detachment.
4. Head is flush with one side of the metal sheet.
5. Makes horizontal or vertical component mounting possible.
