Material:
Carbon steel, stainless steel

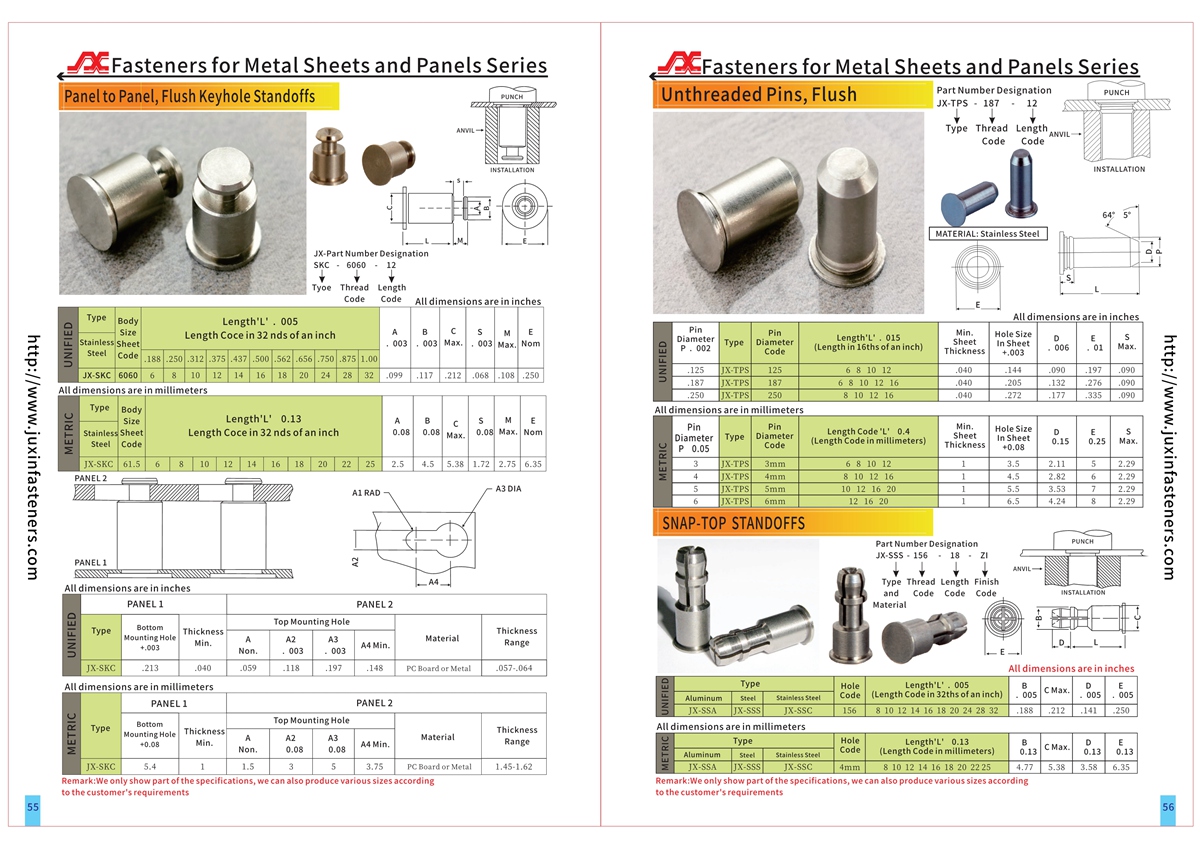

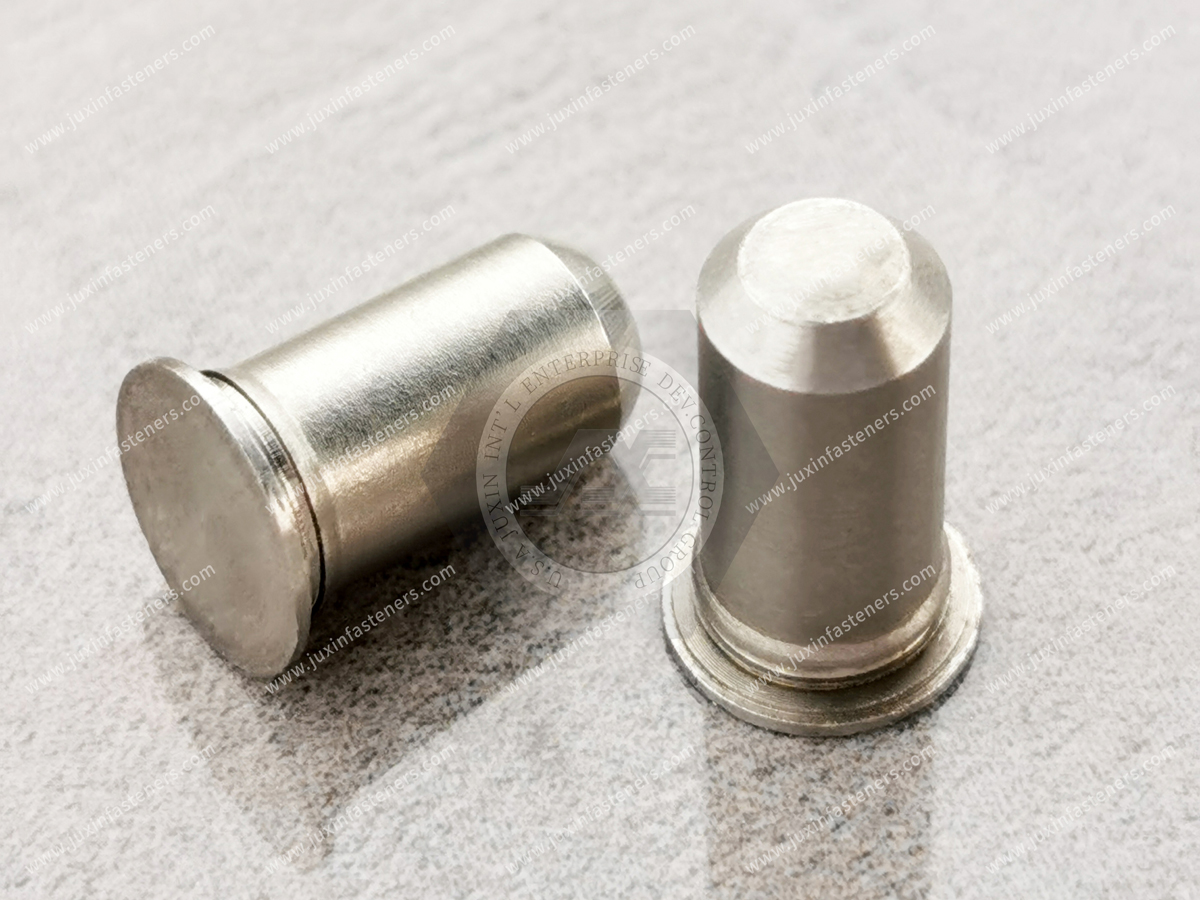

Self-Clinching Pilot Pins are installed by placing them in properly sized holes in the sheets and squeezing into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove, creating a flushhead assembly and securely locking the stud into the sheet with high torque-out and pushout resistances.
JX-TPS and JX-TP4 Pilot Pins satisfy a wide range of positioning, pivot, and alignment applications. The chamfered end makes the mating hole location easy. Flush-head for sheet thickness of .040” and greater.
Satisfies a wide range of positioning, pivot, and alignment applications.
The chamfered end makes the mating hole location easy.
Type JX-TPS is recommended for use in steel or aluminum sheets. HRB (Rockwell “B” Scale) is 70 or less, and HB (Hardness Brinell) is 125 or less.
Type JX-TP4 is recommended for use in stainless steel sheets. HRB (Rockwell “B” Scale) is 92 or less, and HB (Hardness Brinell) is 195 or less.
