Self-Clinching Flush Fasteners - Type JX-F, JX-FS

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Self-Clinching Flush Fasteners – Type F

Self-clinching flush nuts are designed to be completely flush in sheets as thin as 1.5mm.

These fasteners are ideal for applications where a thin sheet requires load-bearing threads but still must remain smooth, with no protrusions on either surface. The flush nut can be installed easily by squeezing it into a round hole in metal sheets. When the fastener is installed, both the top and the bottom of the sheet remain smooth, enhancing the functional and cosmetic qualities of the entire assembly. self-clinching flush nuts can be installed in metal sheets before bending and forming. This can provide strong threads in places that would be inaccessible for installation after chassis are formed. The hexagonal head along with the proven self-clinching design ensures high axial and torsional strength and Type F fasteners can be ordered to conform to US  specifications.


Inquire Now Next Products

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 31-32Page See more product details.


The fastener remains flush with both sides in sheets as thin as .060/1.5mm. Thread sizes #2 to 1/4" and M2 to M6.Self-clinching flush nuts are designed to be completely flush in sheets as thin as .060”. These fasteners are ideal for applications where a thin sheet requires load-bearing threads but still must remain smooth, with no protrusions on either surface. The flush nut can be installed easily by squeezing it into a round hole in metal sheets. When the fastener is installed, both the top and the bottom of the sheet remain smooth, enhancing the functional and cosmetic qualities of the entire assembly. Self-clinching flush nuts can be installed in metal sheets before bending and forming. This can provide strong threads in places that would be inaccessible for installation after chassis are formed. The hexagonal head along with the proven self-clinching design ensures high axial and torsional strength and Type JX-F fasteners can be ordered to conform to specifications.

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

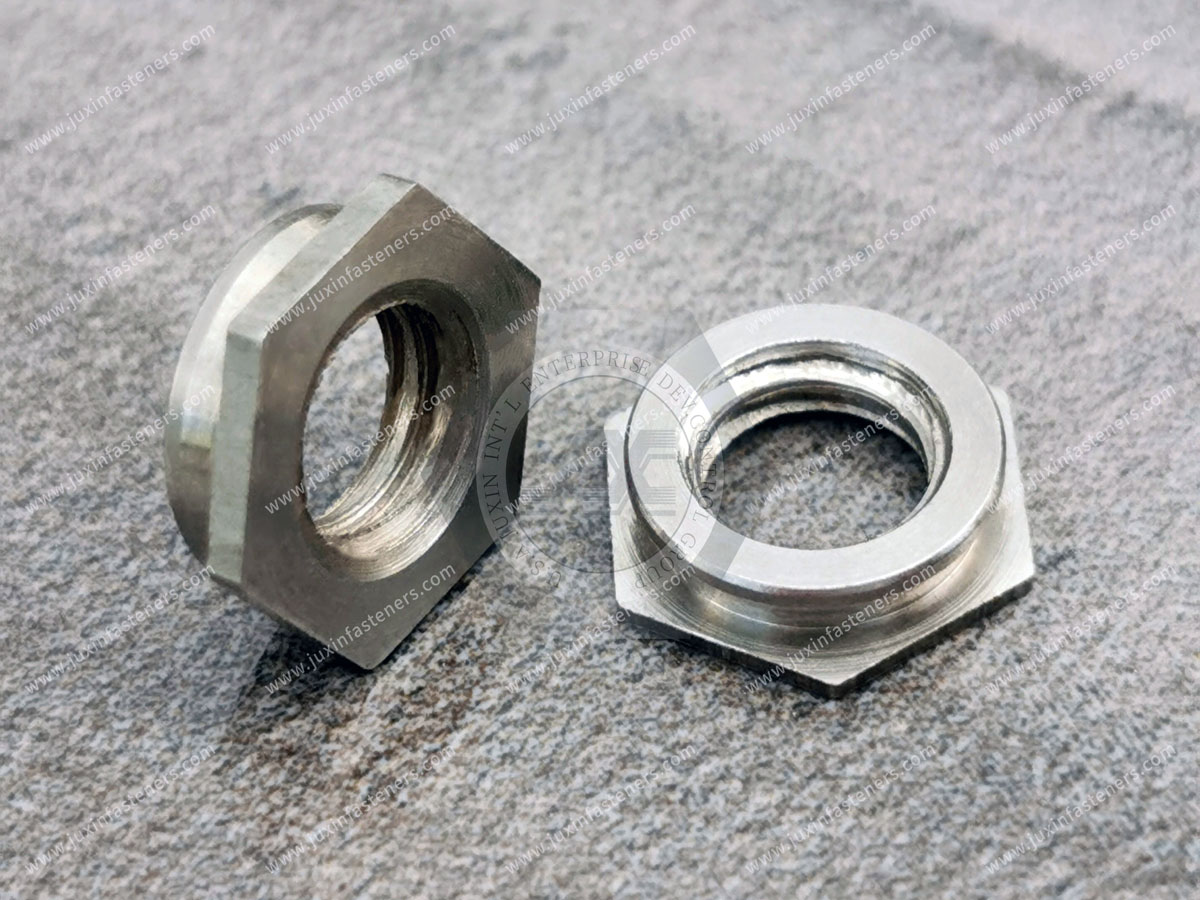

Self-Clinching Flush Fasteners - Type JX-F, JX-FS


Self-Clinching Flush Fasteners - Type JX-F, JX-FS
