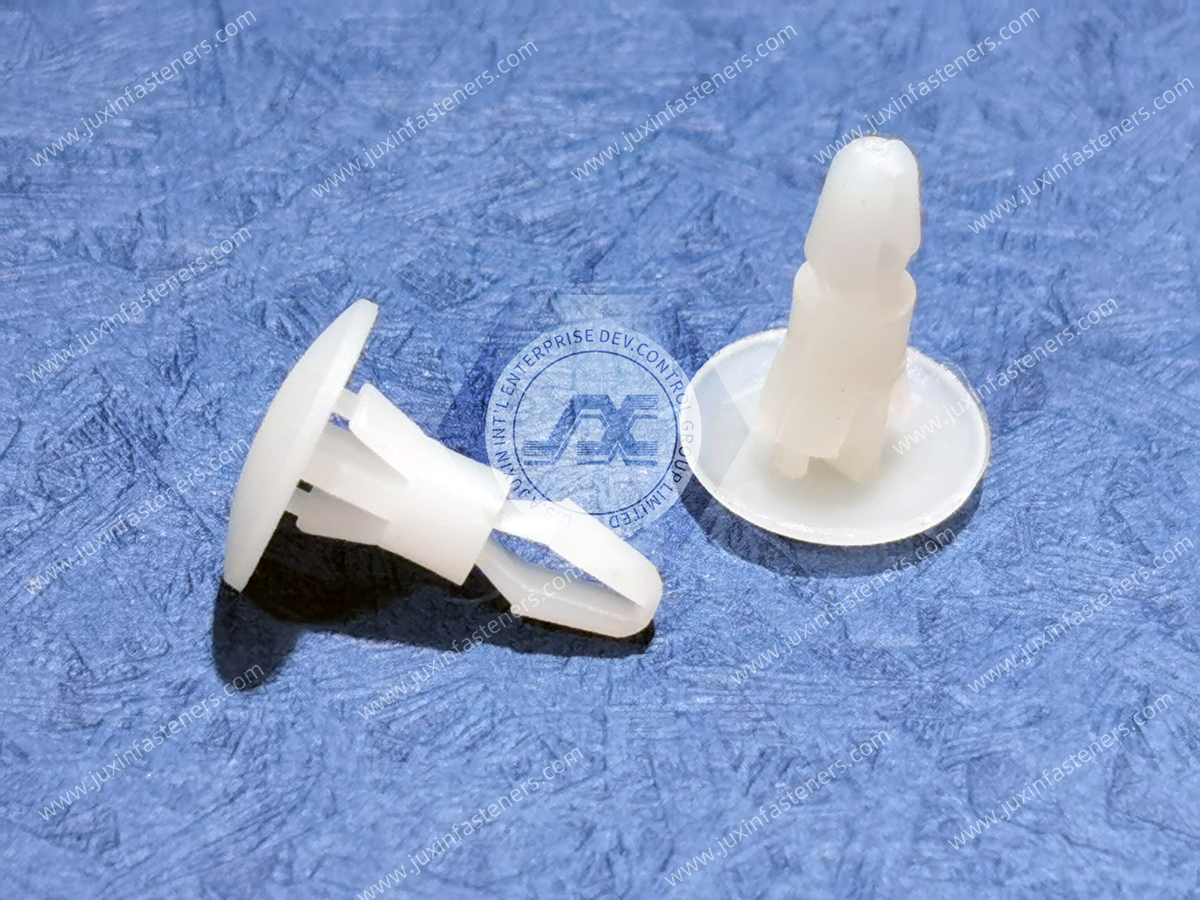

Reverse Mounted Circuit Board Support Round Hole JX-PS-02GA

Name: Reverse Mounted Circuit Board Support Round Hole

Material: Flat bottom isolation post JX-PS-02GA type. Qualified NYLON66 (natural color), fire rating 94V-2, sound insulation, not easy to age.

Usage: First, drill 3.5-4.0mmφ and 5.0-5.5mmφ holes in the substrate, then push the isolation column upward from the bottom to fix it, and then fix the PC board.

Features: PC board can be fixed without tools; easy to disassemble when replacing or repairing PC board.


Inquire Now Next Products

Product Specification

Circuit Board Hardware Circuit Board Hardware

Our wide range of PCB accessories offers an extensive selection of PCB Spacers, pillars, supports, and standoffs to support, lock, space, or guide the PCB board.

Discover accessories for appliances (white goods), electrical cabinets, machinery, or other equipment with PCB support.

Reverse Locking Spacer

This is a push-reverse locking spacer with a flat top mounted on the underside of the board. It is designed to fit through the bottom of a PCB and connect to the panel above.

The flat top supports boards without drilling a hole, while wings on the other end add tension for a secure hold in a hole. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.


ProductPictures

Reverse Mounted Circuit Board Support Round Hole JX-PS-02GA
