Precision AN 37° Flared Fittings for Stainless Steel Tubing. For Use With Air, Cutting Oil, Fuel Oil, Hydraulic Fluid, Mineral Oil, Water
Temperature Range: -320° to 1200° F
Tubing: Use with seamless 304 or 316 stainless steel
Specifications Met: See Table
The threads on the tube end of these fittings are Class 3A or 3B and adhere to tighter tolerances than other 37° flared fittings. They are made to exact AS (formerly AN) specifications and provide a tight metal-to-metal seal on tubing that is flared to 37°. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.
Material: Carbon Steel
Surface treatment: galvanized passivated
There should be no cracks, pores, burrs, sharp edges, rust spots, and other defects that affect the use. In which thread AQL=1.5, ferrule end size AQL=1.5, other size AQL=4.0.

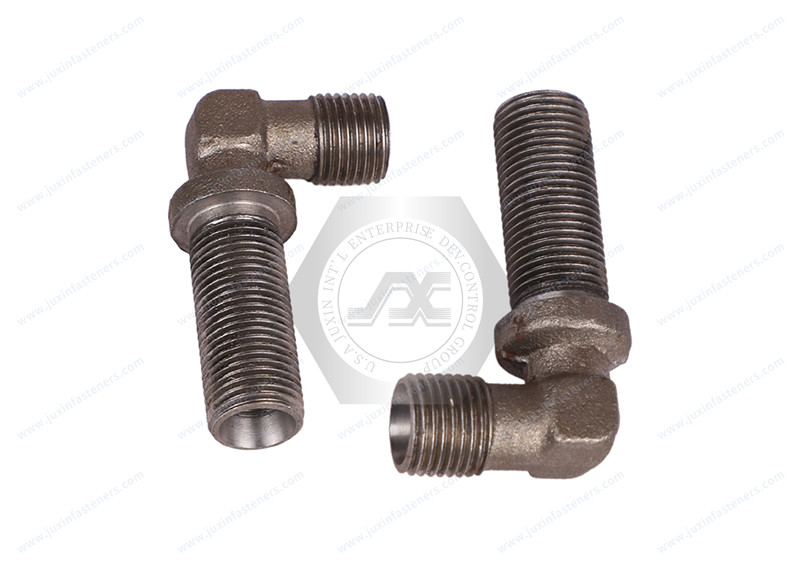

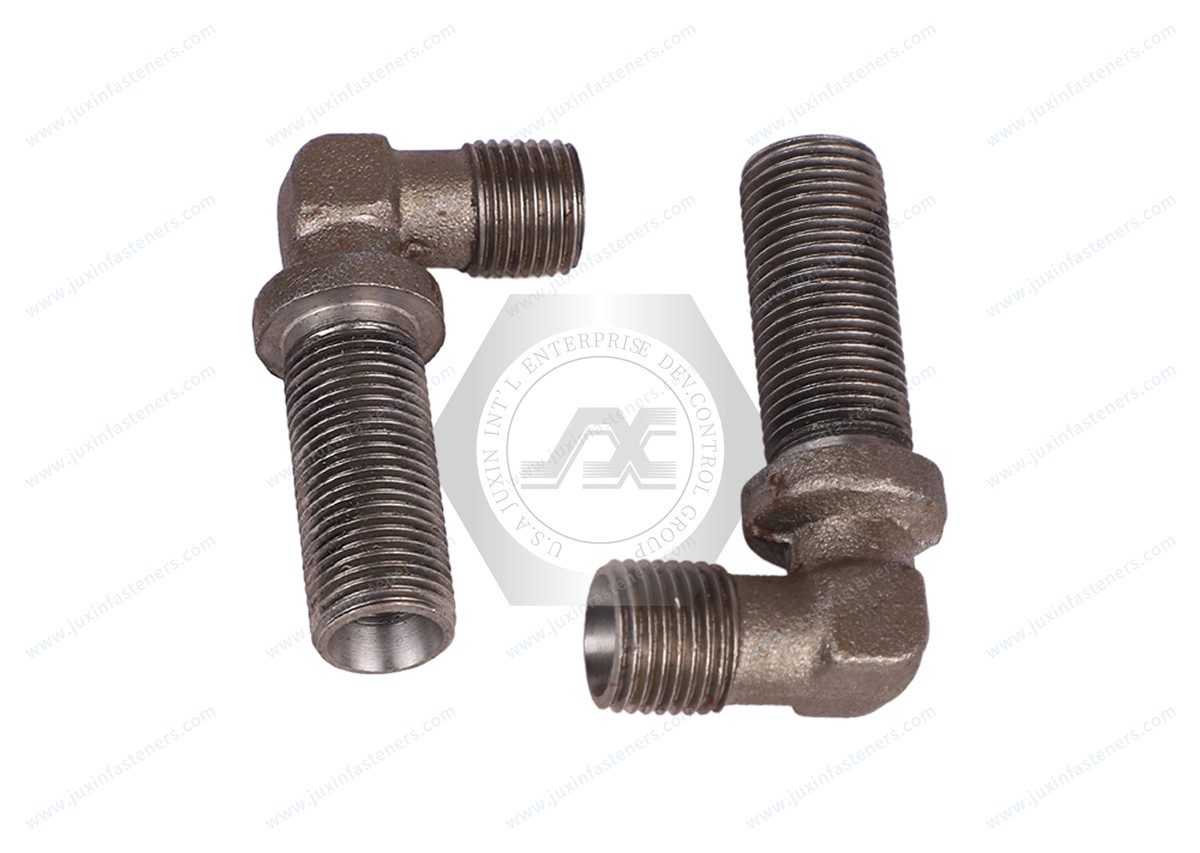

①, Numbering example: DW=14, galvanized, rainbow-colored passivated ferrule type over-board elbow joint body number Q814B14.

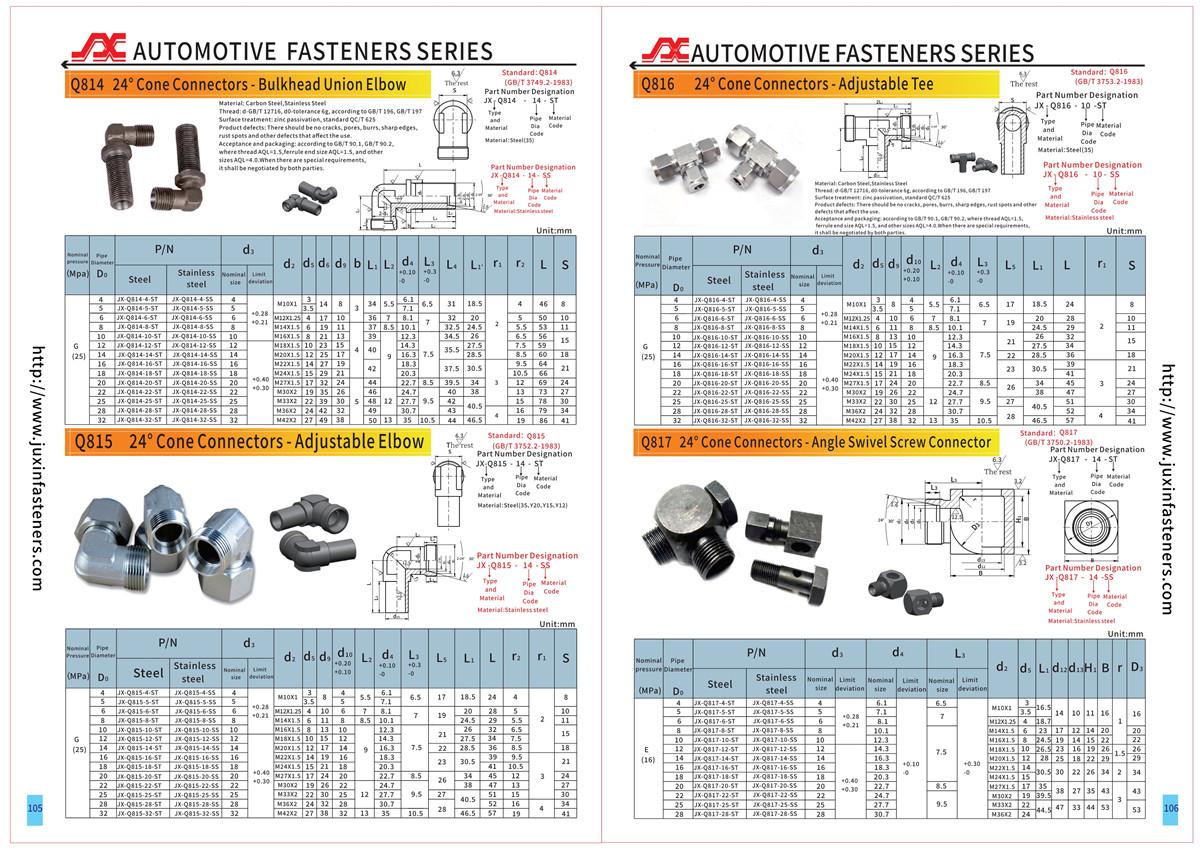

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 105-106 Page See more product details.
