Q811 Sleeve type taper thread right angle three way joint body&24° Cone Connectors - Male Run Tee - Body

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Q811 Sleeve type taper thread right angle three way joint body&24° Cone Connectors - Male Run Tee - Body

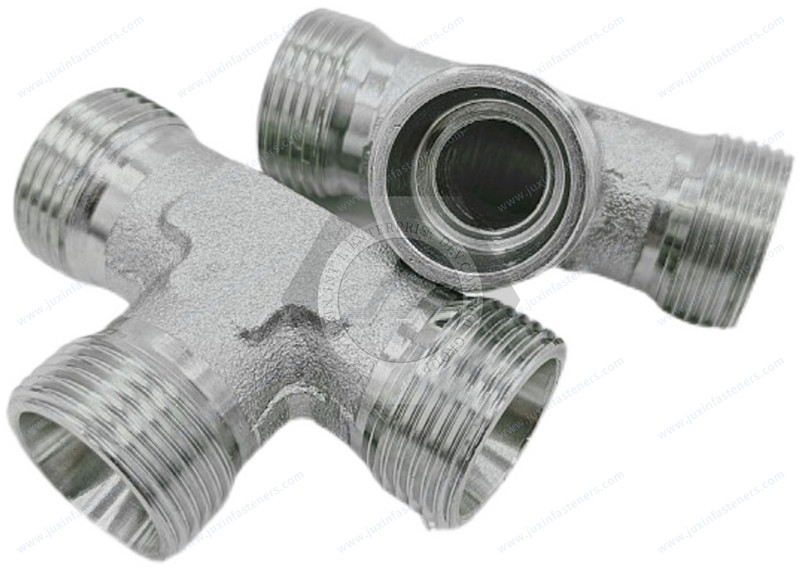

6528f6017f916

Q811 Sleeve type taper thread right angle three way joint body&24° Cone Connectors - Male Run Tee - Body

Material:Stainless steel SUS304.316,Carbon steel ,Brass

Standard:Q811


Inquire Now Next Products

Product Specification

The ferrule is tightened into the 24° taper of the fitting by tightening the nut, creating an effective hard contact seal as the ferrule bites into the tube. At the same time, it forms an effective hard contact seal. The most important feature of ferrule fittings is that they are very easy to install with a wrench; with the use of elastic ferrule sealing ring technology. The use of elastic ferrule sealing ring technology can further improve the ability of ferrule fittings to resist leakage; in addition, compared with welded fittings will not be generated during installation due to oxidized skin contamination of pipeline cleanliness.


High-Pressure Stainless Steel Threaded Pipe Fittings
Use these heavy-duty fittings in high-pressure flow applications.
304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 103-104 Page See more product details.


ProductPackaging

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.

ProductPictures

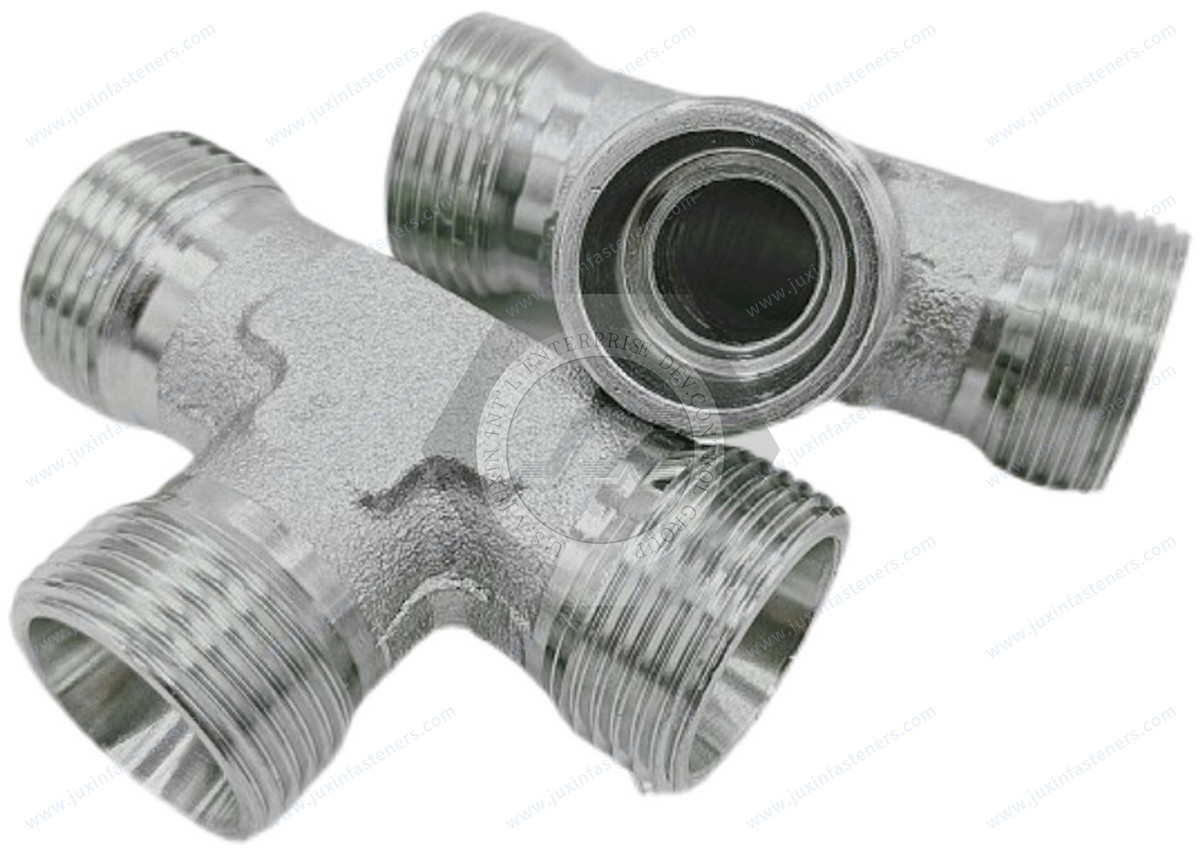

Q811 Sleeve type taper thread right angle three way joint body
