Plastic Nylon Push Spacer

Name: Nylon Push Spacer

Material: UL-approved NYLON66 (natural color), fire rating 94V-2,

sound insulation, not easy to age.

1. Hole: 4.75±0.08mm

Panel Thickness: 0.79-1.98mm

2. Hole: 3.18±0.05mm

 Panel Thickness: 0.79-1.98mm

PCB Support - Spacer, Locking Arrowhead, Teardrop, Locking Bayonet, Flat Rest, Round, Hexagonal

These special spacers support many applications, especially when conventional fastening solutions reach their limits.

These metric push-in spacers are designed to support heavily loaded circuit boards. No through hole is required on the board, allowing easy access to the underside. They have a flanged base to keep them steady.


Inquire Now Next Products

Product Specification

These metric push-in spacers are designed to support heavily loaded circuit boards. No through hole is required in the board, allowing easy access to the underside. They have a flanged base to keep them steady.

Our range of Push Spacers is available in different lengths from 3.20mm to 22.20mm; they are suitable for use with a hole diameter of 3.18mm or 4.75mm and a panel thickness of 0.79-1.98mm. They are easy to install with a push fitting and securely grip the PCB


ProductPictures

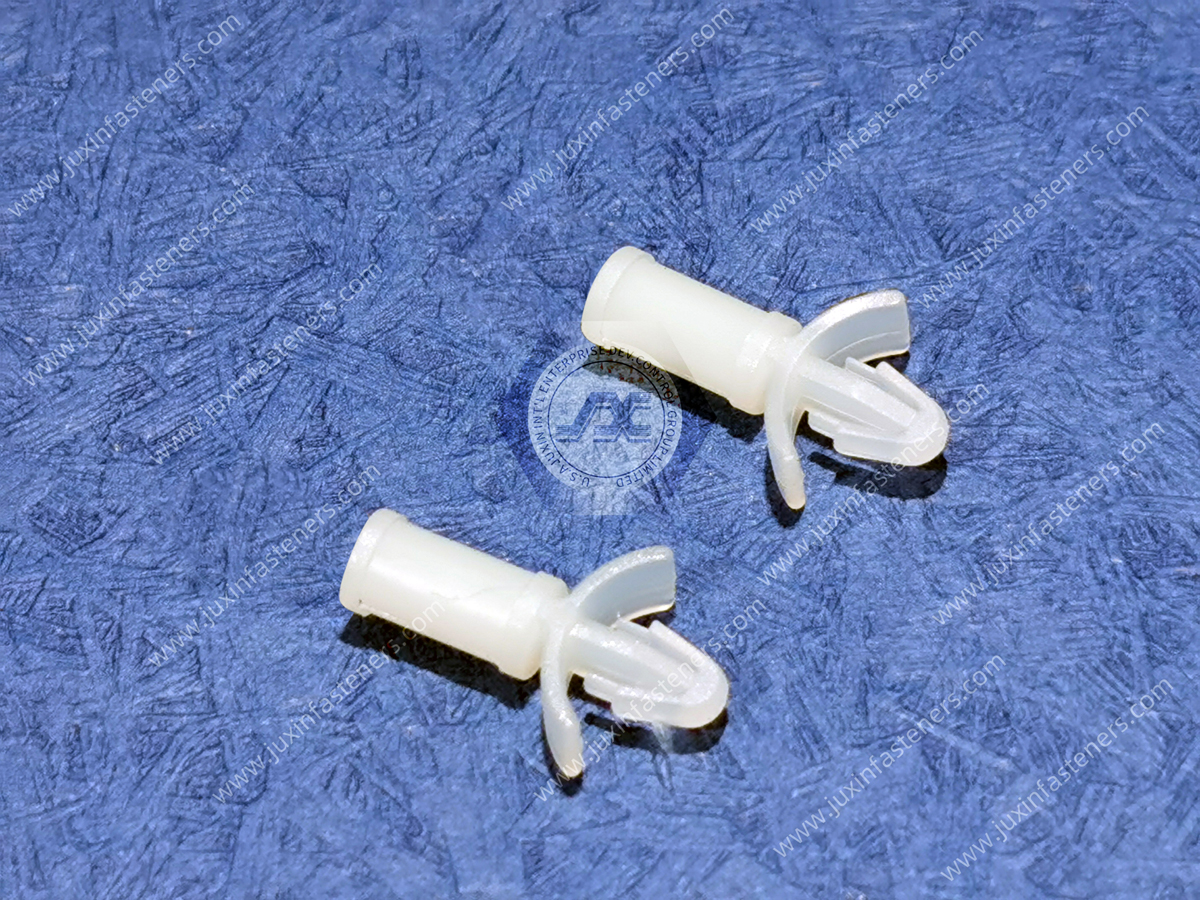

Plastic Nylon Push Spacer
