Nylon Studded Circuit Board Support

STUDDED PCB SUPPORT HEX LOCKING BAYONET - M4

Reference NSCBS

Our range of Studded PCBs supports hex-locking bayonets. They are designed to be used with a threaded M4 hole and securely fastened to the PCB via a locking bayonet connection.

Hole: 4.0mm

Panel Thickness: 1.57mm

Thread: M4

Thread Length: 6.40mm

Nylon 66 Natural

UL94-V2

RoHS Compliant

Operating Temperature -35 to +85°C

Flame retardant (V0) and Black are available to order – please email


Inquire Now Next Products

Product Specification

Snap-In Supports with Male Threaded Connection

Material:PA66(natural color).

Fire rating:94V-2, sound insulation, not easy to age.

Thread the male connection into a tapped hole and snap the other end into a board for a secure hold that can be released for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.


ProductPictures

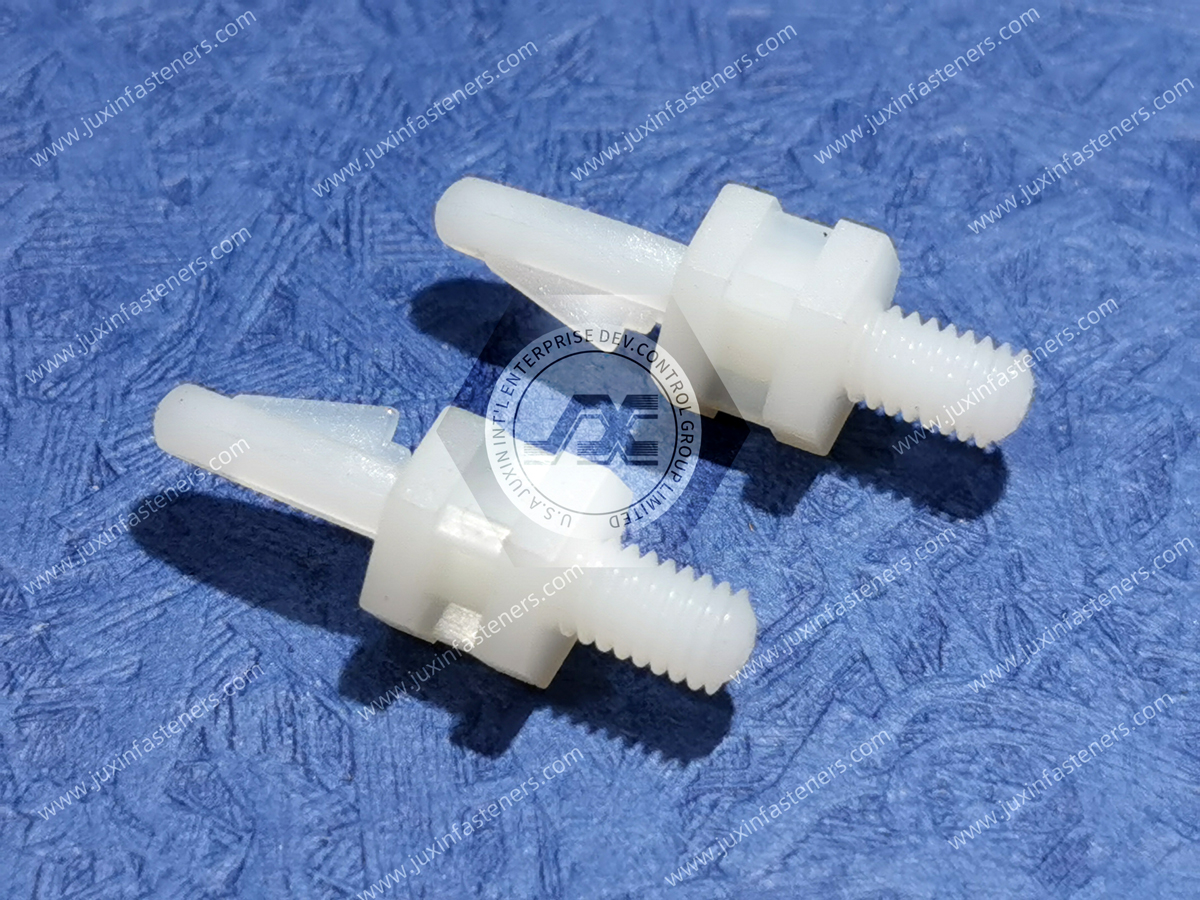

Nylon Studded Circuit Board Support
