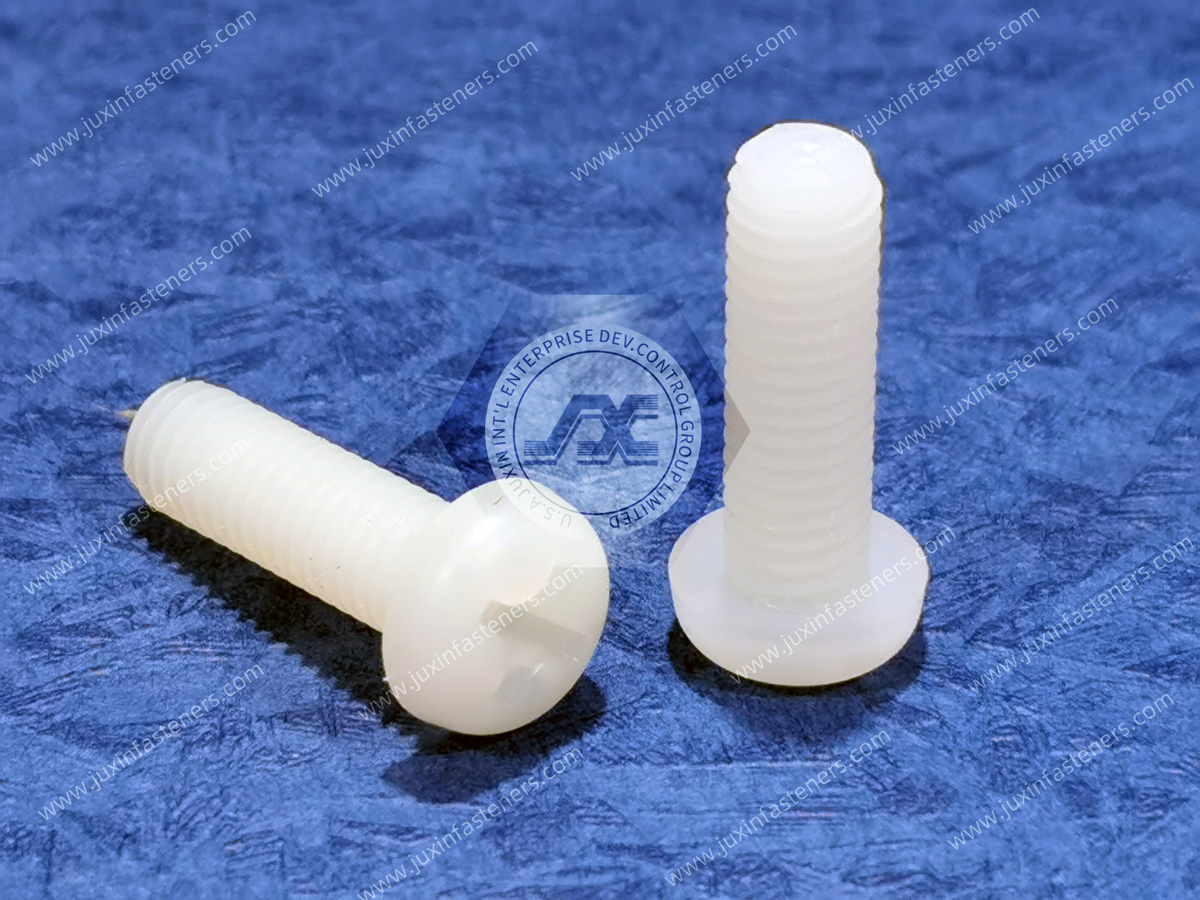

Name: Nylon Pan Head Phillips Screws
Size: M2,M2.5,M3,M4,M5,M6,M8
Material: PA66, PA+50%GF, PA+50%GF, PEEK, PVDF, PPS, PTFE, PP, PVC, PC.
Standard:ISO7045,DIN7985,ANSI/ASMEB18.6.3,JISB1111-96
Nylon pan head screws are chemical and oil resistant, nonconductive, and lightweight. Exposure to moisture may cause them to expand. Length is measured from under the head.
1. PA66-polyamide, insulation, environmental protection, acid and alkali resistance,
operating temperature: 80-120°c flame retardant grade: UL94V-2/UL94V-0
2. PVDF-polyvinylidene fluoride, use temperature: 140°c flame retardant grade: UL94V-0
3. PPS-polyphenylene sulfide, use temperature: 200°C flame retardant grade: UL94V-0
4. PP-polypropylene, use temperature: 260°C flame retardant grade: UL94HB
5. PVC-polyvinyl chloride, use temperature: 55°C flame retardant grade: non-flammable
6. PC-polycarbonate, use temperature: 115°c flame retardant grade: UL94V-2
7. PA+GF-glass fiber reinforced nylon, use temperature: 105°c flame retardant grade: UL94HB
8. PEEK (engineering plastic)-polyetheretherketone, use temperature: 180°c flame retardant grade: UL94V-0
1. Material: Fire-proof level PA66（Nylon66) UL94-V2，PA66(Nylon66) UL94-V0
2. Color Available: White、Black、Natural
3. ROHS Compliant Certification
Remark: All products manufactured in UL94 -V2 Nylon 66
or UL94 -V0 Nylon 66 are natural colors as standard. Unless otherwise
noted. These materials can be colored to match your requirements.
