Nylon Locking Circuit Board Support JX-GLSP1

Name: Nylon Locking Bayonet with Locking Arrowhead

Material:PA66(natural color).

Fire rating:94V-2, sound insulation, not easy to age.

Wings add tension to strengthen the hold in a hole. The other end is releasable for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.

Our Quarter-Turn Locking PCB Support Posts range features a locking mechanism that securely holds it in place by turning 90 degrees. They have a 4.00mm top hole and are compatible with a top panel thickness of 1.57mm and a bottom panel thickness of 0.8-1.57mm.


Inquire Now Next Products

Product Specification

LOCKING CIRCUIT BOARD SUPPORT QUARTER TURN

Reference NLCBS-9

Top Hole: 4.00mm

Top Panel Thickness: 1.57mm

Bottom Hole: see PDF for details

Bottom Panel Thickness: 0.80-1.57mm

Locking Support Quarter Turn

Nylon 66 natural

UL94-V2

RoHS Compliant

One end locks into the chassis, and the other end locks into the PC board versions that have smaller footprints, freeing up board space

Sturdy Support versions have greater contact area for additional support

Material: Nylon, UL 94V-O

Operating Temperature: 0ºF to 140ºF (-20ºC - 60ºC)

Flame retardant (V0) is available to order – please get in touch with us.


ProductPictures

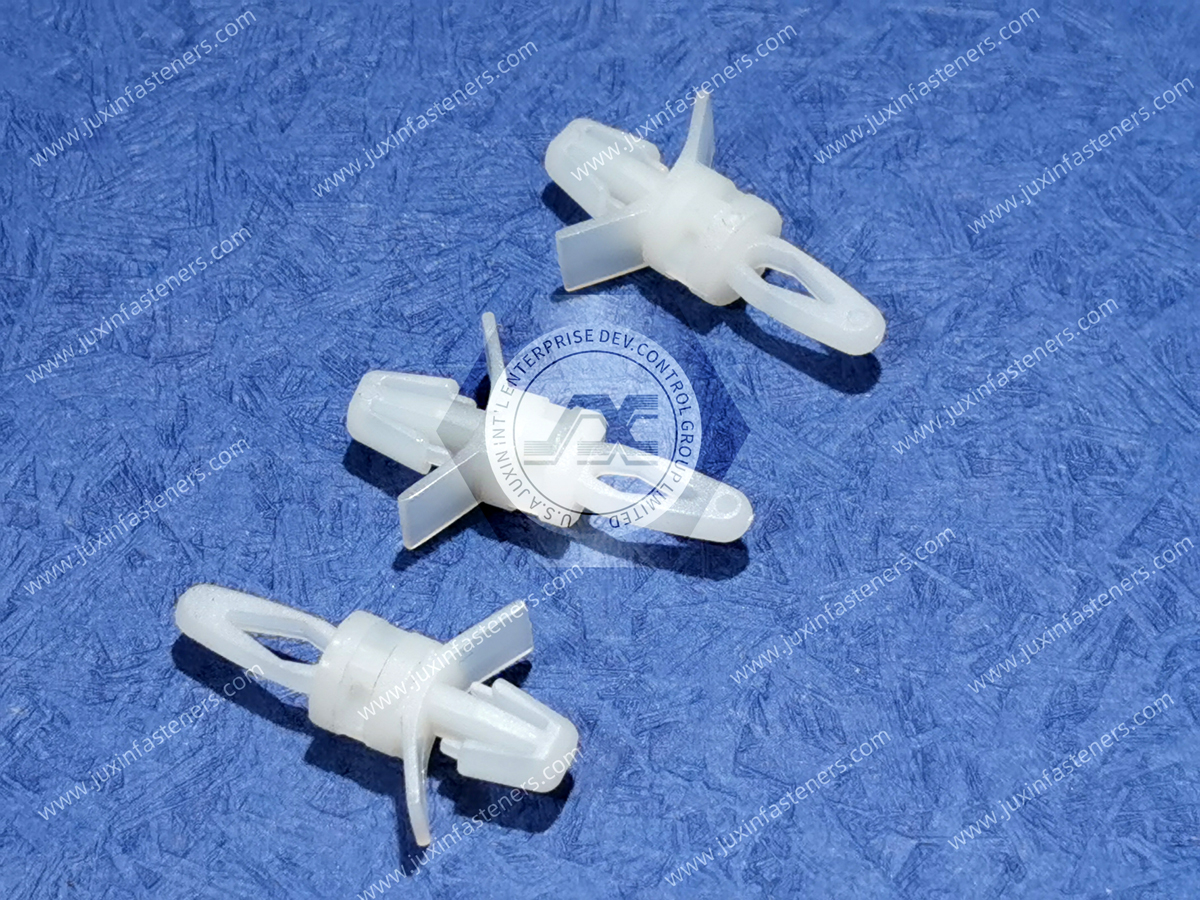

Nylon Locking Circuit Board Support JX-GLSP1
