Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC
681e212ed4672

Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

Self-Clinching Fasteners, Self-clinching (captive) fasteners provide an effective and economical way to attach components without the need for welding. Self-clinching fasteners are positioned to the accuracy of the part’s installation hole location and are designed to be pressed into these holes that have been previously punched, drilled, or machined into a part.  Subsequently, this makes them an integral part of the manufactured assembly.

 Contact us for more information regarding our quality self-clinching captive fasteners or contact us at adelajonly@gmail.com, we would be happy to assist you with any questions that you may have. If you are in the market for a captive fastener of any type, we have (or can get) what you need.


Inquire Now Next Products

Product Specification

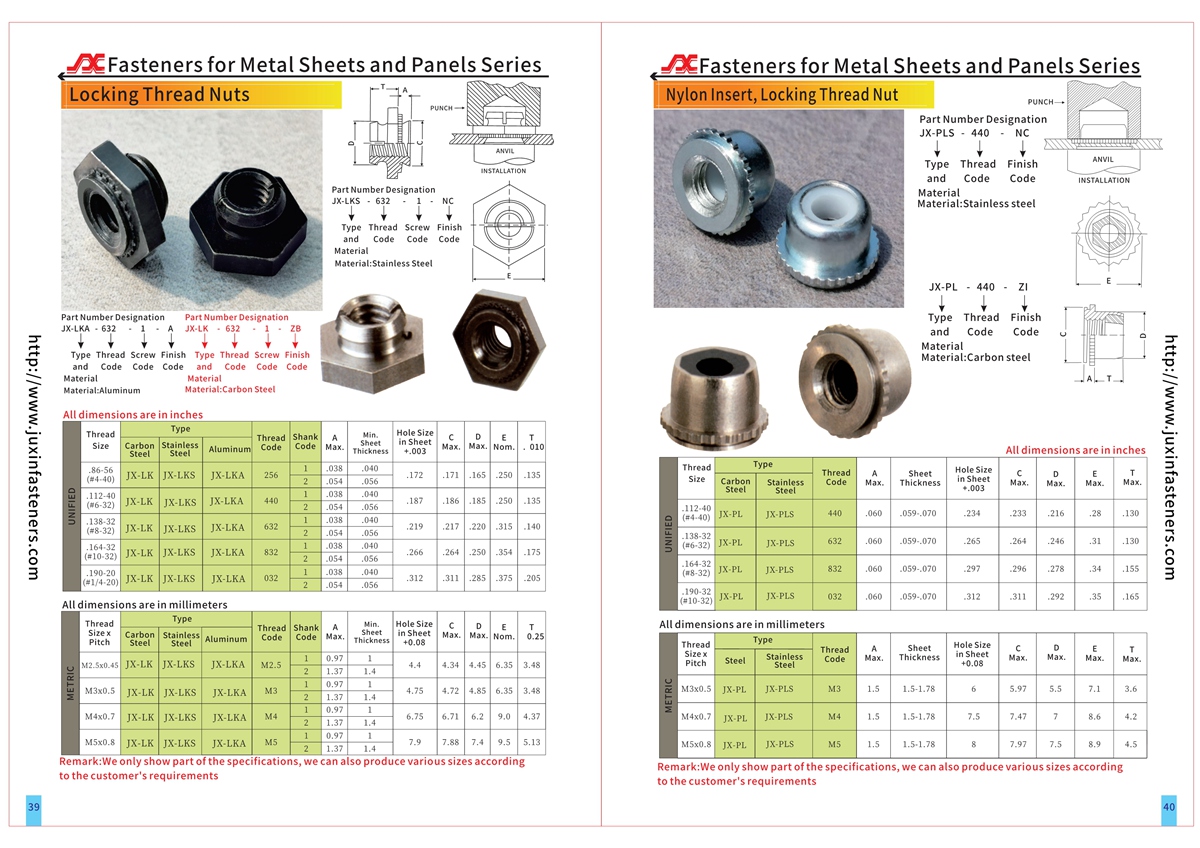

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 39-40Page See more product details.

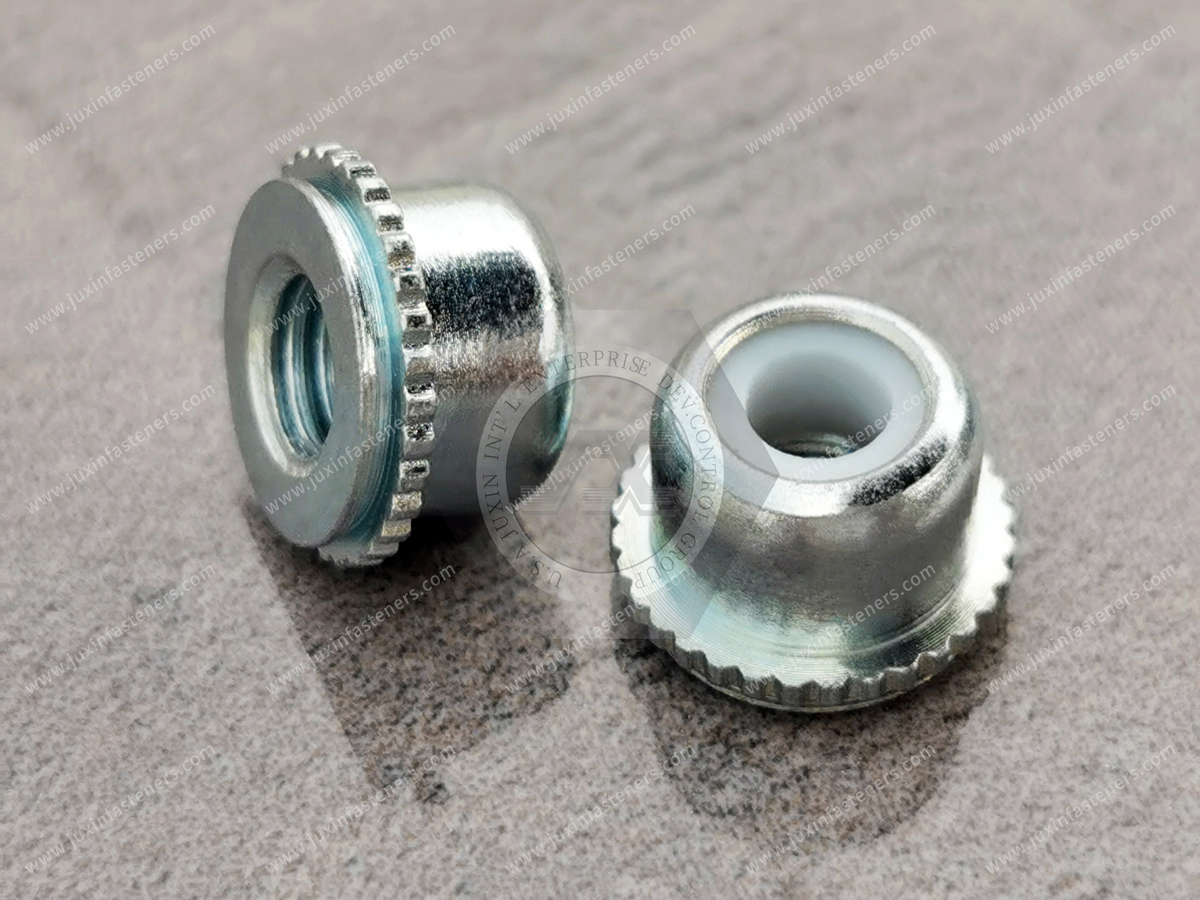

White nylon locking element (for unified fasteners) prevents thread galling .locking performance meets MIL-N-25027. Thread sizes #4 to #10 and M3 to M5.The thread locking torque performance of Type JX-PL and JX-PLC self-clinching fasteners is equivalent to applicable specifications. A nylon hexagonal element provides a reusable, non-metallic prevailing torque thread lock. The strong knurled collar receives the installation force and resists torque. The spin resistance of the knurl greatly exceeds the torque that can be exerted by the self-locking feature. As the knurled collar is embedded in the sheet, the undercut cavity beneath the collar is filled with displaced sheet material, thereby captivating the fastener in the sheet. Unified fasteners have a blue or white nylon locking element and metric fasteners have a black or white and blue nylon locking element.

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC


Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC

Nylon Insert, Locking Thread Nuts – Type JX-PL, JX-PLC
