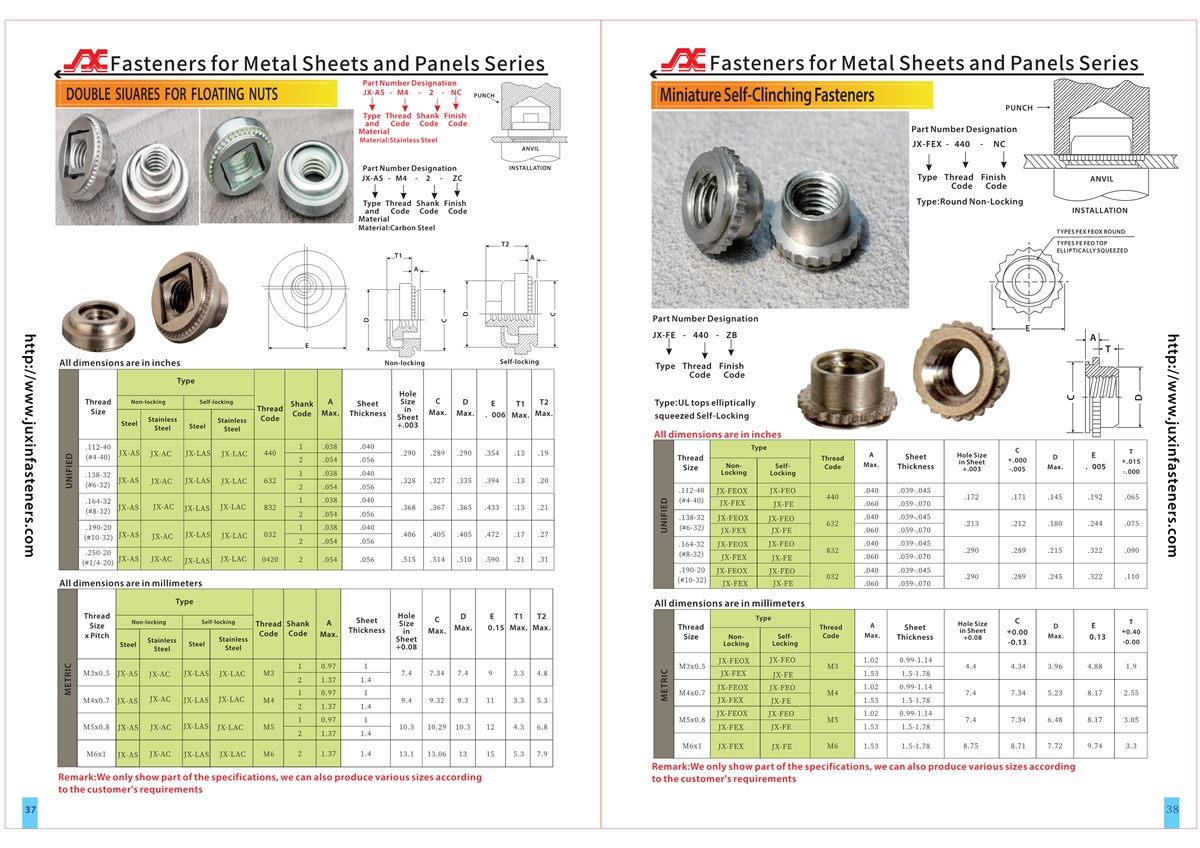

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 37-38Page See more product details.
Strong threads in a minimum of space, Available with locking or non-locking threads, Can be installed into sheets as thin as .020"/0.76mm. Thread sizes #4 to 1/4" and M2 to M6.Miniature fasteners fit into a minimal space and provide strong, reusable threads. Types JX-FE, JX-FEO and JX-UL are self-locking. Types Type JX-UL self-locking nuts meet locking torque requirements specified herein. Some sizes of JX-FE, JX-FEO, and UL can be ordered to specifications. Types JX-FEX, JX-FEOX, and JX-U have free-running class 2B/6H threads. Miniature fasteners provide an immediate visual indication of when proper installation has been accomplished. A strong, knurled collar, which is completely embedded in the sheet, guarantees against the rotation of the fastener in the sheet. The torque-out resistance of the knurl greatly exceeds the torque that can be exerted by the self-locking feature. When this collar is embedded in the sheet, the undercut cavity beneath the collar is filled with displaced sheet material thereby developing pushout resistance. A dry-film lubricant applied to these fasteners provides the smooth, non-galling prevailing torque performance necessary for reliable locking and for reusability.
