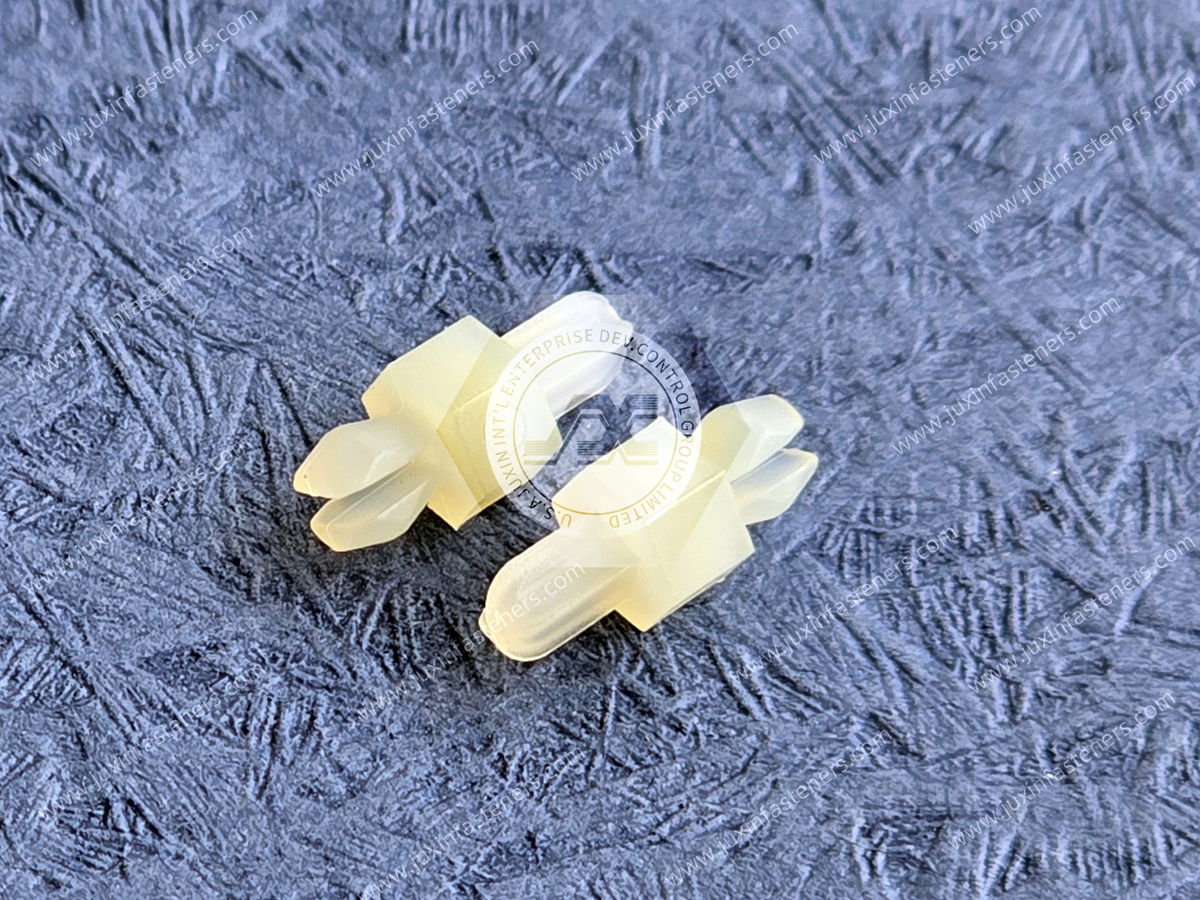

Mini Self-Threading Circuit Board Support JX-GMSPMST

Mini Self-Threading Circuit Board Support

Material: PA66 UL94V2 (GMS-01)

Top Hole: 3.18±0.05mm

Panel Thickness: 1.57mm

Bottom Hole: Self-thread a #4 or

M3 Threaded Hole or Nut

Panel Thickness: 1.6mm

PCB Support - Spacer - Male Thread, Self-Tapping, Non-Locking Two Prong

Special Spacer

These special spacers are used to support a wide range of applications, especially when conventional fastening solutions reach their limits.

Inquire Now Next Products

Product Specification

PCB Support Post - Dual-Locking/Metric/Mini

In stock

These spacers have a locking teardrop design. These snap into tiny holes, leaving a minimal protrusion over the panel. Available in many sizes and styles

Mini Dual Locking Support Posts

Small dual locking support post, suitable for joining PCBs.

Available for various hole sizes and panel thicknesses.

Our range of mini dual locking support posts 1M teardrop is designed to be used with a top and bottom hole size.

Top Hole: 3.18±0.05mm

Panel Thickness: 1.57mm

Bottom Hole: Self-thread a #4 or

M3 Threaded Hole or Nut

Panel Thickness: 1.6mm

Mini dual support posts 1M - Teardrop

Natural Nylon 66

UL94-V2

RoHS compliant

ProductPictures

Mini Self-Threading Circuit Board Support JX-GMSPMST
