Mini screw hose clamp(MC)

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Mini screw hose clamp(MC)
6528eda455b25

Mini screw hose clamp(MC)

Material:Stainless steel SUS304.316,Carbon steel ,Brass

Inquire Now Next Products

Product Specification

Mini-clamps are designed to provide a perfect seal on the small hoses and soft m aterial hoses used for fuel and emission lines. The non-perforated band eliminates any risk of damage to the hose and all sizes will close to a perfect circle.


These clamps are made especially for small Hoses like vacuum hoses, Fuel Lines, Wastegate Lines, etc. Because of their screw thread, they can be pulled very tight. Thereby a firm hold is guaranteed.
The IFE Mini Clamp features rolled band edges, preventing hose damage. The bridge under the housing optimizes hose protection and creates a more even clamping force distribution. The nut is retained even in cases when the 7 mm hexagon head screw is removed. The screw comes with a hexagon head. Band width 9 mm. This clamp is available in sizes from 6-8 mm up to 24-26 mm. It offers many benefits: Standard (stock) product is all 304 series stainless steel material code W4
The optional material is all zinc-plated carbon steel or material code W1. Free from chromium VI and will withstand a minimum of 72 hours of salt spray. Made according to DIN 3017
The clamp is well suited for small diameter joints with thin wall hoses like fuel hoses

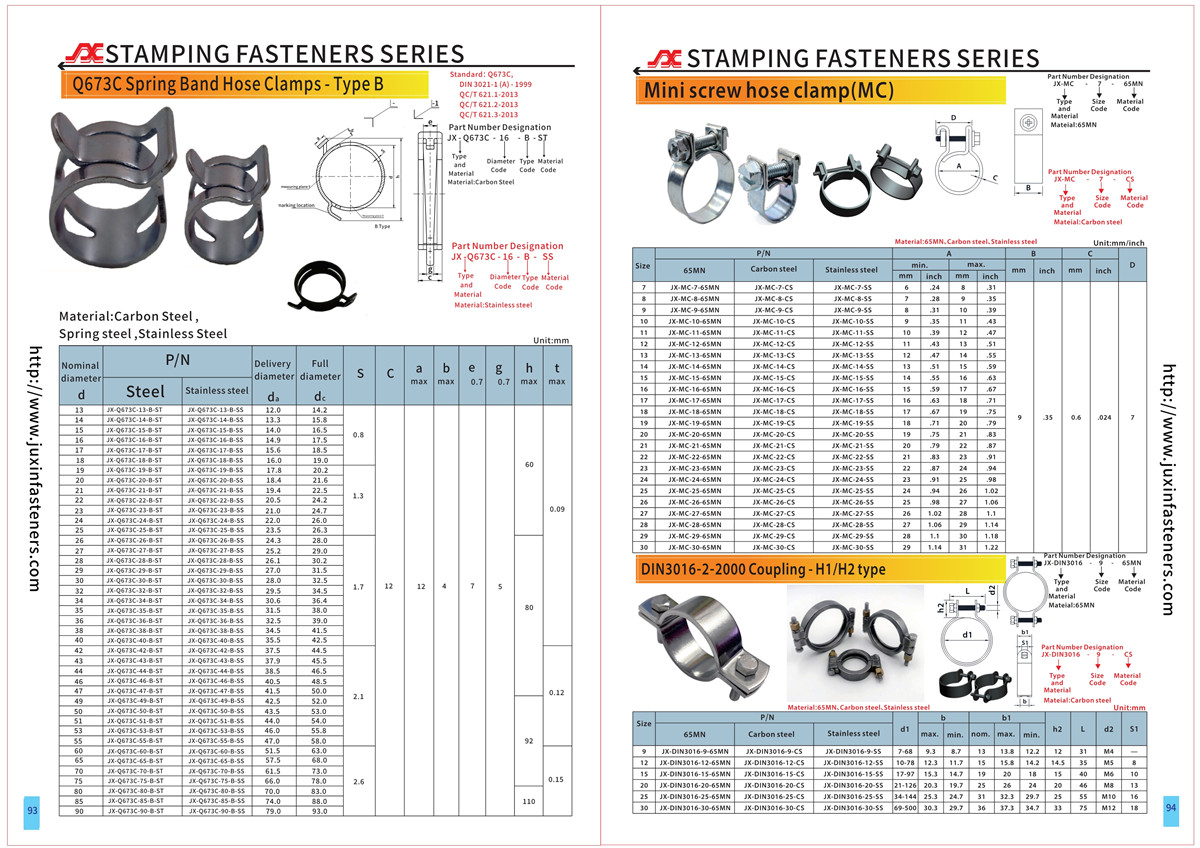

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 93-94 Page See more product details.


ProductPackaging

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.

ProductPictures

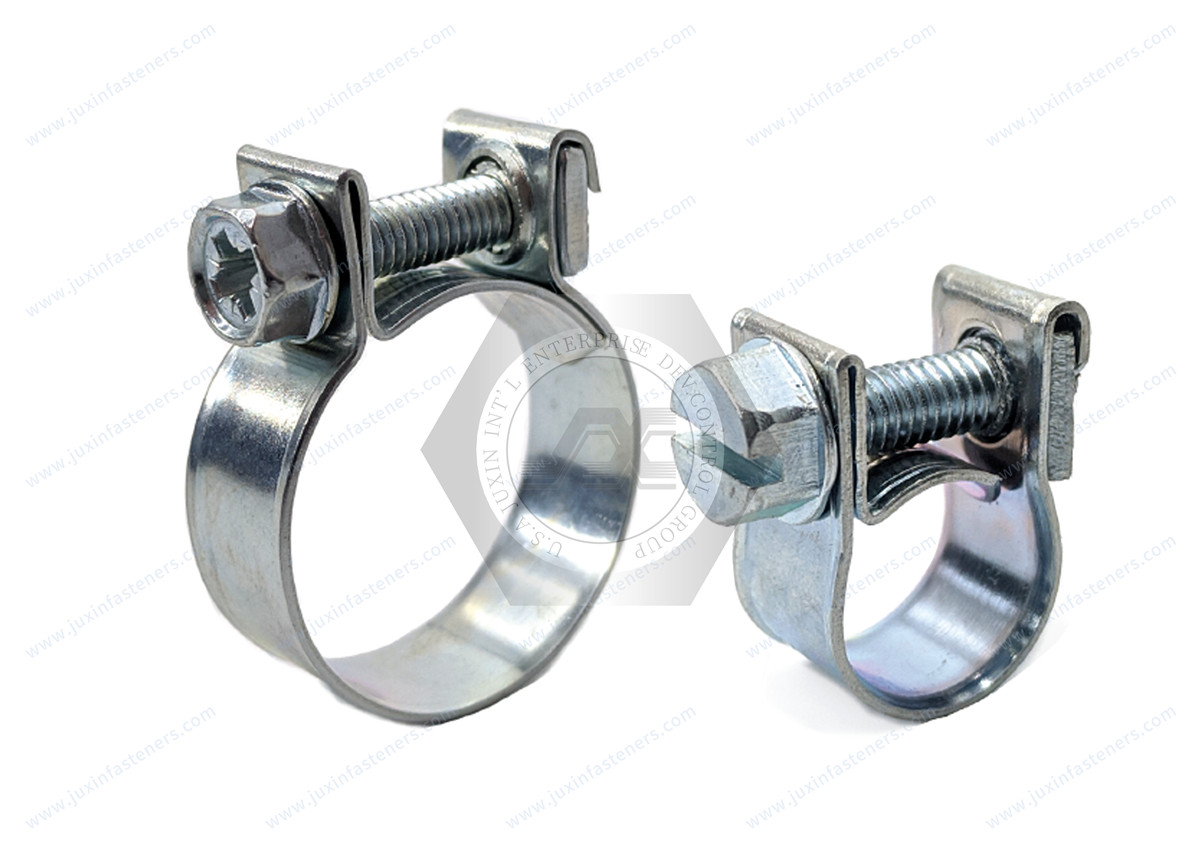

Mini screw hose clamp(MC)Mini screw hose clamp(MC)
