Metal Flange Prevailing torque type all-metal hexagon nuts with flange

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Metal Flange Prevailing torque type all-metal hexagon nuts with flange
64117dbb9c8a6

Metal Flange Prevailing torque type all-metal hexagon nuts with flange

Material: Carbon Steel

Standard: DIN6927-1983 、GB6187、Q330、Q331

Inquire Now Next Products

Product Specification

Name: Metric Low-Strength Steel Spring-Stop Locking flange nuts

Material: Carbon steel

Class: Class 5, 6, 8, 10

Surface treatment: environmental protection color zinc, environmental protection blue zinc, zinc-nickel alloy, dacromet, black zinc, yellow zinc

Size: M5, M6, M8, M10, M12, M14, M16, M20


These locknuts, also known as Fuji locknuts, maintain their holding power with reuse longer than nylon-insert locknuts. They have a spring ring that creates tension as you tighten the nut, keeping them in place. Yet, their design makes them easy to install and remove. All stand up to high heat and vibration. Zinc-plated, they resist rusting in wet or dry environments.


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 131-132Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

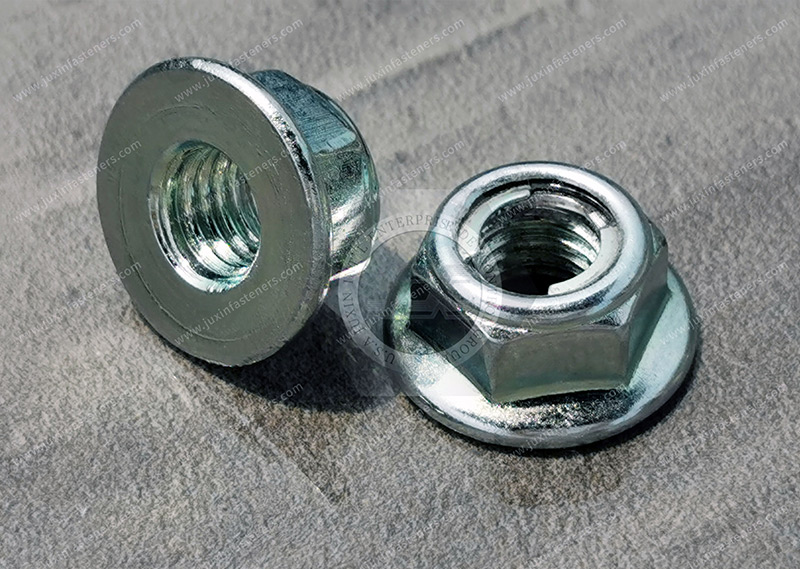

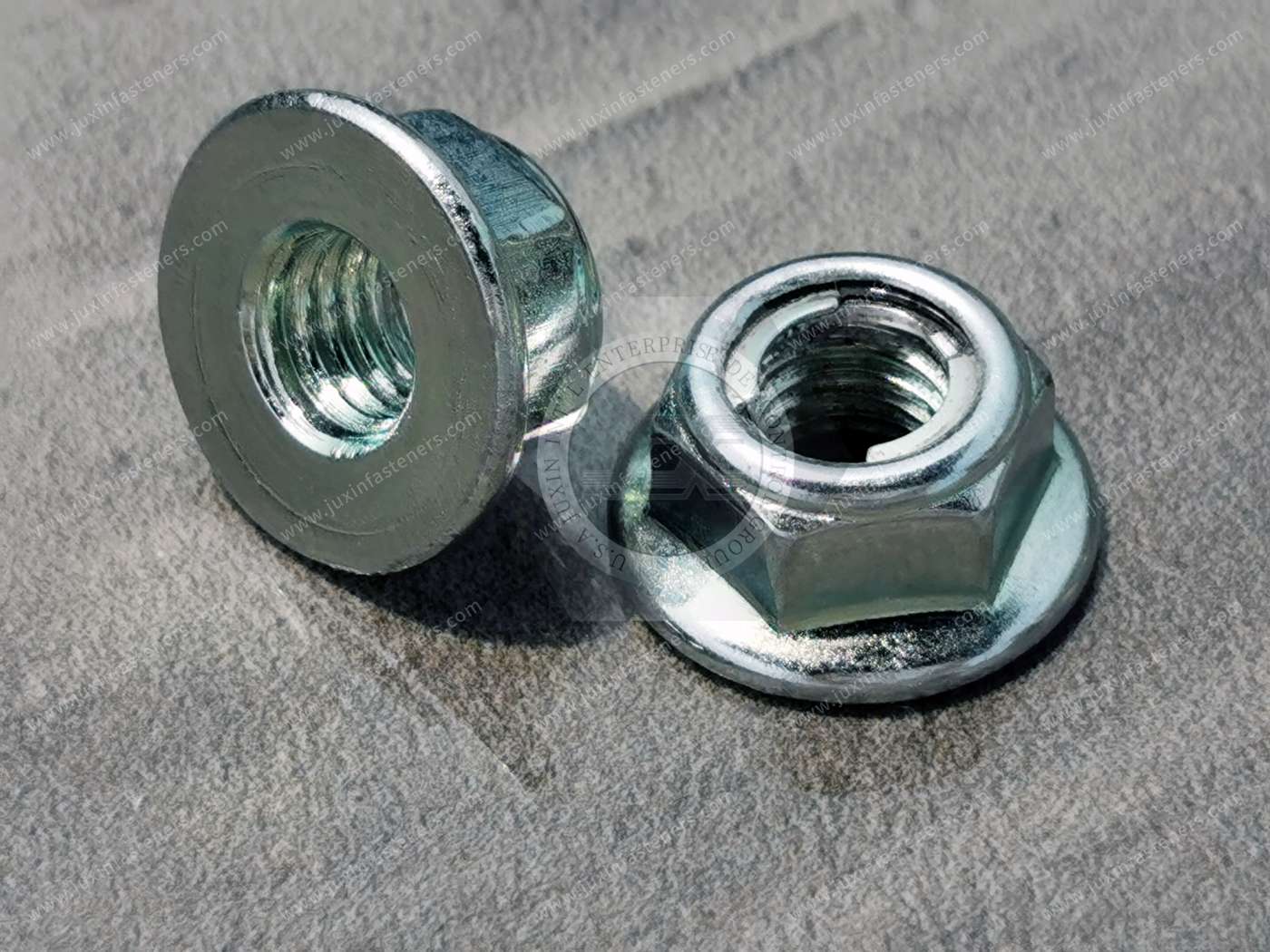

Metal Flange Prevailing torque type all-metal hexagon nuts with flange


Metal Flange Prevailing torque type all-metal hexagon nuts with flange
