Locking Wire Saddle, Arrowhead Mount JX-1201-KWS

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Locking Wire Saddle, Arrowhead Mount JX-1201-KWS
68a839dea0ae8

Locking Wire Saddle, Arrowhead Mount JX-1201-KWS

Name: Wire Saddle&Wire Saddle, Wide Wire Saddle, Non-Locking, Snap Lock, Arrowhead, PA66 UL94V2, PA66 UL94V0, PA6 UL94V2

Saddle-type strain relief, nylon strain relief

Material: PC board clamping sleeve-JX-1201-KWS type. Qualified NYLON66 (natural color), fire rating 94V-2, not easy to age, high insulation.

Usage: baseboard drilling, first clip the wire sleeve fixed, and then want to fix the wire into the set, from both sides of the gently buckle, you can firmly buckle the wire, can be used for any direction and angle of the fixed wire.

Our range of wire saddles is available in different variations and shapes. Locking wire saddle or non-locking wire saddle, side entry or top entry, snap-in, with adhesive or screwed.

Decide for yourself so that the right article can be found for every fastening material.


Inquire Now Next Products

Product Specification

Mount to a surface and add a cable tie to secure a bundle.

Two-way mounts allow ties to be inserted from opposite sides, four-way mounts allow ties to be inserted from any side, and any-way mounts allow ties to be inserted from opposite sides and have a head that spins to route the cable in any direction.

Screw-in mounts require a fastener. Adhesive-back mounts stick to any clean, smooth surface. Push-in mounts fit into a drilled hole. Magnetic-back mounts attach to steel beams, joists, and rails. Clip-on mounts grip onto panels without drilling holes or adding adhesive. Adhesive-ready mounts require an adhesive to create a stronghold. Weld-on mounts are designed for use on machines or heavy equipment.

Mounts that meet UL 94 V-0 stop burning within 10 seconds. Mounts that meet UL 94 V-2 stop burning within 30 seconds.

Style P has a ridged shaft to mount in concrete, brick, and stone.

The disposable curing bracket has temporary adhesive strips to hold the mount while the adhesive cures.


ProductPictures

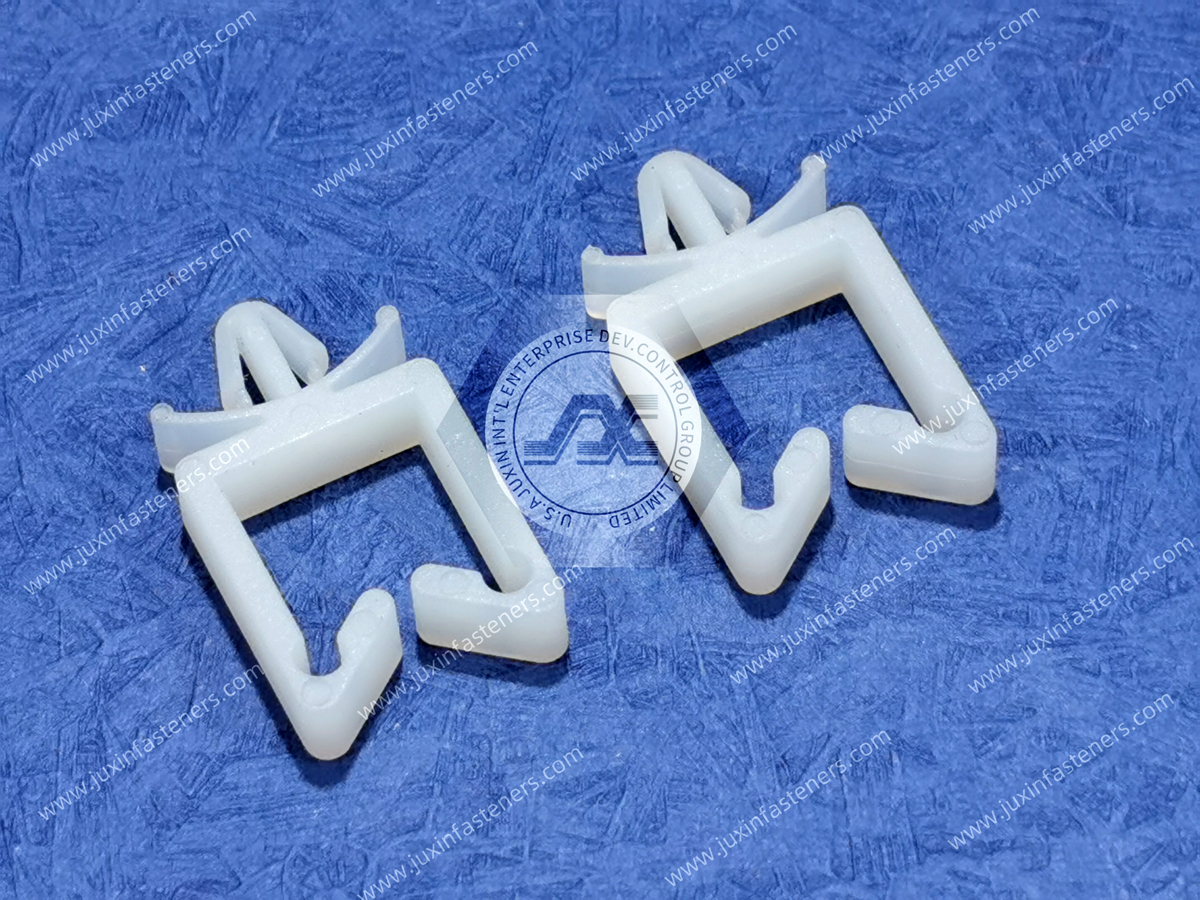

Locking Wire Saddle, Arrowhead Mount JX-1201-KWS
