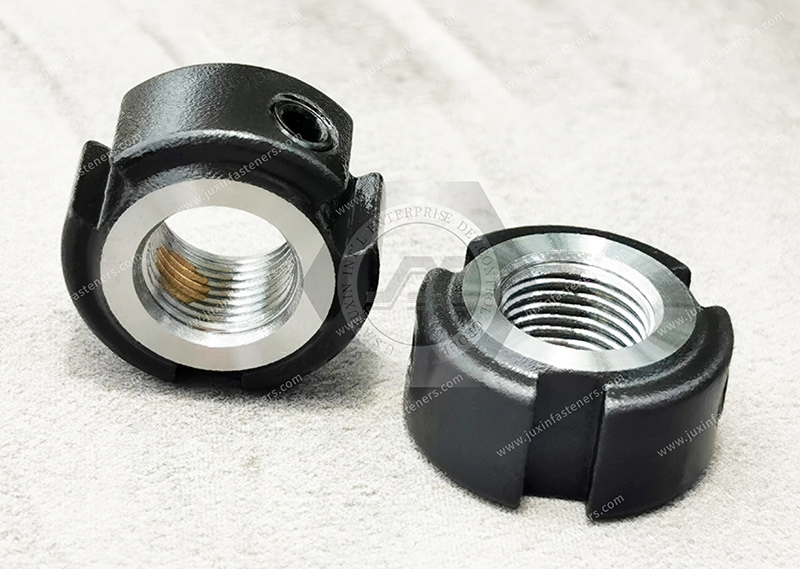

Locking nut JX-YCF Series

Material: SCM440(42CrMo4)

Inquire Now Next Products

Product Specification

Name: F-type tooth belly lock nut

Material: SCM440(42CrMo4)

Standard hardness: HRC28°~32°

Thread accuracy: ISO 4H

Plane deflection: 0.002mm~0.005mm

Surface treatment: blackened by sandblasting


YC/F type lock nut, starting from the locking copper thread is designed at an angle of 30 ° C and does not bear the axial load acting on the thread province.

When the nut is locked, the thread surface will not release the axial load and the nut will not be deformed. Three equally spaced locking brasses can be

YK adjusts the deviation of the pinch parts to be mounted on the shaft. Since the locking brass does not deform, the F-nut diameter can be disassembled and assembled several times.

The precision can be maintained even after disassembly and assembly.

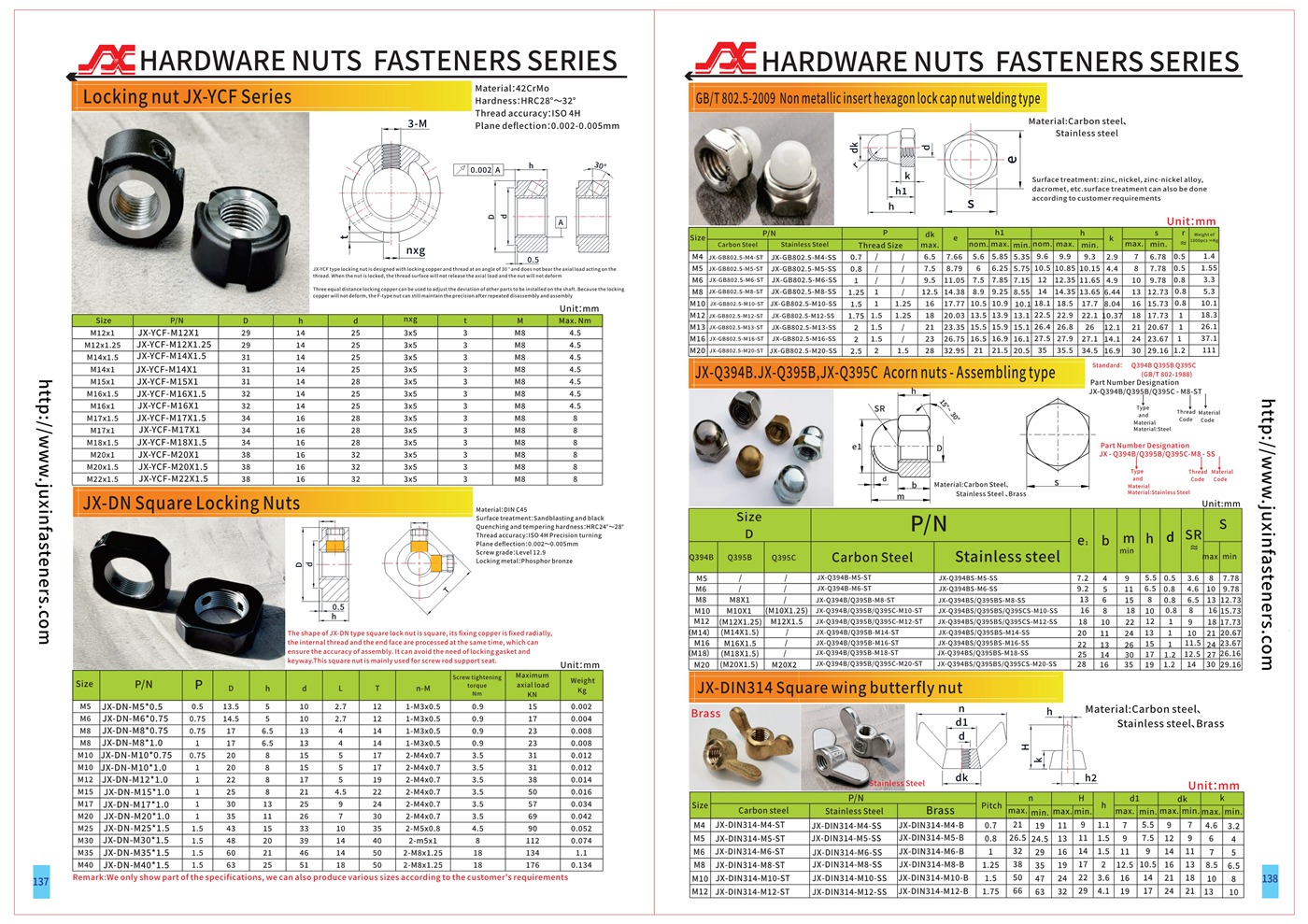

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 137-138Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

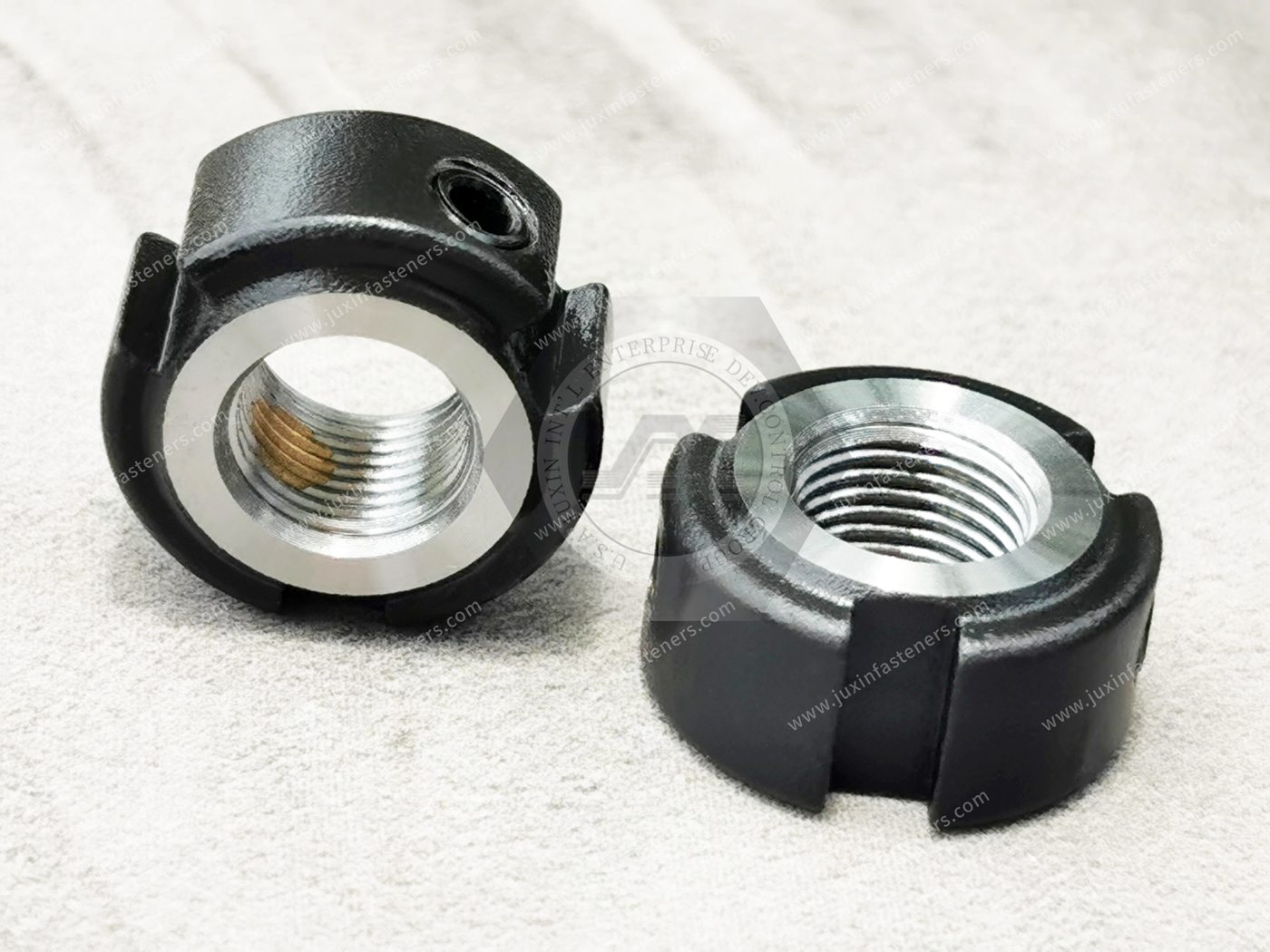

Locking nut JX-YCF Series


Locking nut JX-YCF Series
