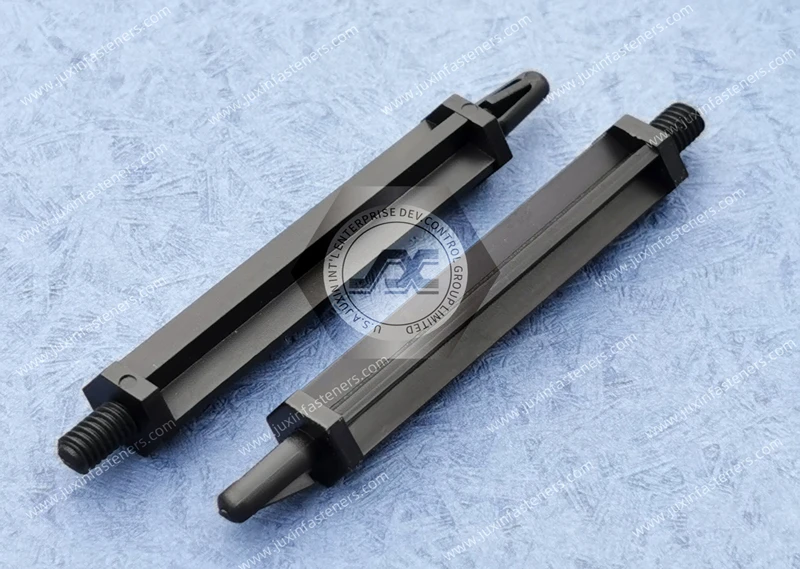

Locking Circuit Board Support Threaded JX-GMSS-M4

Locking Circuit Board Support Threaded JX-GMSS-M4

Locking Circuit Board Support Threaded JX-GMSS-M4

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Material: PA66 UL94HB (GMS-08); PA66 UL94V2 (GMS-01)


Inquire Now Next Products

Product Specification

Our wide range of PCB accessories offers an extensive selection of PCB Spacers, PCB Pillars, PCB Supports, and PCB standoffs to support, lock, space, or guide the PCB board.

Discover accessories for appliances (white goods), electrical cabinets, machinery or other equipment that contain PCB support.

Screw & Lock Support - Non-Locking, Bayonet Nose, Threaded Male

 In stock

These Screw and Lock Supports are a two-piece application, consisting of the pin and the retainer. They were designed to capture the PC board. The combination of the mating parts forms a completely enclosed nylon spacer. The use of a binding head type screw is recommended.


ProductPictures

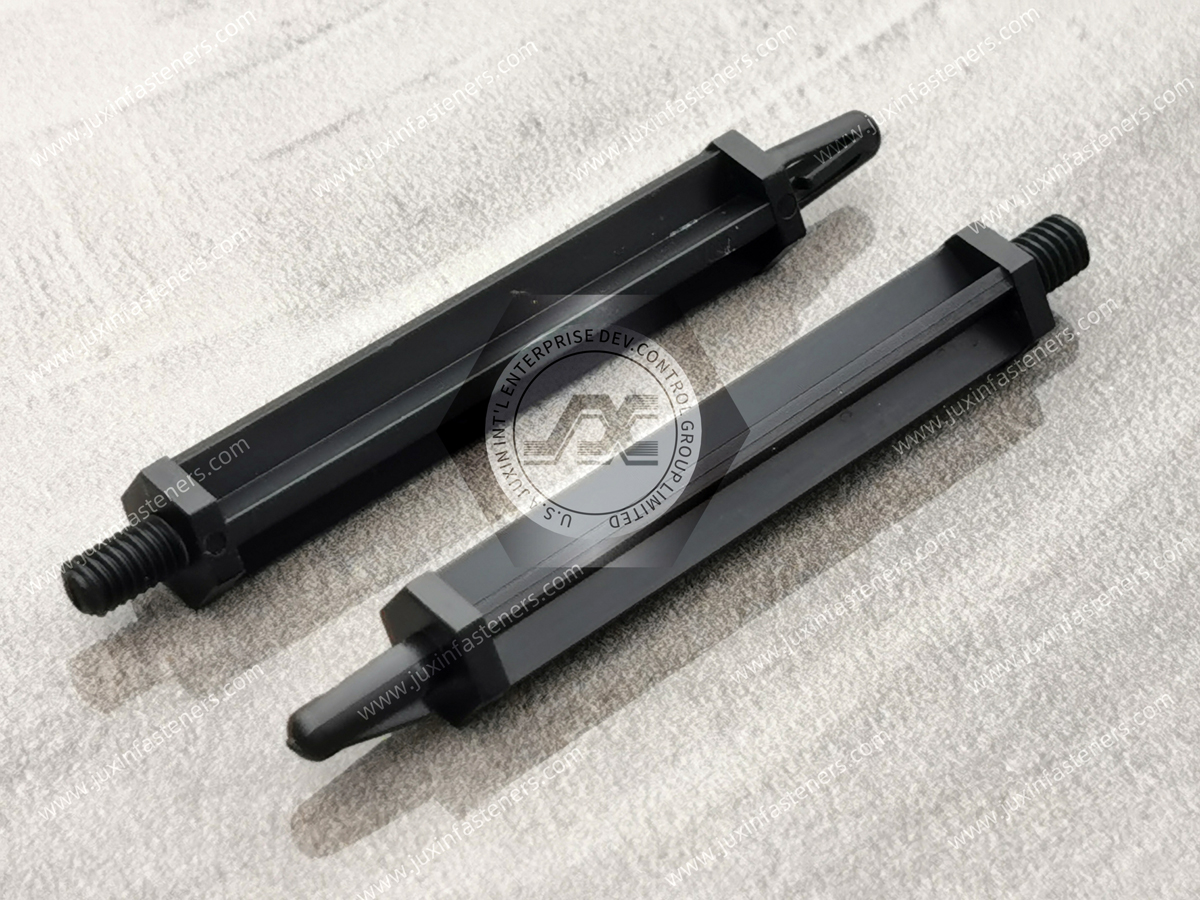

Locking Circuit Board Support Threaded JX-GMSS-M4
