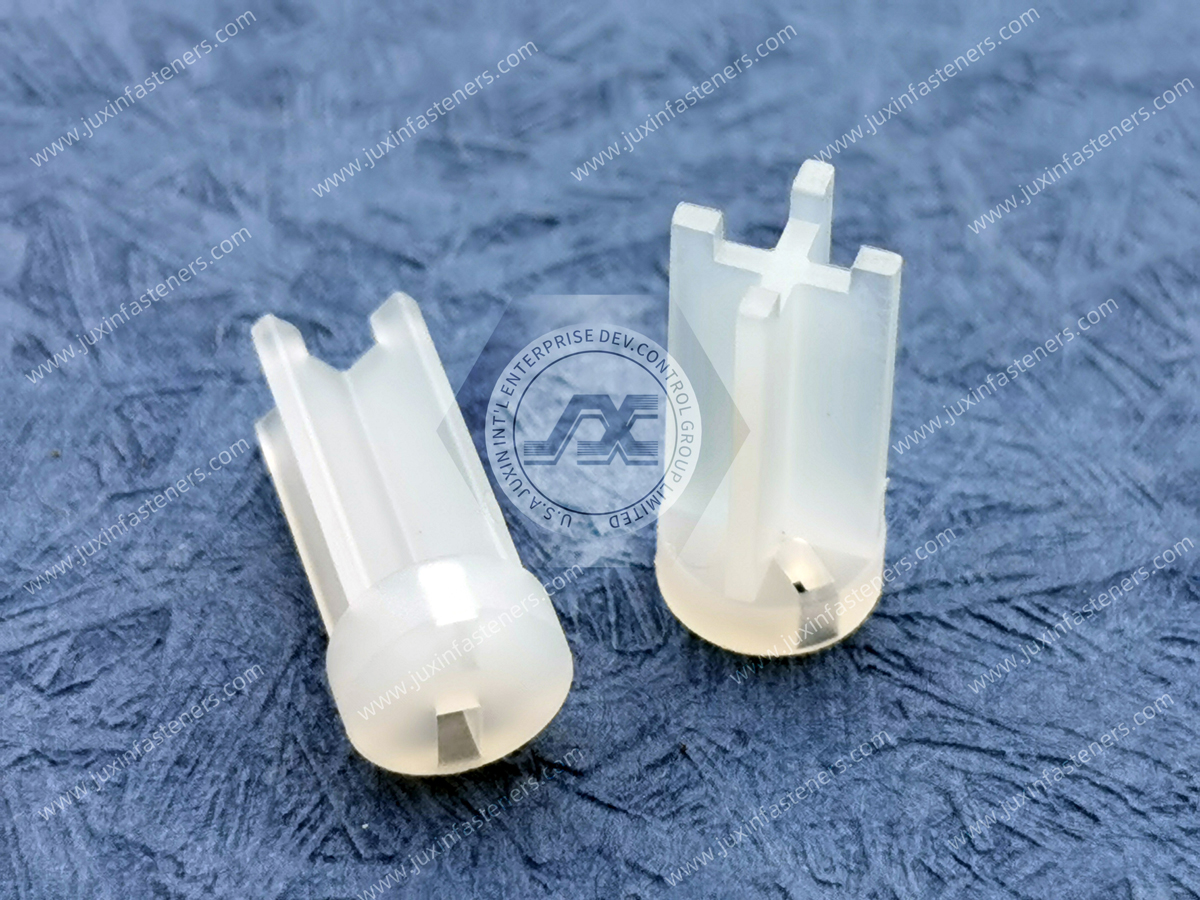

LED Spacer Type 2 JX-GLEDS2E

LED Spacer Type 2

Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)

LED Spacer Type 2

LED Spacer, Round, LED - TYPE: T-1 (3mm), T-1 3/4 (5mm), Length: 4.8 - 25.4mm, PA66 UL94V2, PA66 UL94V0

LED Hardware

Here, you can find a selection of LED spacers tailored to various requirements.

LED spacers in round, square, or rectangular design, as material in nylon PA66 UL94V2, PA66 UL94V0, PA6 UL94V2, or flame retardant PVC, in lengths 2.0 - 35.0 mm.

Just make your own decision to determine the right product for your application.


Inquire Now Next Products

Product Specification

LED Spacers - Round, Imperial Spacers, Molded, Natural, T-1 3/4 In stock Manufacturing

These LED Spacers fit a standard T-1 3/4 LED. They space the LED from the surface of the board. They also minimize shifting and height variation, ensuring product uniformity and ease of production. They are natural in color and made of UL94 V-2 rated Nylon.

LED SPACER ROUND TYPE 2E - NYLON 66

Reference NLEDS2E

Nylon round LED spacer for use with T-1 3/4(5mm) LED; available in lengths of 4.8-25.4mm

RoHS Compliant

Available in Natural Nylon 66 &

Natural Nylon 66 Flame Retardant V0

For use with T-1 3/4 (5mm) LED

Lengths (A) - 4.8 - 25.4mm

See diagram for dimensions: (B)-6.0mm; (C)-5.1mm; (D)-1.5mm; (E)-1.0mm; (F)-2.0mm

Sold in packs of 1000 units
