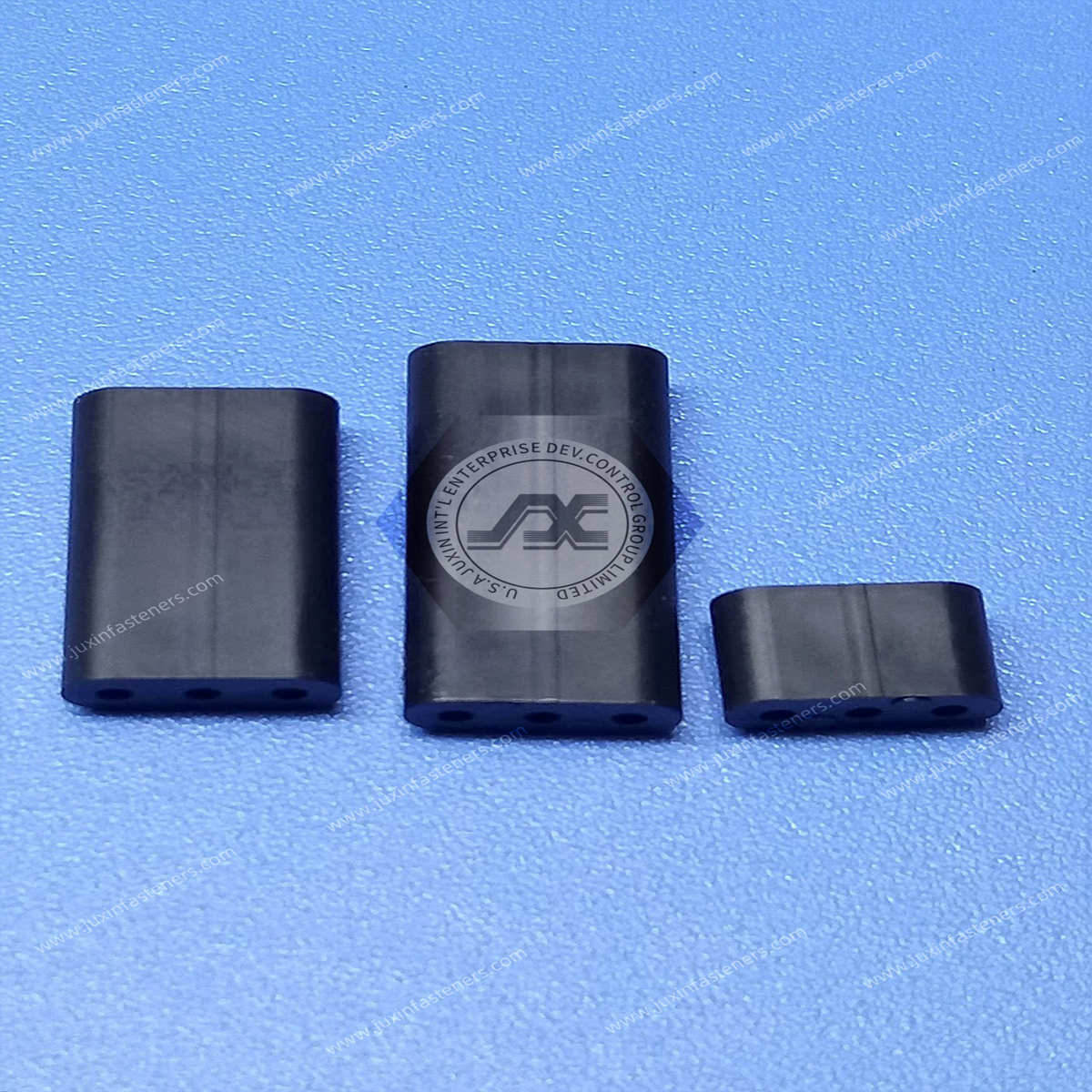

LED Spacer Type 1 JX-GLEDS3

LED Spacer Type 1

Material: PVC FLAME RETARDANT (GMS-40)

LED Spacer, Rectangular, LED - TYPE: T-1 (3mm), T-1 3/4 (5mm), Length: 4.8 - 26.5mm, PVC-Flame Retardant

LED Spacer Type 1

LED Spacer, Round, Rectangular, LED - TYPE: T-1 (3mm), T-1 3/4 (5mm), Length: 4.8 - 30.0mm, PVC-Flame Retardant

LED Hardware

Here, you can find a selection of LED spacers tailored to various requirements.

LED spacers in round, square, or rectangular design, as material in nylon PA66 UL94V2, PA66 UL94V0, PA6 UL94V2, or flame retardant PVC, in lengths 2.0 - 35.0 mm.

Just make your own decision to determine the right product for your application.


Inquire Now Next Products

Product Specification

LED Spacers - Square In stock manufacturing

These LED Spacers come in two styles to fit both T-1 and T-1 3/4 LED fixtures. They space the LED from the surface of the board. They also minimize shifting and height variation, ensuring product uniformity and ease of production. The square design is suitable for angled applications. They are black and made of PVC.

The "Self-Aligning" mounts for Bi-Lead T-1 and T-1 3/4  LED's are uniquely designed and feature an internal tapered barrier that guides the LED's leads through the device to assure positive self-alignment on 0.100" (2.54mm) centers. The design also eliminates the possibility of crimping or shorting of the LED leads. No special tooling is required to preassemble printed circuit boards efficiently. Molded from Nylon material and UL rated 94V-2, these mounts provide height control from 0.120" to 0.925" (3.04mm to 23.49mm) with 0.020" (0.5mm) bosses that lift the mount to serve the dual purpose of heat dissipation and post-solder clean-up.

These solid devices are molded from Black PVC material and are UL rated 94V-0. Available in lengths ranging from 0.120" to 0.925" (3.04mm to 23.49mm), these components include special features that separate and retain component leads, facilitate PCB mounting, and are suitable for use with lamps, resistors, transistors, diodes, capacitors, and other electronic components.


ProductPictures

LED Spacer Type 1 JX-GLEDS3
