Key Slot with Locking Bayonet Nose

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Key Slot with Locking Bayonet Nose
68b66b9ba2e41

Key Slot with Locking Bayonet Nose

Name: Dual Locking Spacer

Material: PA66 UL94V2 (GMS-01)

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: See Mounting

Key Slot Detail

Panel Thickness: 1.57mm

Spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.

Furthermore, we offer different hole diameters, lengths, and plate thicknesses.

The critical slot with a locking bayonet nose is supplied in natural UL94 V2 nylon 6/6 RMS-01. It is used to fix different dimensions of standoffs and fasteners to the circuit board. It is also applicable to panels. It is as strong as studs with metal inserts.


Inquire Now Next Products

Product Specification

PCB Support - Spacer - Locking Bajonet with locking Two Prong and Keyslot, Keyhole

The key slot with a locking bayonet nose is supplied in natural UL94 V2 nylon 6/6 RMS-01. It is used to fix different dimensions of standoffs and fasteners to the circuit board and is also applicable to panels. It is as strong as studs with metal inserts. The arrowhead is a convenient feature, allowing easy fixing and removing options.

Applications and Benefits of Key Slot with Locking Bayonet Nose

Supplied in UL94 V2 nylon 6/6 RMS-01/.

It is compatible with fixing different dimensions of standoffs and fasteners into the circuit board.

It is also applicable in panels of 2.4mm and 1.57mm thickness.

The arrowhead is a suitable design for efficiently fixing and removing options.


ProductPictures

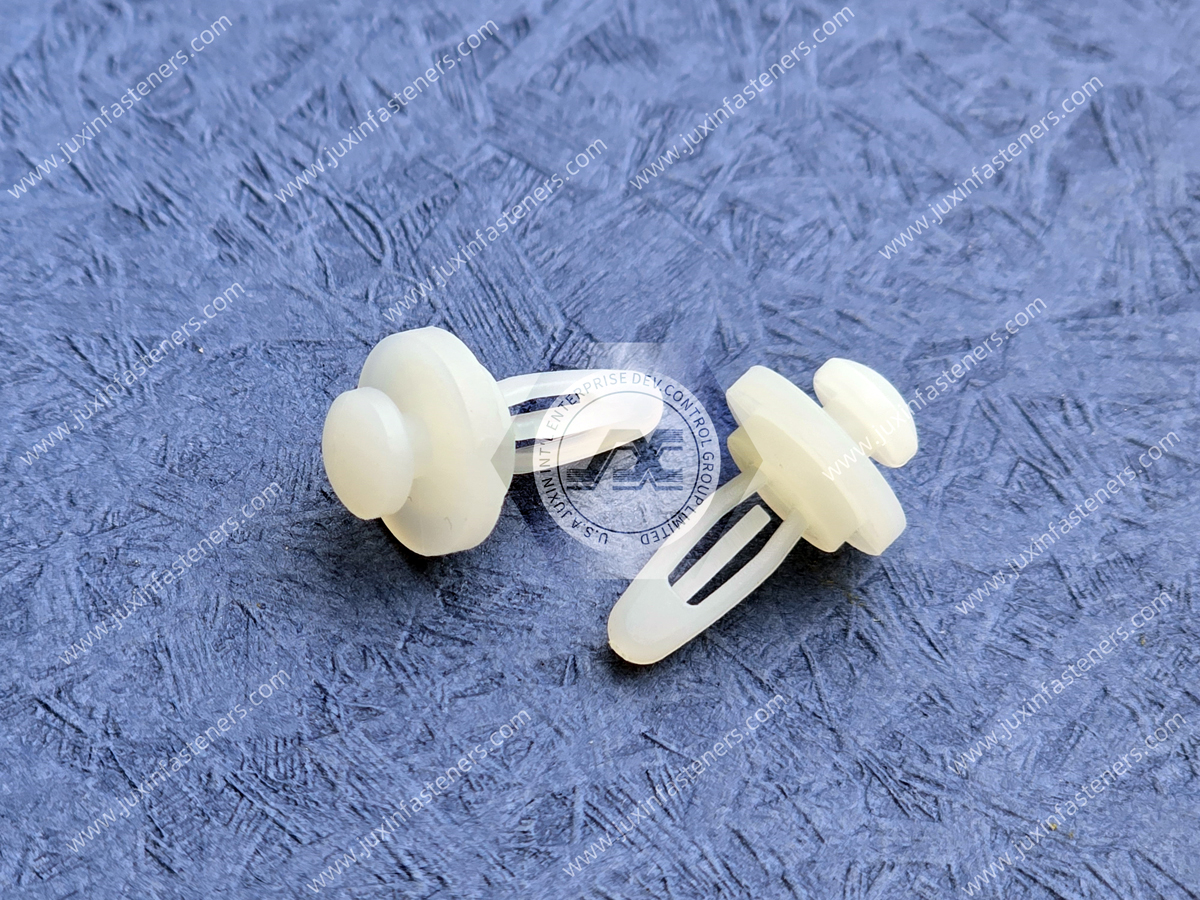

Key Slot with Locking Bayonet Nose
