JX-SR type radial precision lock nut

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - JX-SR type radial precision lock nut
6412ac6d17c41

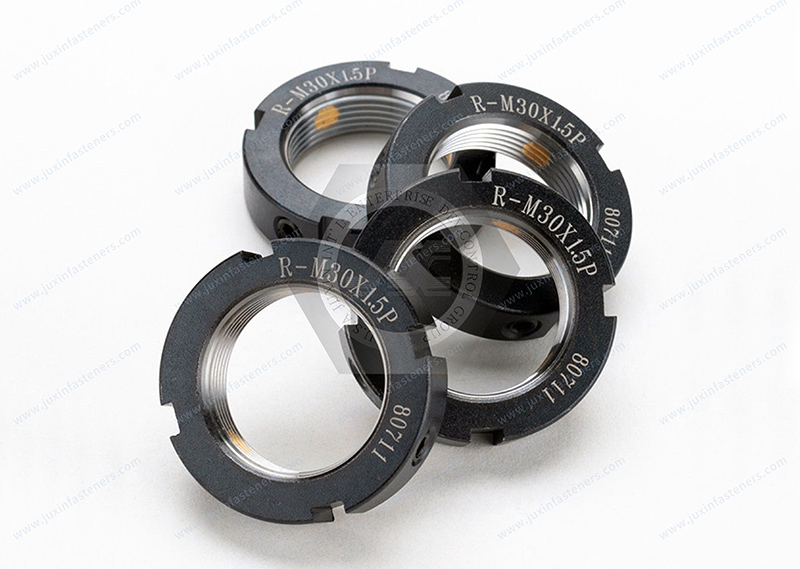

JX-SR type radial precision lock nut

Material: SCM440(42CrMo4) tempered

Inquire Now Next Products

Product Specification

1. JX-SR type radial lock nut locking method is radial three-point locking, its thickness is thinner than other products, suitable for precision lock nut thickness space is limited, can not use other products of the situation.

2. This product can eliminate the need for locking shims and keyways.

3. The assembly procedure is correct and can be reused.

Specification Material: SCM440(42CrMo4) tempered

Hardness: HRC28 °~32 °

Thread accuracy: ISO 4H precision grinding

Plane deflection: M6~M200 : 0.002mm

Thread accuracy: ISO 4H precision turning

Plane deflection: M6~M200 : 0.005mm

Plane deflection : M210~M300 : 0.007mm


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 141-142 Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

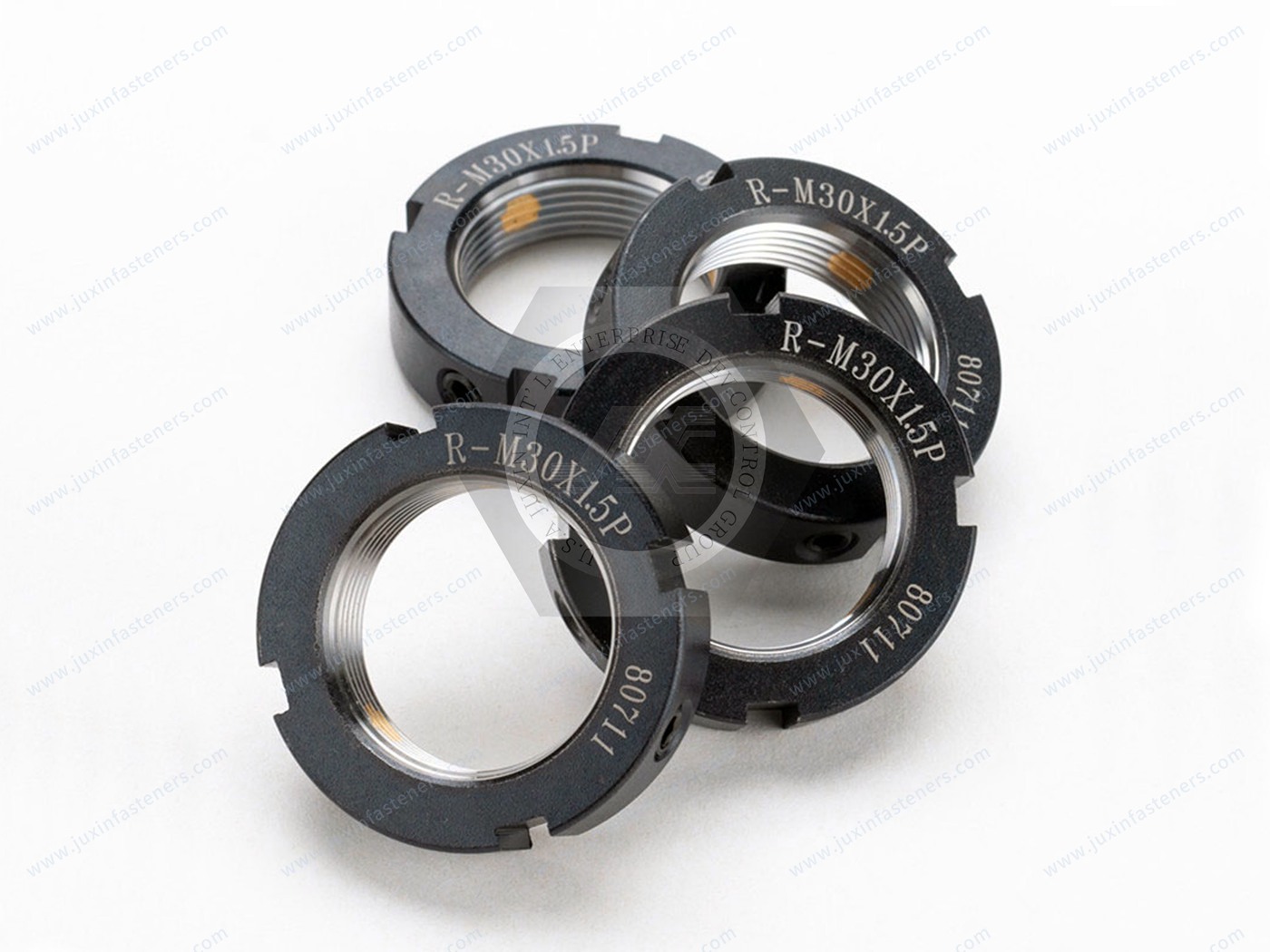

JX-SR type radial precision lock nut


JX-SR type radial precision lock nut
