1. Can work continuously under the condition of no oil lubrication.
2. More suitable for heavy load and low-speed conditions, with good wear resistance and very low friction coefficient.
3. Suitable for reciprocating, rotating, and intermittent motion where oil film is difficult to form.
4. With corrosion resistance and chemical resistance.
5. Suitable for -40℃+300℃ temperature range.
6. Maintenance-free, long service life.

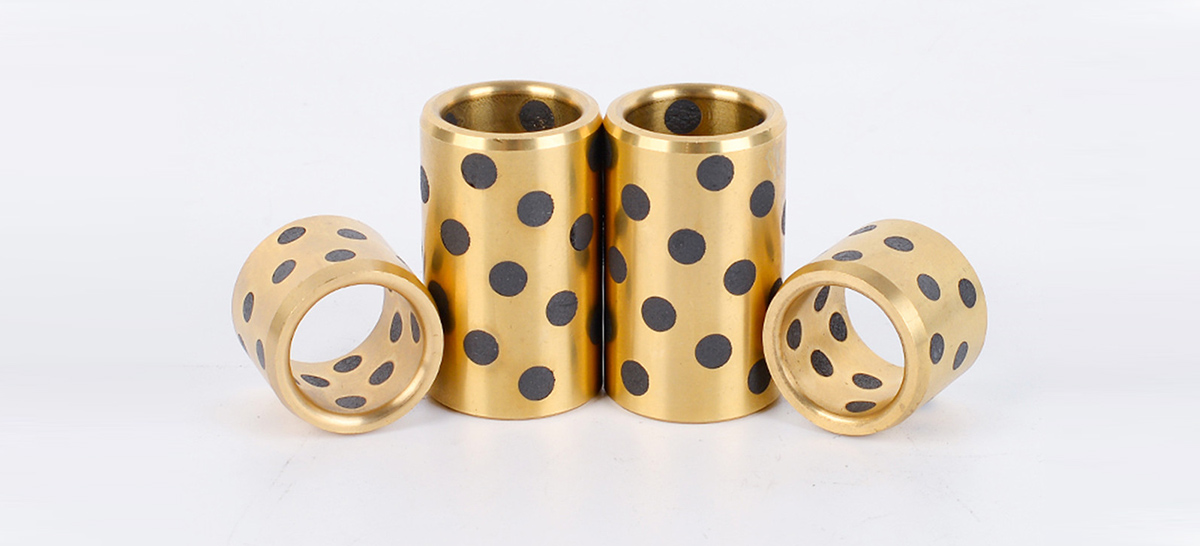

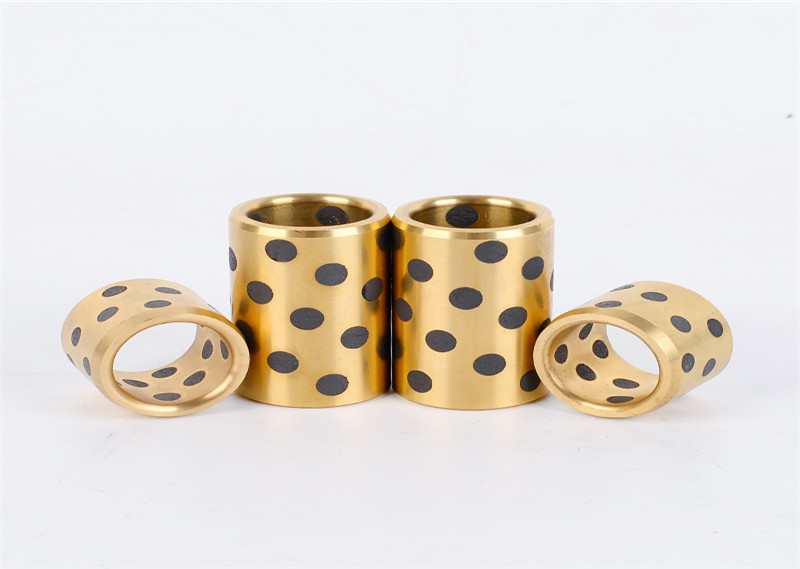

Solid self-lubricating bearing lubricant is specially formulated with graphite, PTFE, molybdenum disulfide, and other wear-resistant material, which has a stable molecular structure, metal matrix can have different chemical resistance and corrosion resistance depending on the metal of selected, solid self-lubricating.
Bearing Height: bearing diameter from the shaft, the shaft is determined, so by loading conditions, load bearing by bearing a high-pressure P (N/mm²) of the decision,
usually bearing the L/D (bearing height/bearing diameter), the ratio in the range of 0.5-3 for the appropriate,
but should pay particular attention to the high load, easy cause deviation contacts, and high-speed situations caused by heat, then L/D is more appropriate to take the following 1.
Bearing wall: plain bearings with rolling bearings compared to the wall thickness less restricted, thin wall thickness of one of its main advantages.
Under normal circumstances, the wall thickness t= (0.05~0.07) d= (2~5) mm.

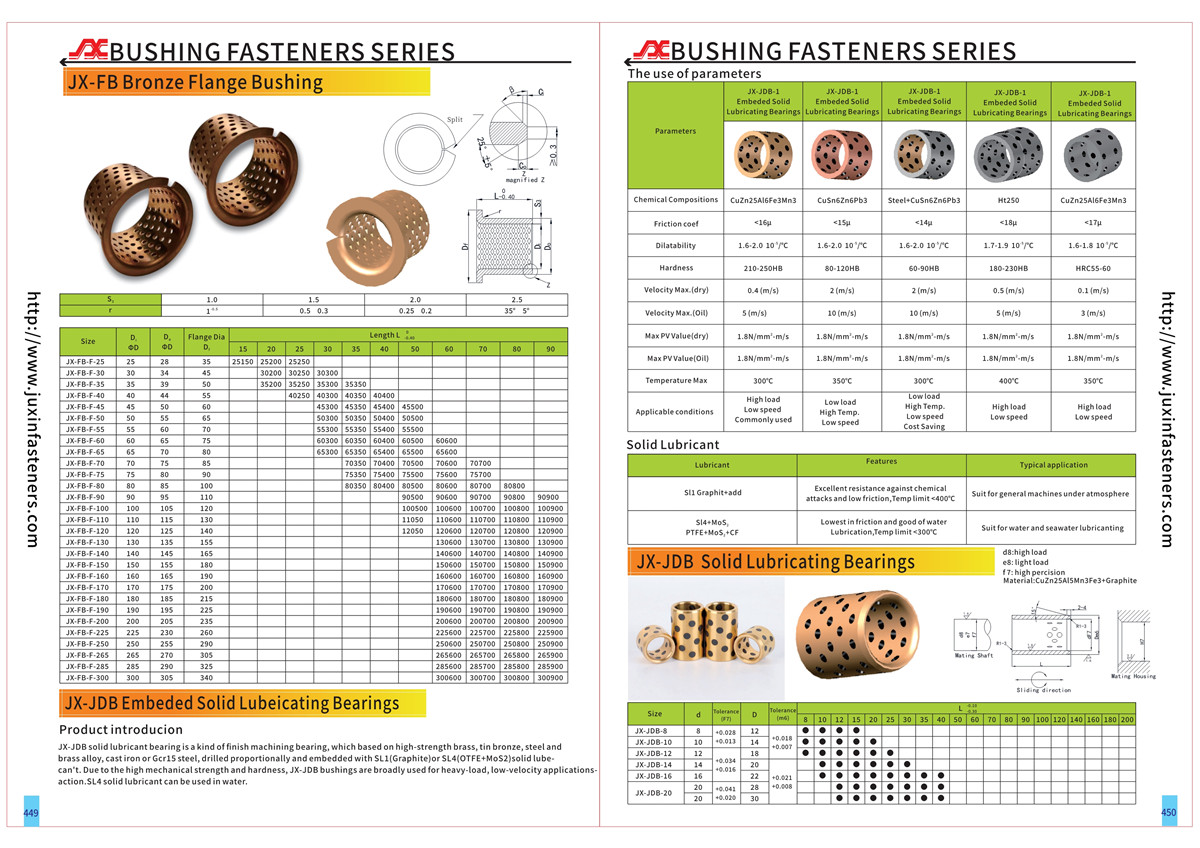

Size Can also be According to the Customer's requirement for manufacturing， please check the detailed specification sheet details PDF, CAD, 449-450 Page See more product details.
