JX-GTLSP Locking Mini Support Post

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - JX-GTLSP Locking Mini Support Post
68b66b0af2fc3

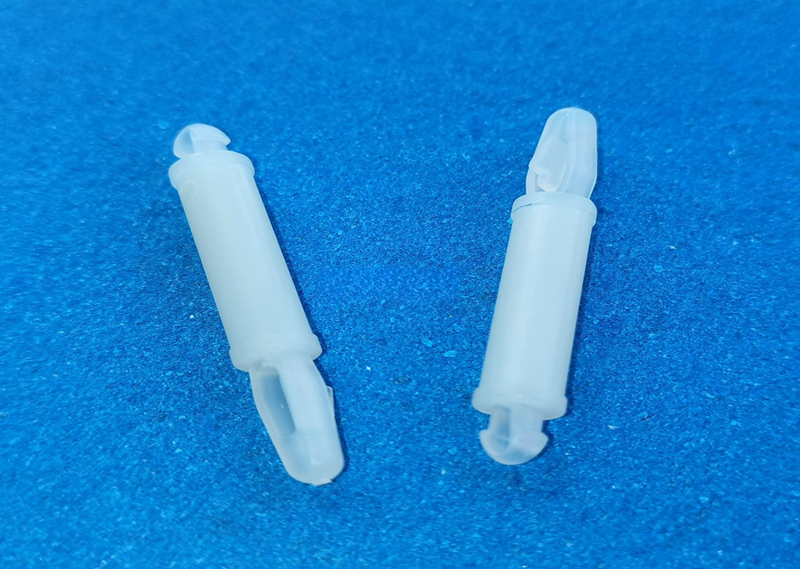

JX-GTLSP Locking Mini Support Post

Name: Locking Circuit Board Support

Material: PC board isolation column JX-GLMSPM type. Qualified NYLON66 (natural color), fireproof level 94V-2, not easy to age, high insulation.

Usage: No tools are required, and loading and unloading by hand is easy. When using, first drill a 3.2mm hole in the base plate, fix the isolation column, and then insert the PC board.

Use: For fixing the PC board.

Top Hole: 3.2±0.08mm

Panel Thickness: 1.8mm

Bottom Hole: 4.0±0.08mm

Panel Thickness: 1.5mm


Inquire Now Next Products

Product Specification

We offer a wide range of PCB accessories, such as Locking Spacers, Nylon Threaded Spacers, and Push Spacers, to make the assembly process simpler and faster.

Our wide range of PCB accessories offers an extensive selection of PCB Spacers, pillars, supports, and standoffs to support, lock, space, or guide the PCB board.

Discover accessories with PCB support for appliances (white goods), electrical cabinets, machinery, or other equipment.

Spacers for snap or self-adhesive mounting. The head of the spacer has removal designs on the head of t, offering different hole diameters, lengths, and plate thicknesses.


ProductPictures

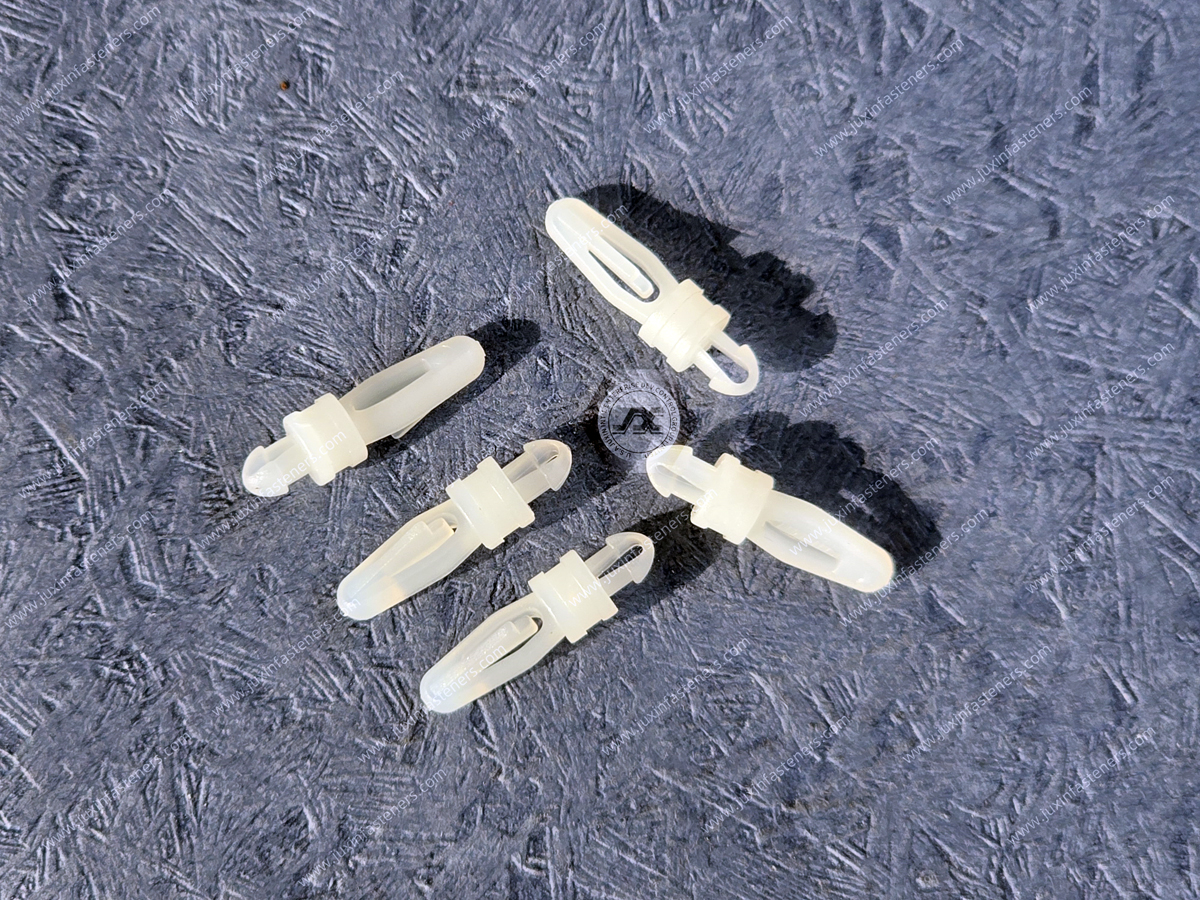

JX-GTLSP Locking Mini Support Post
