JX-DN Square Locking Nuts

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - JX-DN Square Locking Nuts

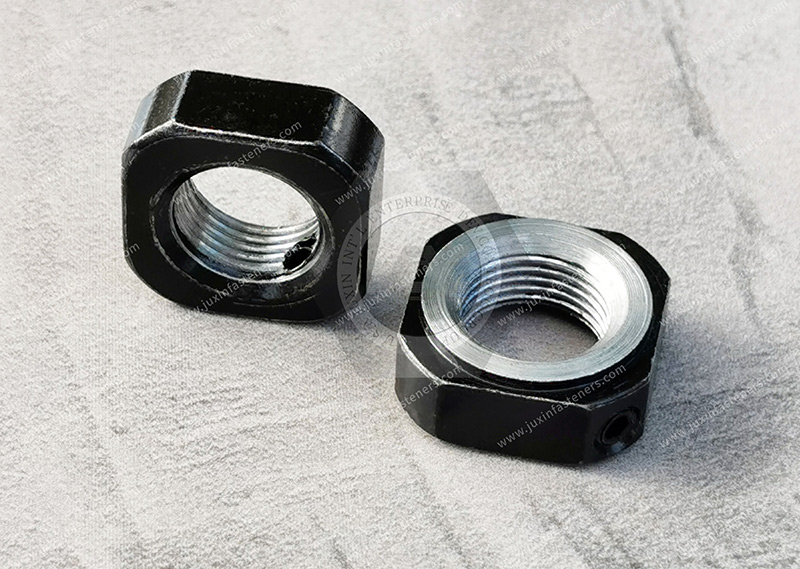

64128113d4eee

JX-DN Square Locking Nuts

Material: DIN C45 quenched and tempered

Inquire Now Next Products

Product Specification

Name: JX-DN square lock nut

Suitable for ball screw bearing support housings. The JX-DN type precision lock nut is square, and its fixed copper is radially fixed. The internal thread and end face are processed at the same time, which can ensure the accuracy of assembly. Eliminates the need for locking washers and keyways. The assembly procedure is correct and reusable.

Material: DIN C45 quenched and tempered

Standard hardness: HRC28°~32°

Thread accuracy: ISO 4H

Plane deflection: 0.005mm

Surface treatment: blackened by sandblasting


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 137-138Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

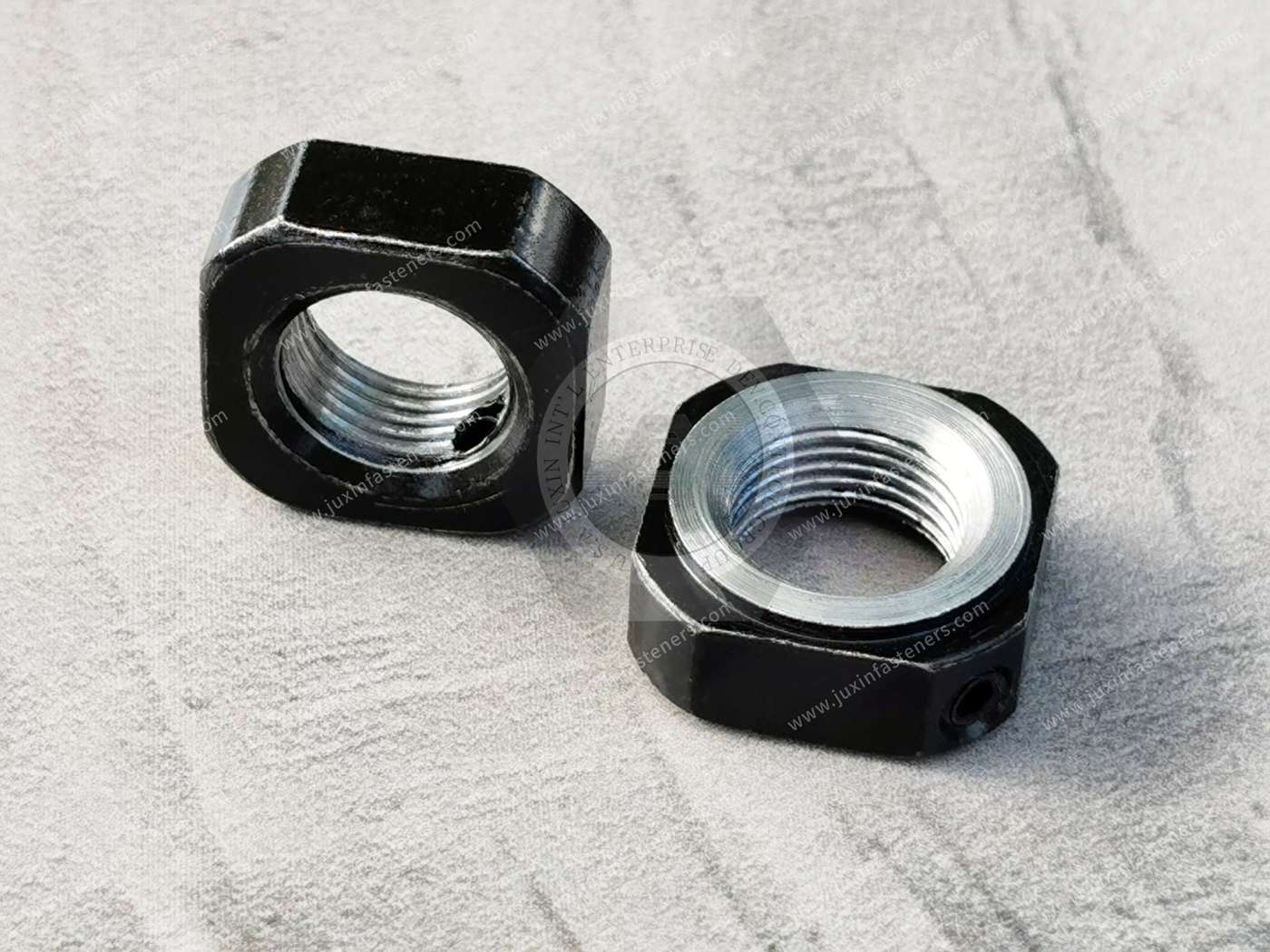

JX-DN Square Locking Nuts


JX-DN Square Locking Nuts
