Incline Knurled nut JX-NZFS

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Incline Knurled nut JX-NZFS
681f7eaebf491

Incline Knurled nut JX-NZFS

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Inquire Now Next Products

Product Specification

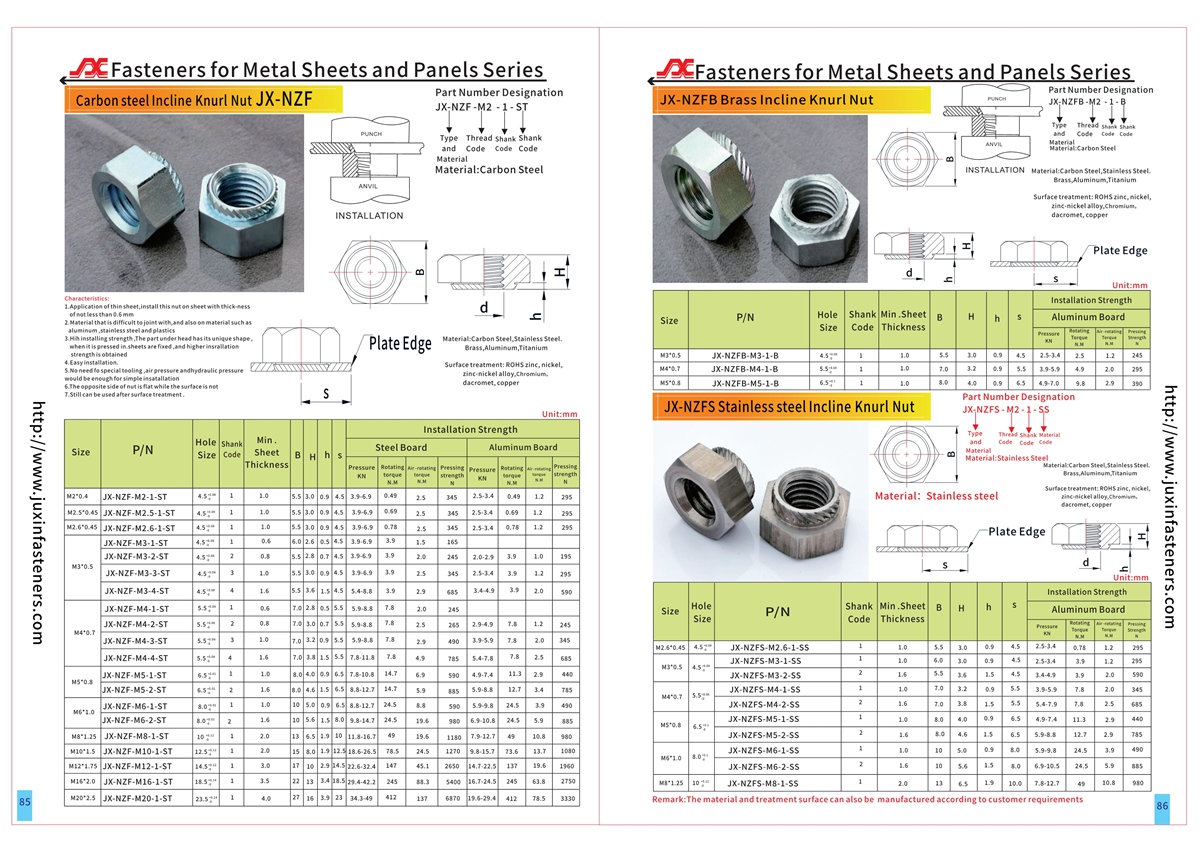

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 85-86Page See more product details.


1. For places with thin plate thickness, install this nut on the base metal with plate thickness greater than 0.6MM

2. For materials that are difficult to connect, this nut can be installed not only on iron and steel, but also on aluminum, stainless steel, and plastics that are difficult to weld.

3. Higher installation strength. The head of the nut shows a unique shape. After the head is pressed in, the base material is fixed, thereby obtaining higher installation strength.

4. Simple installation, no special tools are required, and it can be simply installed by using the existing air pressure and oil pressure devices.

5. The reverse side of the nut is flat, but the surface is not.

6. Even after surface treatment, it can still be used.

Incline Knurled nut JX-NZFS

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

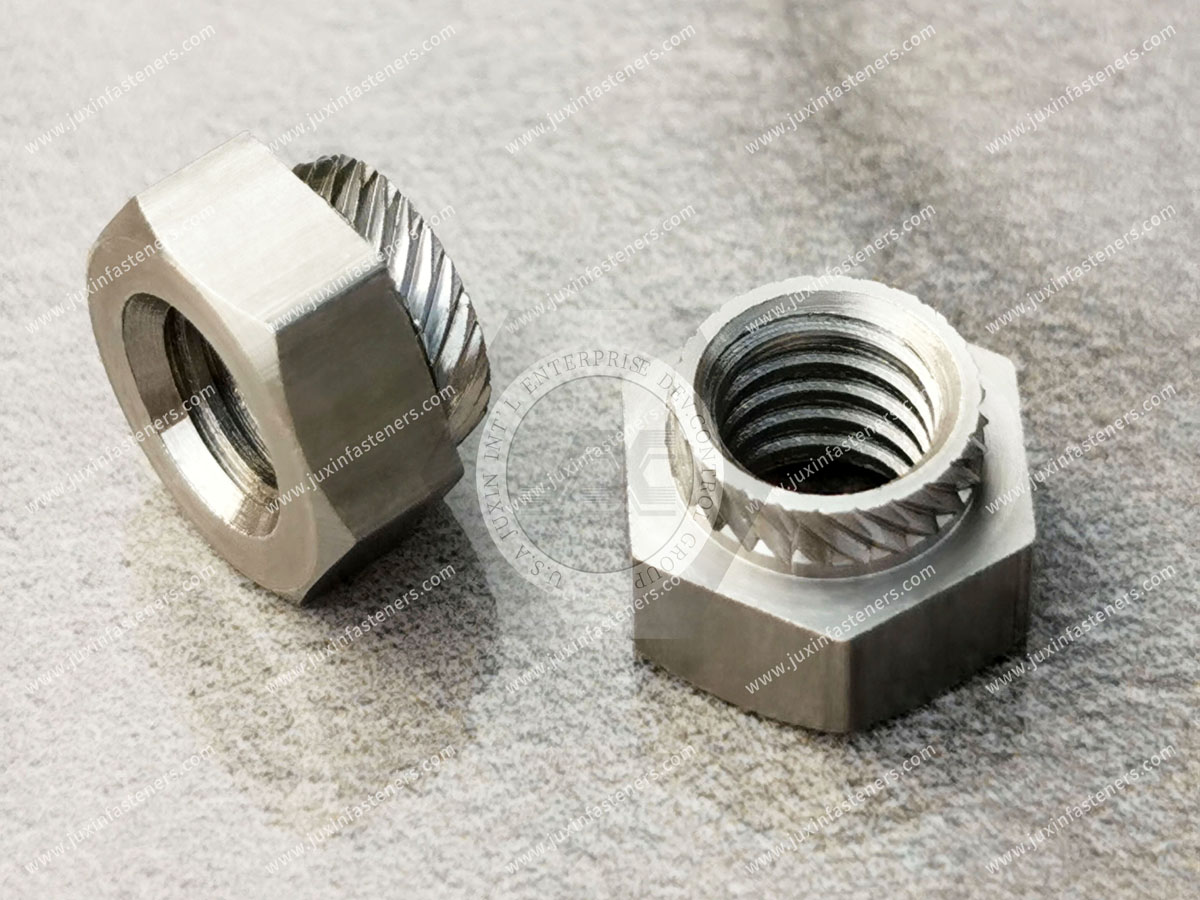

Incline Knurled nut JX-NZFS

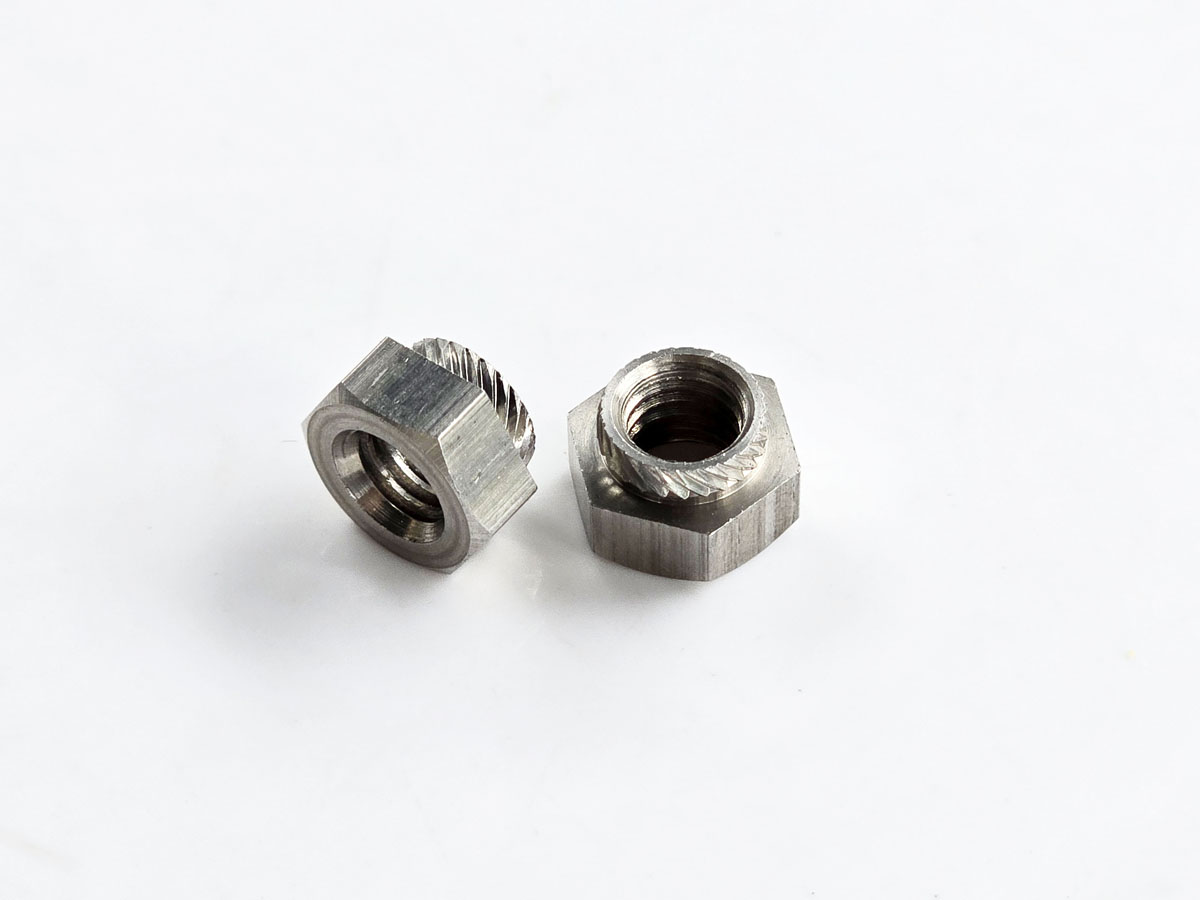

Incline Knurled nut JX-NZFS

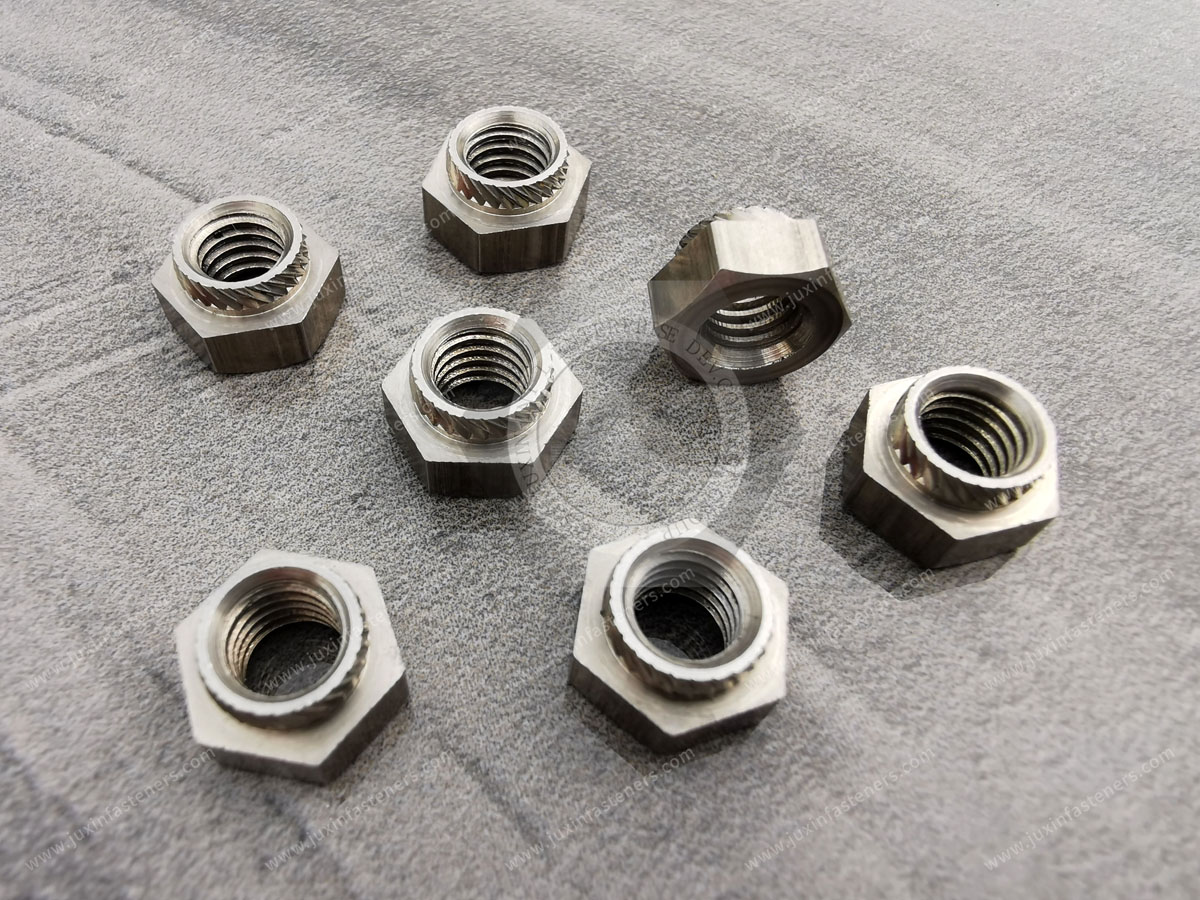

Incline Knurled nut JX-NZFS
