Hexagon Weld Nuts With Flange

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Hexagon Weld Nuts With Flange
6418226e8b4b5

Hexagon Weld Nuts With Flange

Material: Carbon steel

Standard: GB /T 13681.2 - 2017, Q 364, Q 366

Inquire Now Next Products

Product Specification

Product name: Hexagon Weld Nuts With Flange

Material: 10B21

Specification: M6、M8、M10、M12、M14

Standard: GB13681.2、ISO 21670、JIS B 1200-2007、QC _T 872-2011、Q36410

Class: 5, 6, 8, 10 Class

Material: carbon content is not more than 0.25%, and the carbon equivalent (CEV) determined by the following formula is not more than 0.53%; CEV=C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu) /15, if the nut is required to be quenched and tempered, the hardness should be equal to or less than 300HV; free-cutting steel is not allowed; if the material grade needs to be specified, it should be agreed by supply and demand.

Surface treatment: Nuts without coating should be delivered; during transportation or storage, nuts without a coating may be corroded, so the manufacturer should take anti-corrosion measures that will not weaken the welding performance of the nut.


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 151-152 Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

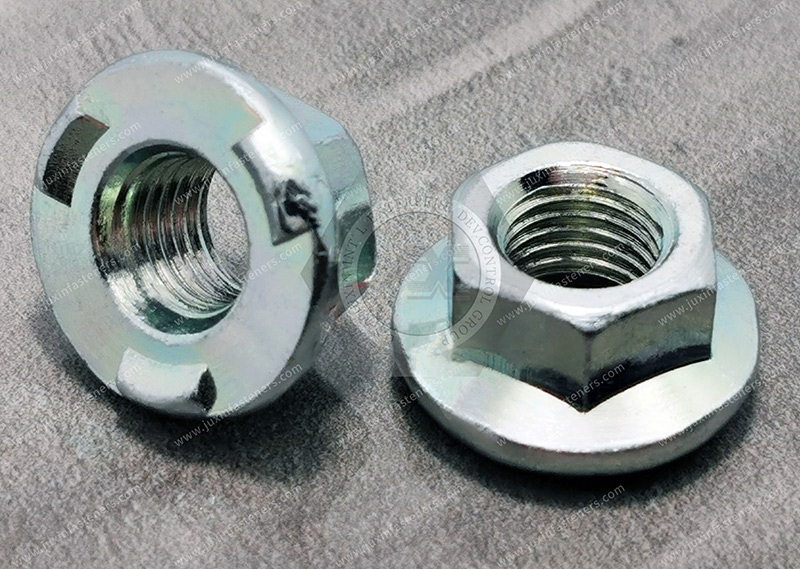

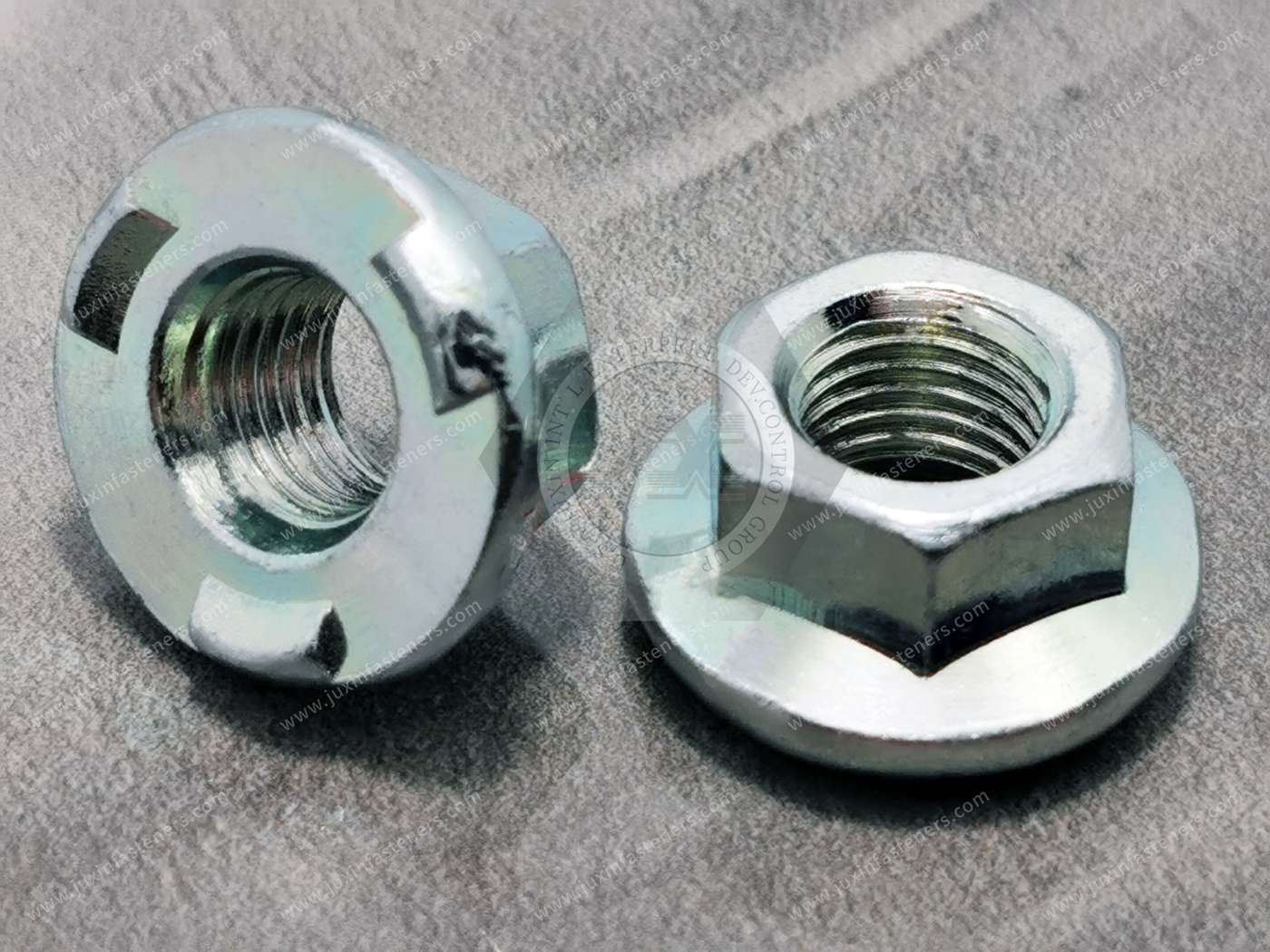

ProductPictures

Hexagon Weld Nuts With Flange


Hexagon Weld Nuts With Flange
