Heat Sink Spring Mount Rivet JX-GHSR-1

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Heat Sink Spring Mount Rivet JX-GHSR-1
69a4320871ab7

Heat Sink Spring Mount Rivet JX-GHSR-1

Heat Sink Spring Mount Rivet

Material: PA66 UL94V2 (GMS-01); Steel Nickel Plated (GMS-19)

Heat Sink Hole: Inserts through a (3.18-4.0mm) Hole

Chassis Hole: Snap-Lock into a (3.0±0.08mm) Hole

Spring Mount Rivet

Heat Sink Spring Mount Rivet, Spring Mount Rivet

Special Spacer

These special spacers are used to support a wide range of applications, especially when conventional fastening solutions reach their limits.


Inquire Now Next Products

Product Specification

Push-In Rivets - Heat Sink In stock Manufacturing

Heat Sink Rivets are spring-mounted. They are used to fasten a heat sink to a processor chip on a PCB. The metal spring provides continuous pressure to the heat sink until the thermal adhesive cures.

Our range has two options. One has a Chrome-Plated Steel spring, and the other has a Stainless Steel spring. The Stainless Steel option can also be installed using a cross-head screwdriver.

Material: Nylon 6/6

Color: Natural

UL94 V2 Material Flammability Rating


ProductPictures

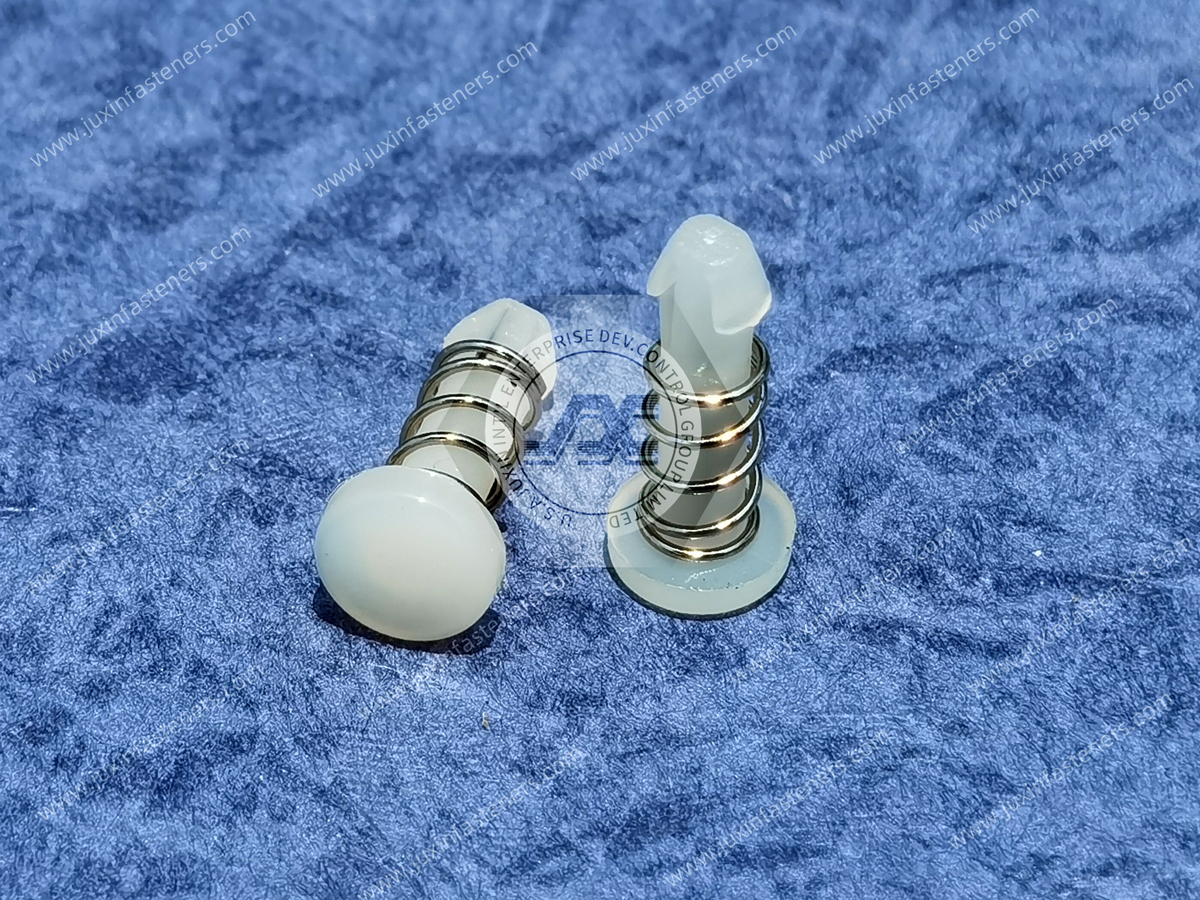

Heat Sink Spring Mount Rivet JX-GHSR-1
