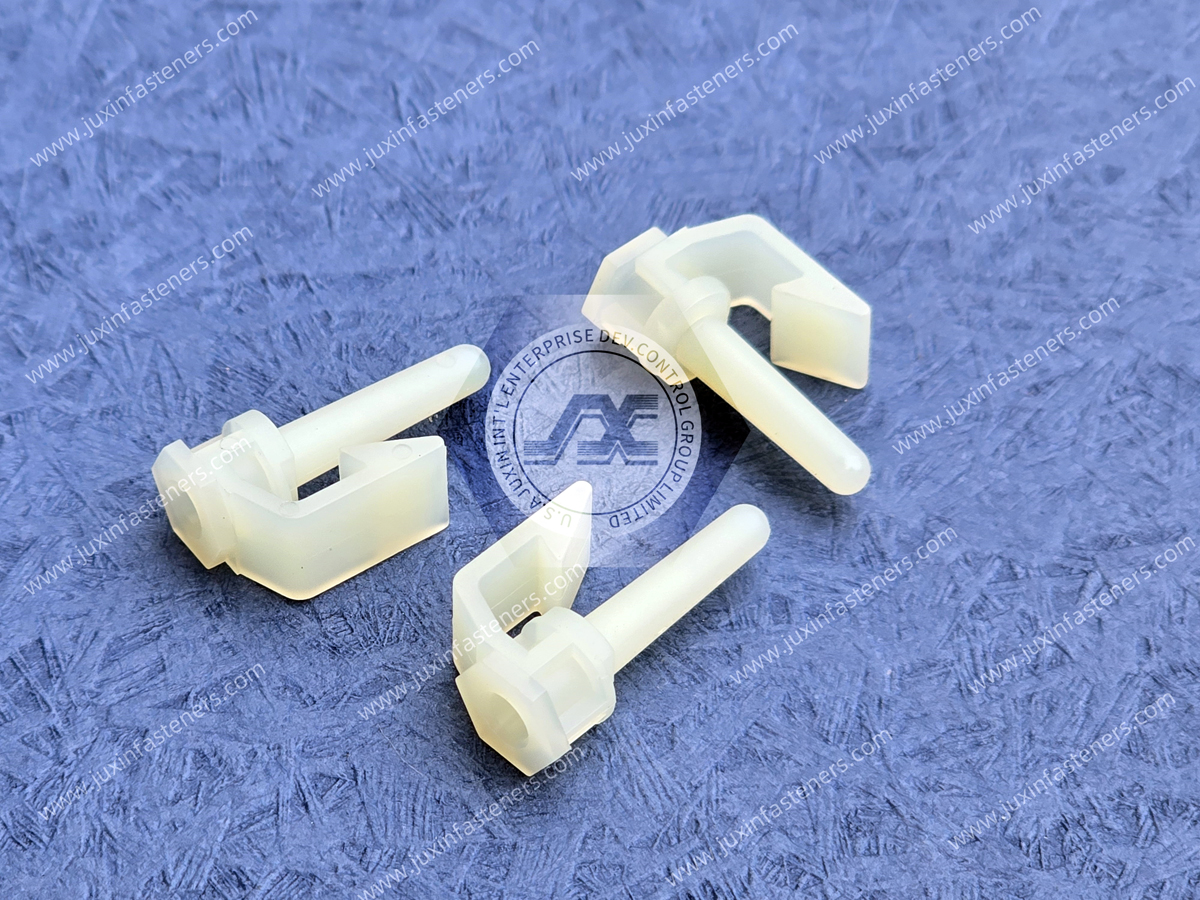

Edge Holding Support JX-GTEHCBS

Nylon Edge Holding Support

Material: PA66 UL94V2 (GMS-01)

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: For Metal #6 (Type B)

Self-Tapping Screw

PCB Support - Spacer - Screw Mount, Edge Locking, Snap In, Screw Mount

Edge Holding Support

PCB Support - Spacer - Locking Arrowhead, Edge Locking, Snap In, Releasable, Screw Mount

Special Spacer

These special spacers are used to support a wide range of applications, especially when conventional fastening solutions reach their limits.


Inquire Now Next Products

Product Specification

PCB Edge Locking Support - Screw Mount

 In stock

Edge Locking Supports provide a secure hold on the side of the PCB, allowing for easy removal and replacement. Screw mount supports are very safe and reliable. These mount with a self-tapping screw.
