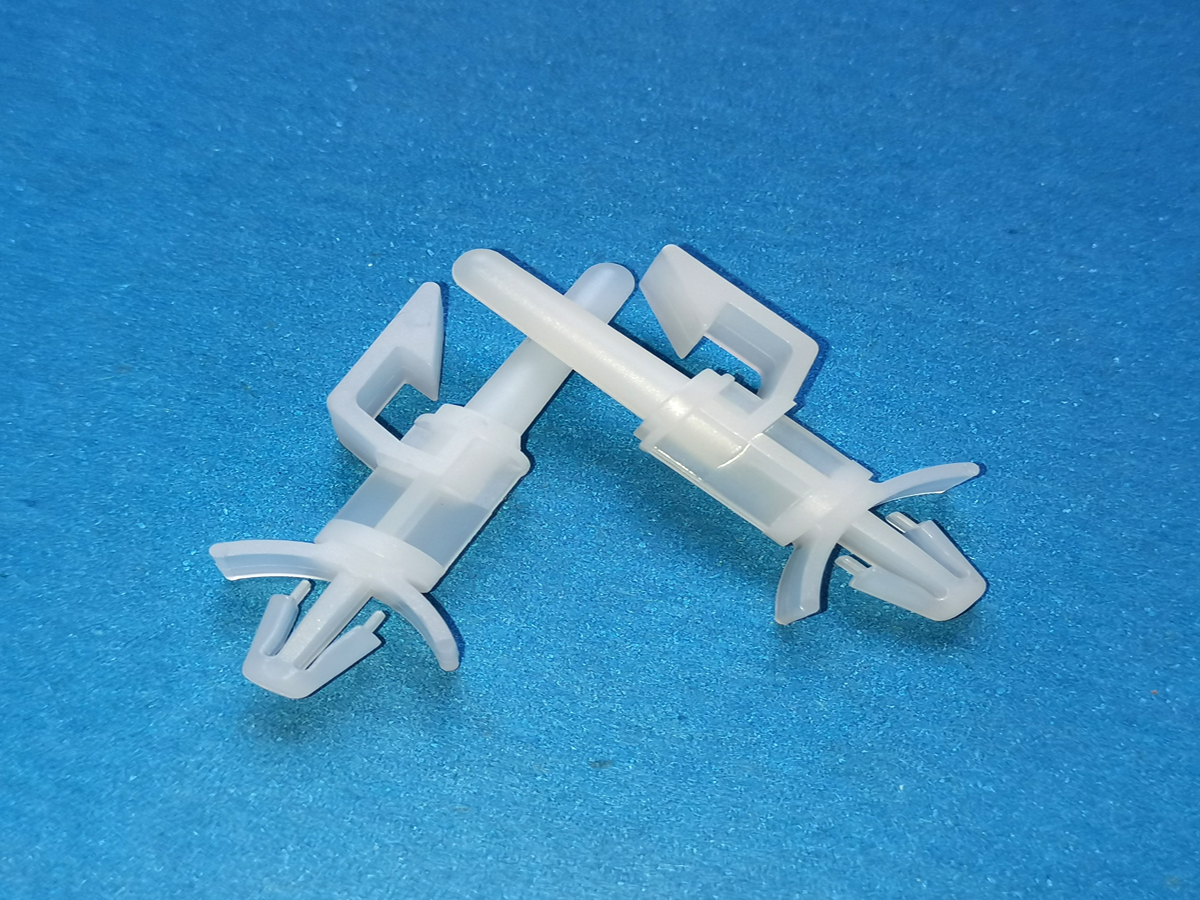

Edge Holding Circuit Board Support JX-GEHCBS

Nylon PCB Supports - Edge Holding

Edge-holding circuit board support without a nose is supplied in natural UL 94 V2 nylon 6/6, RMS-01 material. It prevents circuit boards from deflecting into the sides.

Applications and Benefits of Edge Holding Circuit Board Support, No Nose, Supplied in Natural UL 94 V2 nylon 6/6, RMS-01.

Provides good support to circuit boards.Prevents circuit boards from deflecting into sides.


Inquire Now Next Products

Product Specification

Material: UL-qualified NYLON 66 (natural color). UL 94V-0 material is available for unique customization.

Fireproof level: 94V-2, not easy to age, high insulation.

Usage: No tools are required, and loading and unloading by hand is easy. When using, first drill the base plate, fix the isolation column, and then insert the PC board.


ProductPictures

Edge Holding Circuit Board Support JX-GEHCBS
