Dual Locking Circuit Board Support JX-GSP1

Name: Dual Locking Circuit Board Support

PCB Support - Spacer - with Locking Two Prong

PCB Support - Spacer, Locking Arrowhead, Locking Teardrop, Locking Two-Prong, Board Support Snap Lock, Dual Side Lock-In

Material: UL-qualified NYLON66 (natural color), fireproof grade 94V-2, sound insulation, not easy to age.

Usage: First, drill the base plate, push the isolation column upward from the bottom to fix it, and then fix the PC board.

Features: No tools are required to fix the PC board; it is easy to disassemble when replacing or repairing it.


Inquire Now Next Products

Product Specification

Dual Locking Circuit Board Support

Our range of dual locking circuit board support  for a top and bottom hole diameter of 3.18-3.86mm and a top and bottom panel thickness of 1.57mm dual locking circuit board support

Natural Nylon 66, UL94-V2, RoHS compliant

Top Hole and Bottom Hole size:3.18- 3.86mm

Top and Bottom Panel Thickness: 1.57mm

These spacers are our most popular style. Both ends easily snap in by hand and lock into place. Available in many different styles for different spacer lengths, hole diameters, panel thicknesses, and materials


ProductPictures

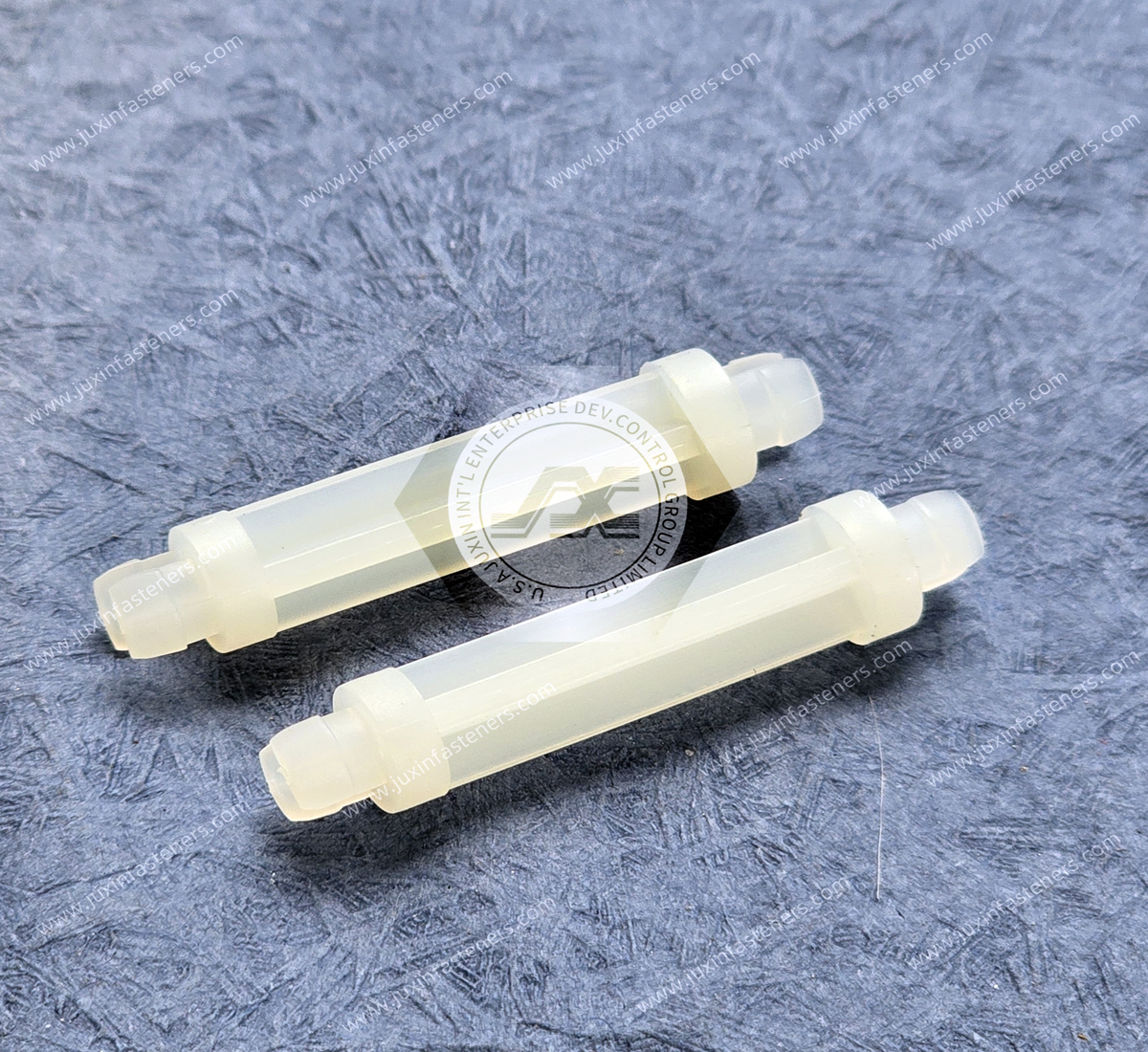

Dual Locking Circuit Board Support JX-GSP1
