Disc Spring Washers NFE25510 - Bowl Washers
A high tensile lock washer for use with mating bolts, suitable for high-strength hard joints.
Name： Disc spring washers NFE25510
Main Material: S60C.65Mn or SUS304.316 (A2.A4) and other special customized materials.
Surface treatment: Stainless steel hardened and polished natural color or spring steel phosphate black, mechanically zinc plated, nickel plated, Dacromet coated treatment. (Manufacturing requirements: 42-52HRC)
Common specifications: M5, M6, M8, M10, M12, M14, M16, M18, M20, etc.
Mil. Spec. Belleville Disc Springs. These stainless steel springs meet MIL-W-12133 and are more corrosion-resistant than steel springs. They’re used on shafts, bolts, and the ends of valves to maintain tension and separate components. Unlike Belleville washers, they return to their original height once the load is removed.
Deflection is the distance a spring compresses under load. Flat load is the load at which the spring is completely compressed.
Springs may be stacked to increase working load and deflection. In a nested stack, the working load is multiplied by the number of springs used, while deflection remains unchanged. In an inverted stack, deflection is multiplied by the number of springs used, while the working load remains unchanged. In a nested and inverted stack, both load and deflection are increased.

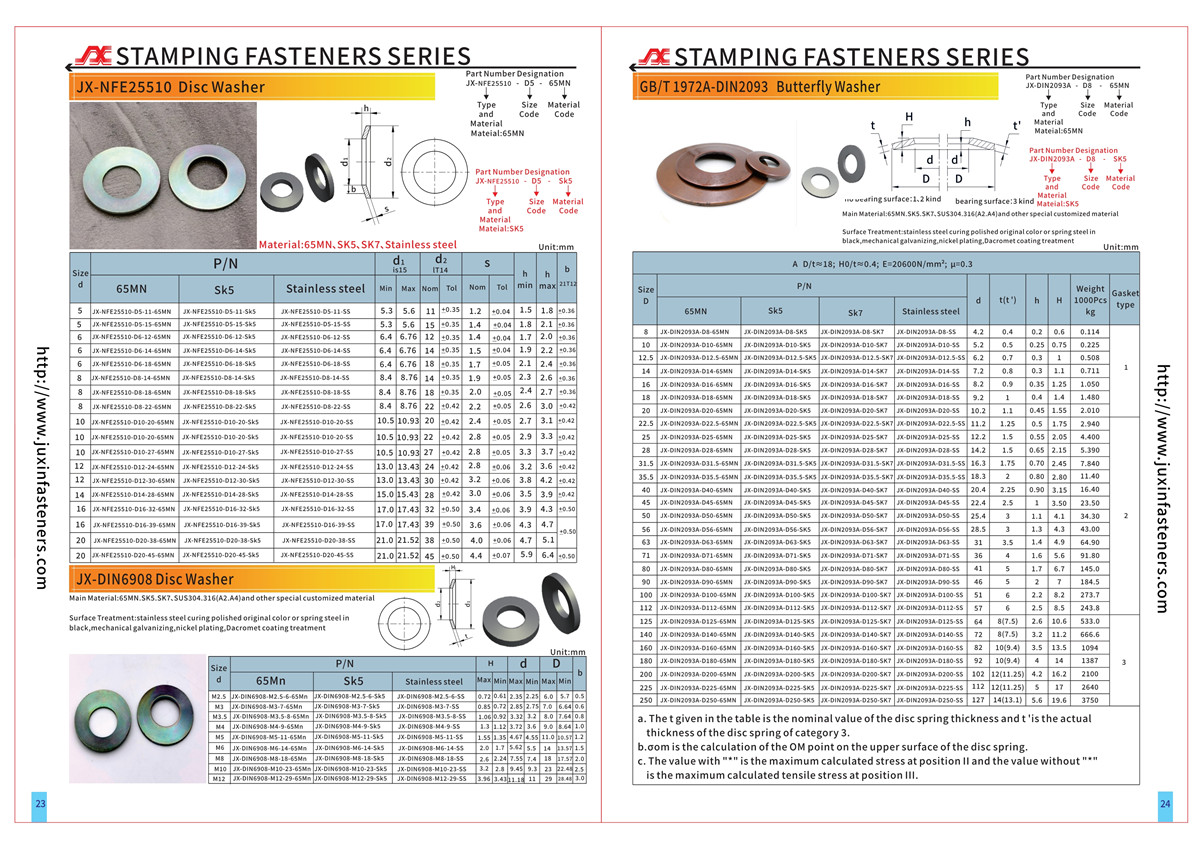

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 23-24Page See more product details.
