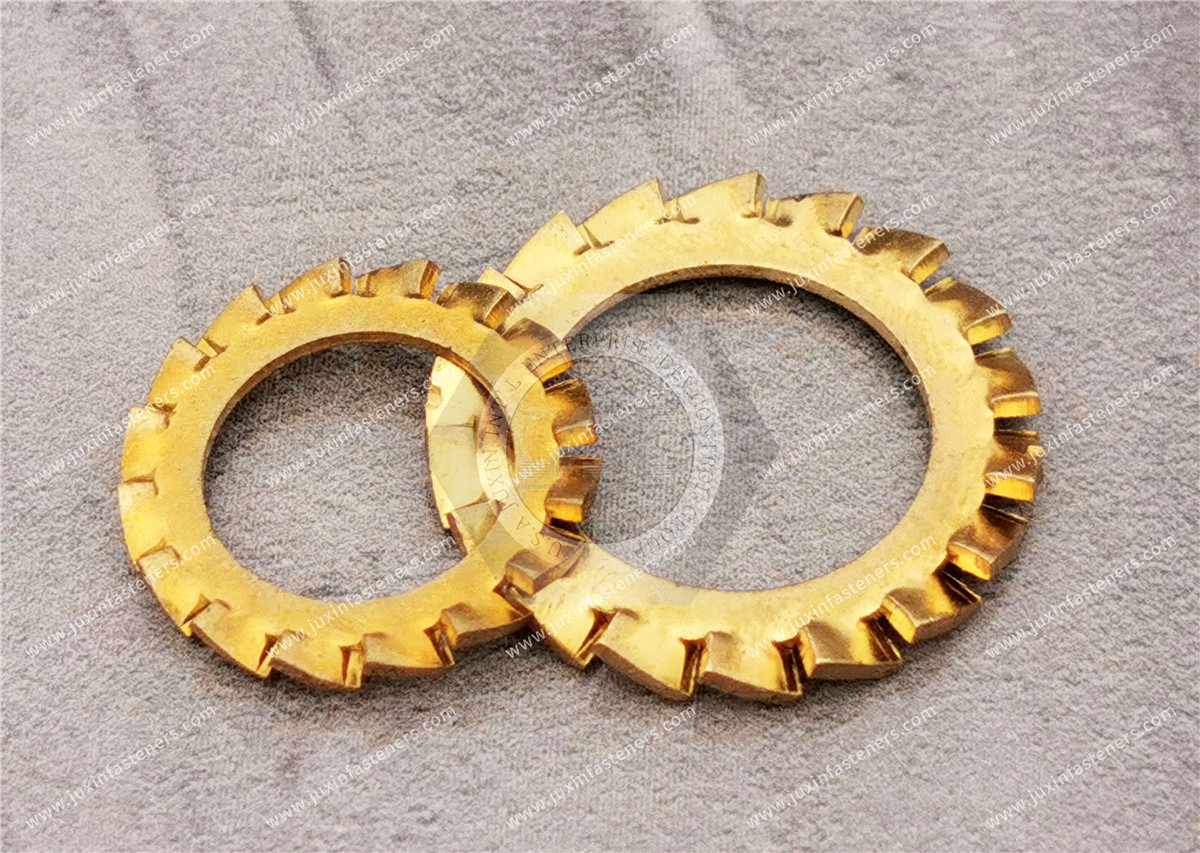

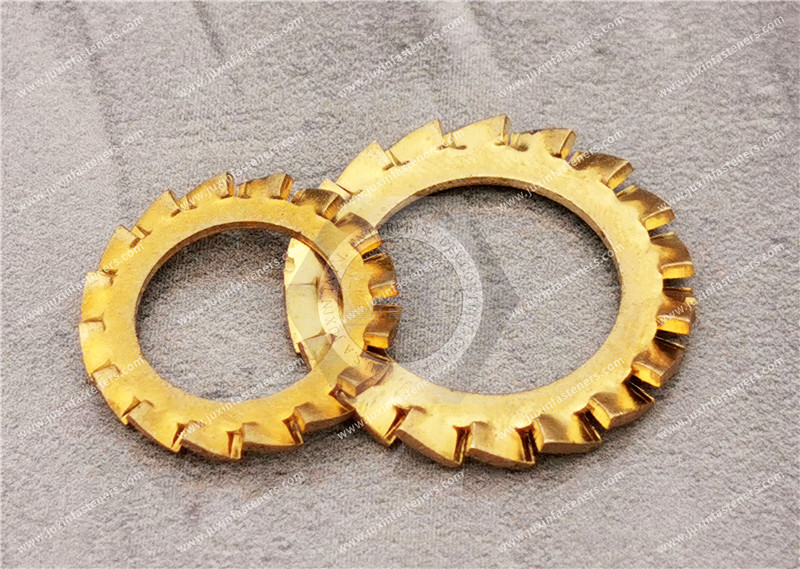

External tooth lock washer is a kind of washer commonly used in the connection of mechanical parts, its main role is to realize the tight connection between the parts by locking. External tooth lock washers are usually made of high-strength materials, such as stainless steel, aluminum alloys, or copper alloys, with good mechanical properties and corrosion resistance. The principle of external tooth lock washers is to utilize their special geometry to achieve locking. The outer edge of the external tooth lock washer is usually made in the shape of a gear, When embedded in the gap between the components, the gear shape of the outer edge will automatically wrap around the surface of the components, thus exerting a certain amount of compressive stress, the components will be tightly connected together. The special geometry of this washer gives it excellent locking capability. Compared to conventional washers, external toothlock washers lock the components more effectively, thus preventing relative movement and vibration between the components. In addition, due to their high-strength materials and excellent mechanical properties, external toothlock washers are able to maintain their locking properties over a long period of time, resulting in long-term reliability. External toothlock washers are a very practical mechanical joints, widely used in various machinery, automotive, aerospace, and other fields. Its excellent locking ability and long-term reliability make it one of the most important materials in the field of mechanical connections.
① h ≥ 2t
② material see "relevant material standards and grades", material grade selected by the manufacturer; hardness: 350 ~ 425 HV10
Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 7-8Page See more product details.
